    Where to find breakdown skematic inside transaxle case
    Where can I get a breakdown skematic of the inside of the transaxle case for a John Deere Sabre Lawn tractor 15.538 automatic and accompanying parts list. I would also like some information on where I could purchase these parts. I need the part which comes out of the top of the transaxle assembly to which is screwed the fan, the sheave, etc.

    Any information would be appreciated.

    Thanks,
    whouser
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Sep 30, 2009, 07:18 PM

    Hi,
    I cannot say it will be satisfying as few parts are available through Deere at:
    John Deere - Parts Catalog
    And enter 1538 and pick the Europro. You may have a bit more luck with TuffTorq at:
    https://www.tufftorqservices.com/Env...tml/login.html
    Peace,
    Clarke

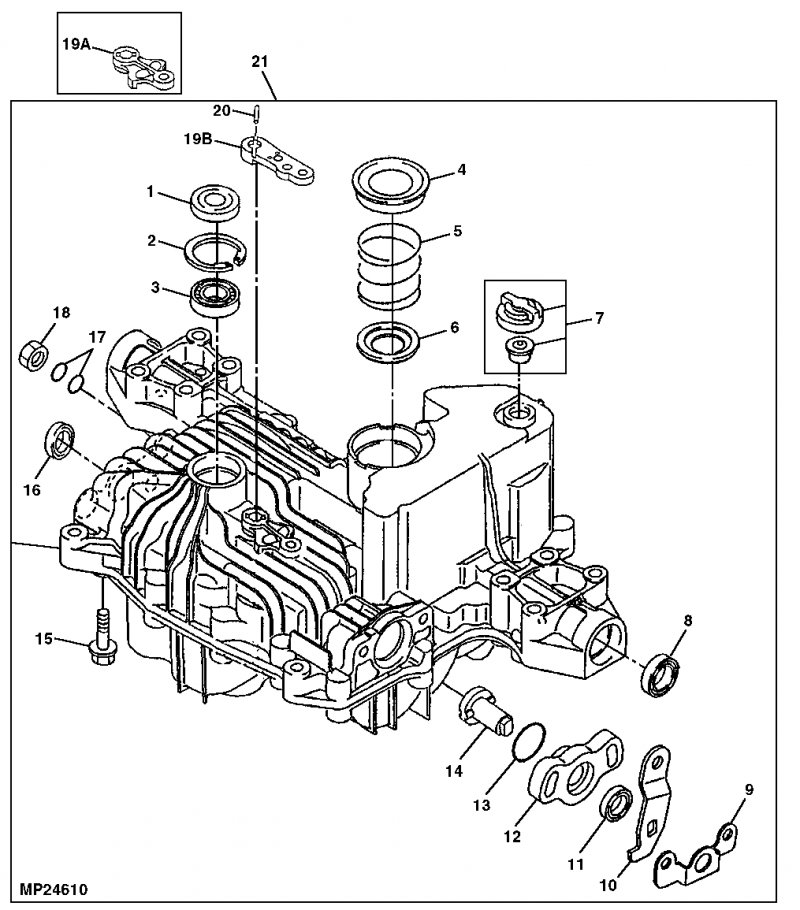

    Oops Forgot the picture
    Attached Images

    whouser's Avatar
    whouser Posts: 7, Reputation: 1
    New Member

    #3

    Oct 1, 2009, 01:31 PM
    Thank you for the drawing and the contacts for purchasing the parts.

    Do you happen to have the accompanying parts list?

    Thank you very much,
    whouser
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #4

    Oct 1, 2009, 03:08 PM

    Hi,
    Pictures are easy; take that JD Parts link, type 1538, pick catalog #2676, Sectional Index, Power Train (hydro) and click on the selection to bring up a small picture to right. Go to the Print selector dropdown box and choose Illustration and Keylines. Maximize window and there you have it.
    Peace,
    Clarke
