    What is the idler pulley number on mower deck for a scotts 1642h
    I need the idler pulley number for the scotts1642h, the mower deck.
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Aug 22, 2013, 01:27 PM
    Hi,

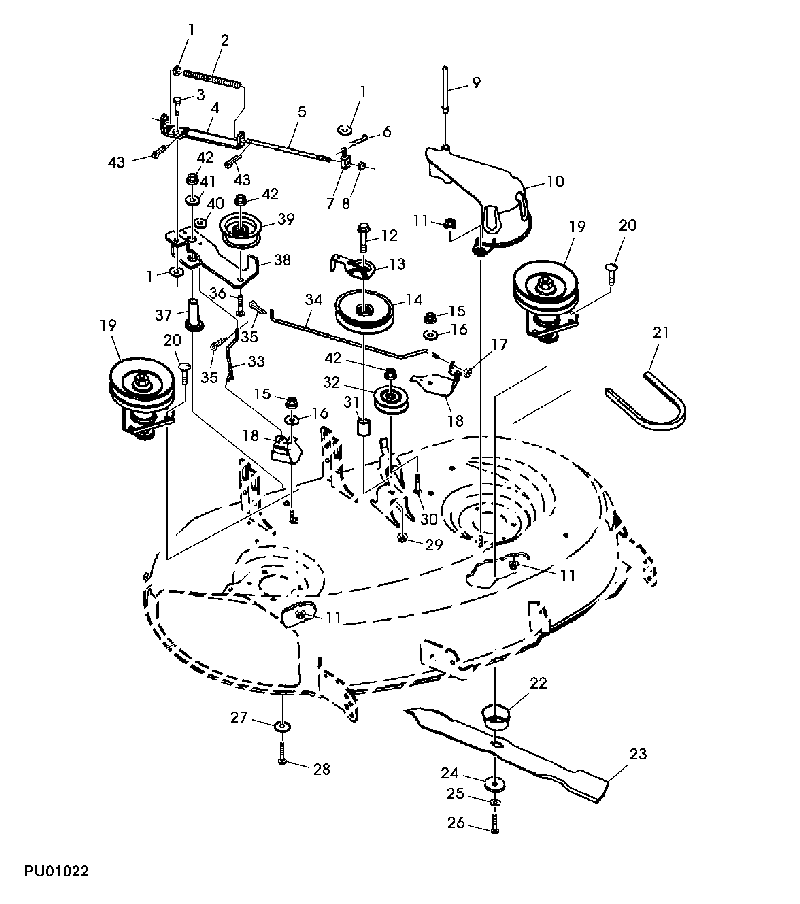

    Well, at least you gave the brand and model, though there are 3 idlers. Picture attached. Part numbers are:
    14 #AM121108
    32 #AM130307
    39 #GY00054
    Peace,
    Clarke
    PS I can email you the owners manual if you want it. Too large to post here as it is a few Mb.
    Attached Images
