    Need a routing diagram for john deere stx 30 deck belt
    I am in need of a deck belt routing diagram for a john deere STX30 riding mower. I know this is a tricky one and I can't seem to figure out how it came off when it broke
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Jul 26, 2010, 01:03 PM
    Hi,
    The Deere directions have the STX series with yellow decks in the official document and it exceeds the size limit here. I will give the link:
    STX30 & 38 yellow decks

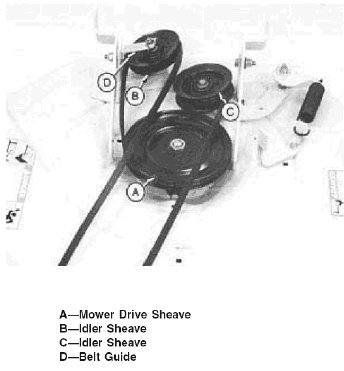

    And a picture is attached also.
    Peace,
    Clarke
    Attached Images

    jim dieter's Avatar
    jim dieter Posts: 1, Reputation: 1
    New Member

    #3

    Aug 16, 2012, 05:50 AM
    I've got the belt on like the diagram as near as I can tell and the blade is turning backwards helppppppppppppppppppppp.dieter519@hotmail.com or pops519@hotmail.com
    swf's Avatar
    swf Posts: 1, Reputation: 1
    New Member

    #4

    Nov 25, 2012, 02:00 PM
    Reply to jim, I had the same trouble. The diagram does not show the twist or figure 8 patern you need to put in the belt where the belt goes over the engine pully.
    dameonneal09's Avatar
    dameonneal09 Posts: 1, Reputation: 1
    New Member

    #5

    May 25, 2013, 05:17 PM
    I have also done the same on this diagram exact mowing deck off john deere stx30 and my blade goes backwards what is the problem now please help my yard is getting out of control too much to mow with just a push mower my email is dameonneal09@yahoo.com and the other email is waylonneal20107939@yahoo.com
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #6

    Jun 8, 2013, 06:51 PM
    Hi,
    Try looping the belt into a figure 8 such that the two sides do not touch.
    Peace,
    Clarke
    Canni's Avatar
    Canni Posts: 1, Reputation: 1
    New Member

    #7

    Jul 15, 2018, 09:43 PM
    Can you send be belt diagram for stx30 too please.. caleb.bobbitt@gmail.com Thanks and much appreciated.
