    Old Tecumseh Snow Blower Engine Parts
    Does anyone know where I can find parts for my Tecumseh snow blower engine? I cannot find the model number anywhere on it and I am kind of lost at this point. I looked on the web with no luck.

    The snow blower itself was built in 1975 but the engine was replaced sometime in the 80’s. She still runs pretty well, but she is really loud (like I have to wear ear plugs loud!)

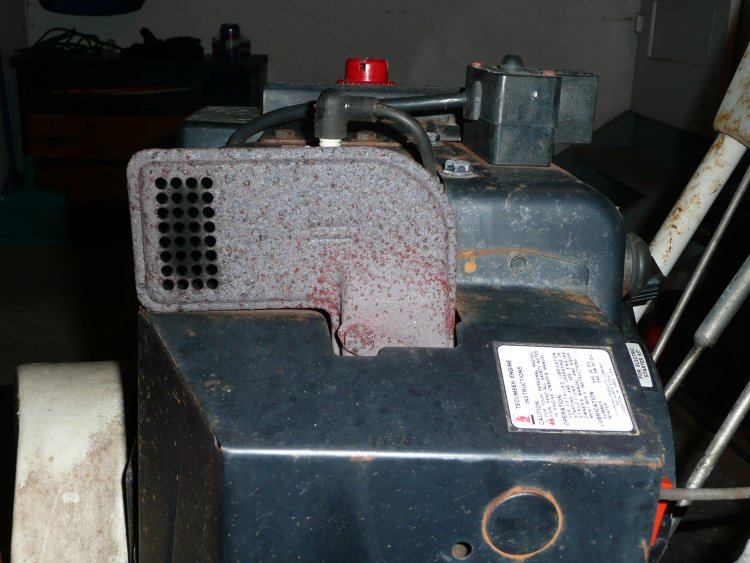

    It is pretty obvious that the muffler needs to be replaced. If I cannot find the “right” part, will any muffler that fits work? Please see the pictures below where you can clearly see how rusty that old muffler is…

    Thanks - John
    Attached Images

    codyman144's Avatar
    codyman144 Posts: 544, Reputation: 31
    Senior Member

    #2

    Jan 10, 2009, 09:58 AM

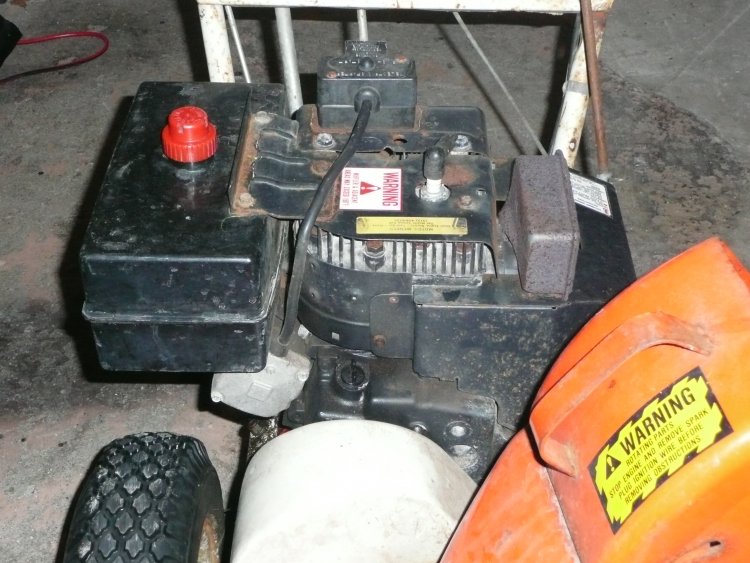

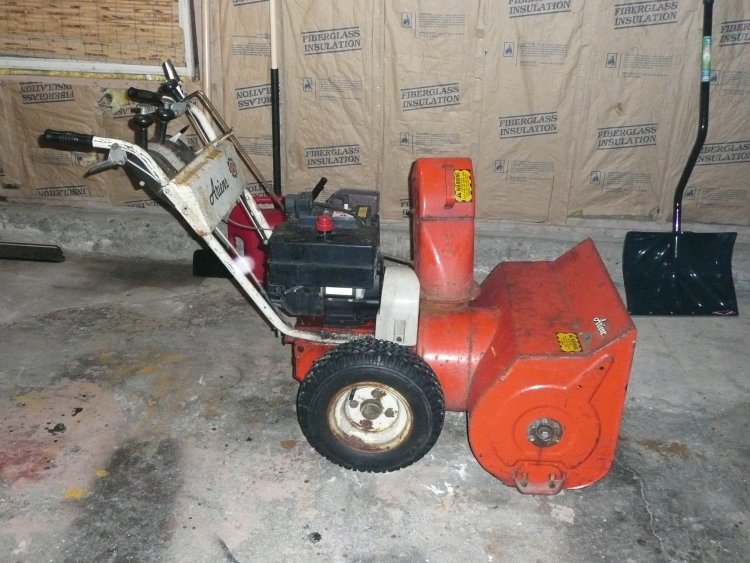

    A couple more picks
    Attached Images

    jchild40's Avatar
    jchild40 Posts: 15, Reputation: 1
    New Member

    #3

    Jan 11, 2009, 06:45 AM

    Do you know what the hp is? There is a very good chance that you could get a muffler by choosing the one for a Tecumseh engine of the same hp.

    The only risk would be that the bolts would not line up. Sine you know the year it was made, there must be customer service phone number to help or a local small engine shop.
    ballengerb1's Avatar
    ballengerb1 Posts: 27,379, Reputation: 2280
    Home Repair & Remodeling Expert

    #4

    Jan 11, 2009, 06:54 PM

    I would just remove the muffler and take it into a shop. The guys will know pretty quick if they have , or can get, anything that will fit.Back in simpler times those mufflers were pretty much all alike and were scrwed onto a pipe bib just like in plumbing.
    codyman144's Avatar
    codyman144 Posts: 544, Reputation: 31
    Senior Member

    #5

    Jan 12, 2009, 11:20 AM

    Jchild - Don't know the HP also don't know the year the engine was made, just the snowblower itself, engine was replaced.

    Ballenger - Thanks that helps... I will probably wait until I know I won't need to use it for a while (spring) and do what you suggested. I just hope more parts don't start to go or they will be hard to find.

    Just wish they had a good website or someone out there knew the model of this engine.
    KISS's Avatar
    KISS Posts: 12,510, Reputation: 839
    Uber Member

    #6

    Jan 12, 2009, 11:40 AM

    Ariens has a website. Maybe they can identify the model of the snowblower and the engine.

    Ariens - Lawn & Snow Products

    Tecumseh has a model number locator PDF here:

    http://www.tecumsehpower.com/CustomerService/BSI.pdf
    mower_man's Avatar
    mower_man Posts: 81, Reputation: 2
    Junior Member

    #7

    Jan 21, 2009, 05:06 PM

    Try Finding The Model # On The Engine!!
    codyman144's Avatar
    codyman144 Posts: 544, Reputation: 31
    Senior Member

    #8

    Jan 21, 2009, 05:21 PM
    Quote Originally Posted by mower_man View Post
    Try Finding The Model # On The Engine!!!
    I looked everywhere on the engine and cannot find it. That is the whole reason for the post.
    patryc's Avatar
    patryc Posts: 2, Reputation: 1
    New Member

    #9

    Jan 30, 2009, 07:23 PM
    Hi !
    I am french speaking but I will try to explain you how to find the model and serial number.

    First, _ Unscrew the 2 litle bolts on top of the starter switch ( square plastic box
    With the buttom to power the electric starter).
    Second,_ Look wright there under, and you will see numbers and letters.
    Something like: M80 155292K Ser 5113D
    If there is rust, use a sand paper and clean it; don't forget to put clear paint or clear nail polish after to prevent rust.

    Good luck.
    Claude.;);)
    codyman144's Avatar
    codyman144 Posts: 544, Reputation: 31
    Senior Member

    #10

    Jan 30, 2009, 09:18 PM
    Quote Originally Posted by patryc View Post
    Hi !
    I am french speaking but I will try to explain you how to find the model and serial number.

    First, _ Unscrew the 2 litle bolts on top of the starter switch ( square plastic box
    with the buttom to power the electric starter).
    Second,_ Look wright there under, and you will see numbers and letters.
    Someting like: M80 155292K Ser 5113D
    If there is rust, use a sand paper and clean it; dont forget to put clear paint or clear nail polish after to prevent rust.

    Good luck.
    Claude.;);)
    So you’re saying the model number is underneath where I plug in the electric starter. If that is true I thank you very much for the help! I will give it a try tomorrow...
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #11

    Feb 2, 2009, 09:18 AM

    Hi,
    That is where the number is. It is an HM80 though I cannot say the type.
    Peace,
    Clarke
    Medic130's Avatar
    Medic130 Posts: 1, Reputation: 1
    New Member

    #12

    Jan 12, 2010, 10:38 AM
    You need to take off the starter button. It is stamped under there. It took me days to figure that one out. Have an old JD 826, just don't make them like that anymore.
    KISS's Avatar
    KISS Posts: 12,510, Reputation: 839
    Uber Member

    #13

    Jan 12, 2010, 11:36 AM

    If it's indeed that engine and it looks like it is, parts are available here: Small Engine Specialists | Ariens OEM Parts | Briggs & Stratton OEM Parts | Cub Cadet OEM Parts | Echo OEM Parts | eXmark OEM Parts | Honda Engines OEM Parts | Honda Power Equipment OEM Parts | Husqvarna Power Equipment OEM Parts | Hustler Turf OEM P 33280A, about $25 for the standard (33280A).

    About $80 for ultra quiet. There is a muffler locking plate available too about $1.50
