I need a murray drive belt diagram

krismat Posts: 1, Reputation: 1

New Member

May 11, 2009, 05:39 PM

I need a murray drive belt diagram

please help I need a drive belt diagram for a murray lawn mower the belt size is 37x61

crigby Posts: 4,343, Reputation: 107

Outdoor Power Equipment Expert

May 12, 2009, 01:44 PM

Hi,
We will see if this attaches correctly. Kind of variable!

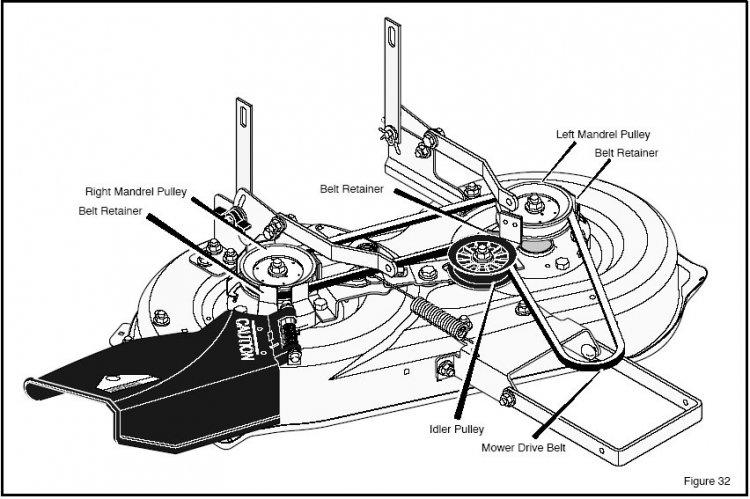

Attached Images

Add your answer here.
