    Mower deck belt on Yard King

    I have a yardking riding mower,my belt came off on the mower deck,I don:t know how to put it back on,its not broken.. its a yardking,model-283707... type-0217-02... code-9306154e... briggs & stratton... 12 horsepower.. need picture of how belt goes back on... if not were can I go to find inf.need answers asap.
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Sep 26, 2009, 02:51 PM

    Hi,
    I separated your thread from the other; always begin a new post for a new problem.

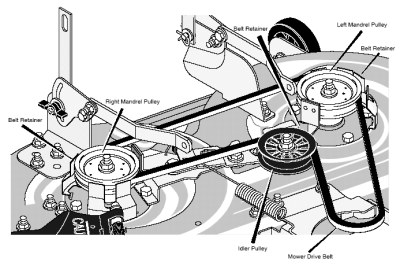

    I will have to assume a two blade deck because of horsepower. Picture attached (mower model under seat usually.)
    Peace,
    Clarke
    Attached Images
