    Drive belt replacement for Troy Bilt Riding mower model #13AN779G766
    Does any one know how to properly replace a drive belt on a Troy Bilt Pony model # 13AN779G766 The trouble I am having is getting the belt on the pulley that is attached to the rear diff. anyone's help would be good. Thank you
    ballengerb1's Avatar
    ballengerb1 Posts: 27,378, Reputation: 2280
    Home Repair & Remodeling Expert

    #2

    Jul 15, 2007, 04:16 PM
    You must fully depress the clutch/brake pedal to get the belt on. If there is also a tensioner pulley it too must be retracted. This is going to take about 6 hands so go buy a six pack and call your buds.
    redmolly's Avatar
    redmolly Posts: 1, Reputation: 1
    New Member

    #3

    Sep 1, 2010, 05:09 PM

    Anyone know how to replace the drive belt that runs from the engine to the rearend ? On a Troy Bilt model 37746 13AJ609G766 1A094H20024
    DG's Avatar
    DG Posts: 1,375, Reputation: 109
    Ultra Member

    #4

    Sep 10, 2010, 07:45 PM

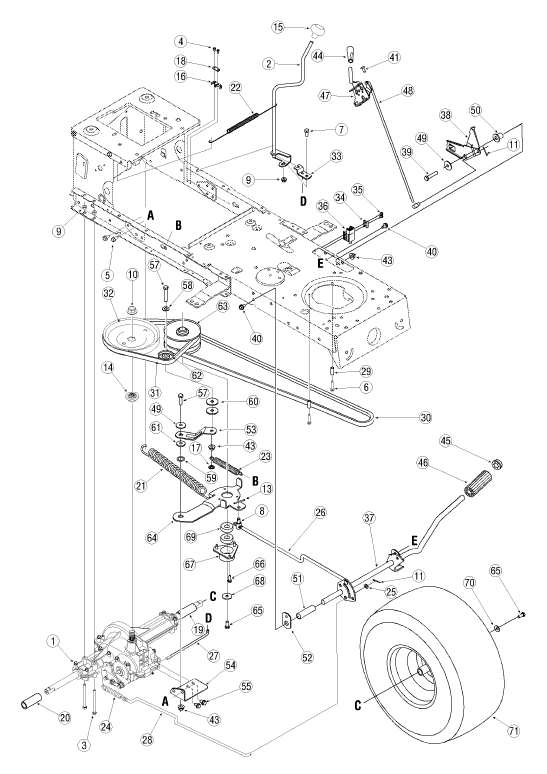

    Berni take
    The nut off the diff pulley installe belt on it first then put it on the other pulleys
    Attached Images

    DG's Avatar
    DG Posts: 1,375, Reputation: 109
    Ultra Member

    #5

    Sep 10, 2010, 07:52 PM
    Red molly
    You will have to remove the top belt off the variator.
    Then remove yhe secondary belt.you will have to loosen the bolt that rus through the variator.
    Attached Images
