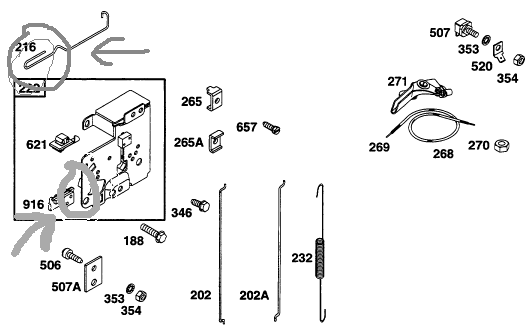

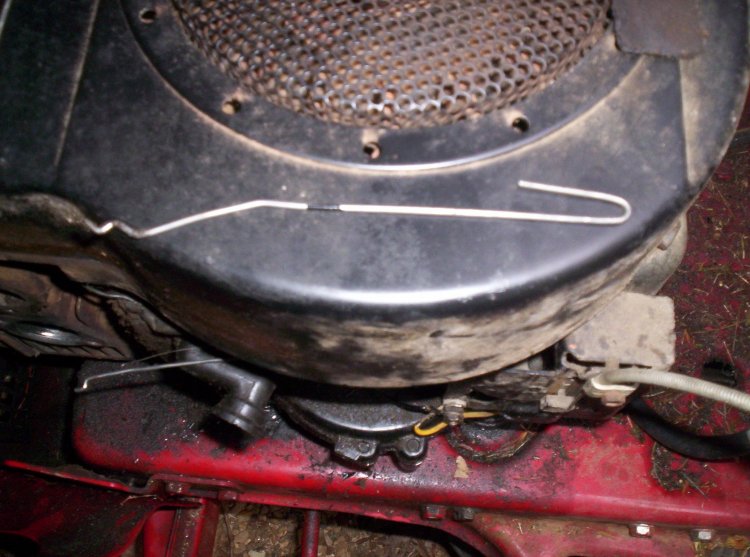

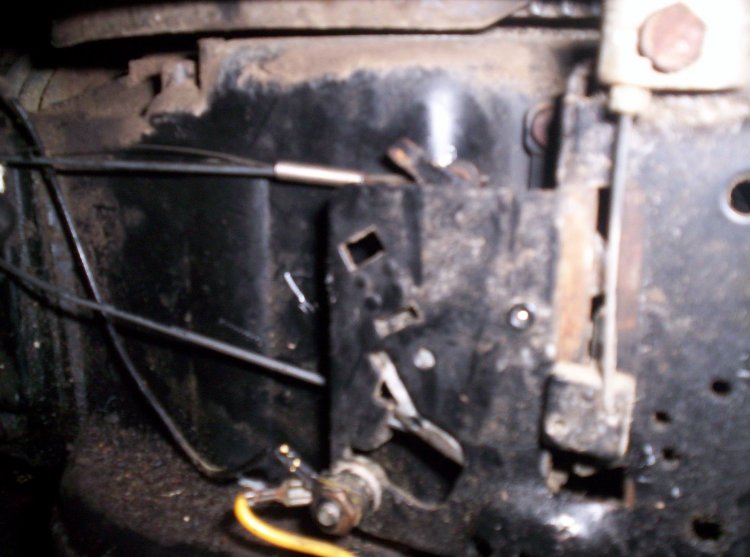

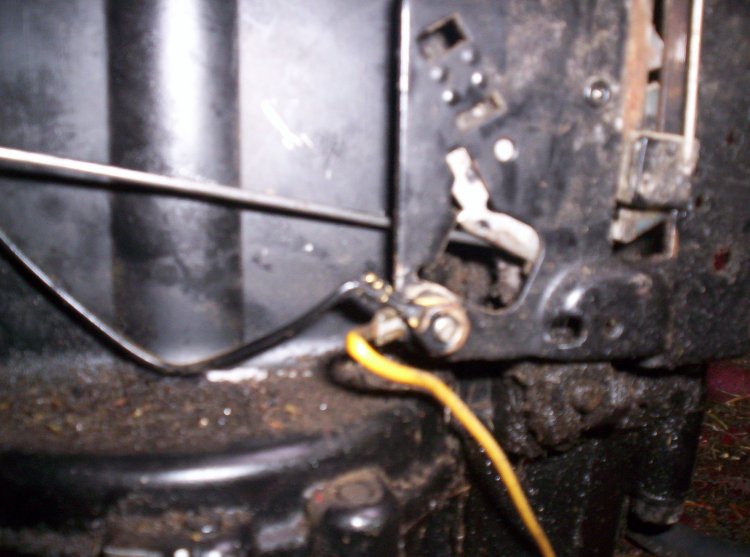

Ok. Newbie here. I have looked everywhere before posting and can't figure out. I have an Murray riding mower (Model 36511x18) with a Briggs 11 HP (model 252707-0632-01). Was trying to remove carburetor the other day and the throttle linkages fell off and I don't know how the lower one connects to the lever side (I understand the connection at the carb). I have attached three photos one is the link I am talking about the others are pictures of the throttle boy. I have not been able to find a picture of this connection or how to connect it. I have seen parts diagrams (don't help). I can't transporrt the mower to get help with fixing it so if someone could send me a photo or a drawing that would be awesome.

Thanks so much in advance.

DG · May 14, 2011, 10:11 AM

If it's the linkage laying on top that's the choke control.it goes in a slot on the back of the throttlr plate , if you put it in there and work it by hand you will see how it works,
Luck

Manner11 · May 14, 2011, 10:21 AM

Originally Posted by DG

if its the linkage laying on top thats the choke control.it goes in a slot on the back of the throttlr plate , if you put it in there and work it by hand you will see how it works,
Luck

It is the linkage laying on the top. That is the problem I don't see any hole that it will hook to and still work in any way when moving it by hand. If I could just get a photo or a diagram. I am two hours into messing with it and can't figure it out.

DG · May 14, 2011, 07:04 PM

There should be a slot in this bracket on the engine side . The end with the loop goes in it

Manner11 · May 15, 2011, 04:25 AM

Thanks DG. THat helps and confirms correctinstall.

DG · May 15, 2011, 07:45 AM

Your welcome Good Luck .
