    B&S 5.5 frunt tine tiller idels too high.
    Craftsman 5.5hp frunttine tiller.MO#917.292390
    HELLO FOLKS!After dealing with a gas tank problem that I had with this unit I can't get it to idel correclly.Before the gas tank prblem it did idel right.I not shure if I'm missing a spring or just need proper adjustment.Ive adjusted best I could but no go.If anyone knows the linkage patern or has pics,diagrams.Please help!
    THANK YOU FOLKS,HAVING LOTS OF FUN!!


    SLYME65
    DG's Avatar
    DG Posts: 1,375, Reputation: 109
    Ultra Member

    #2

    May 20, 2011, 06:54 PM

    If you could get me the model # of engine I could help.
    slyme65's Avatar
    slyme65 Posts: 23, Reputation: 1
    New Member

    #3

    May 20, 2011, 07:00 PM
    DG:
    Hello!Hey here is the model # to that engine #1372021124-e1
    DG's Avatar
    DG Posts: 1,375, Reputation: 109
    Ultra Member

    #4

    May 21, 2011, 03:53 PM

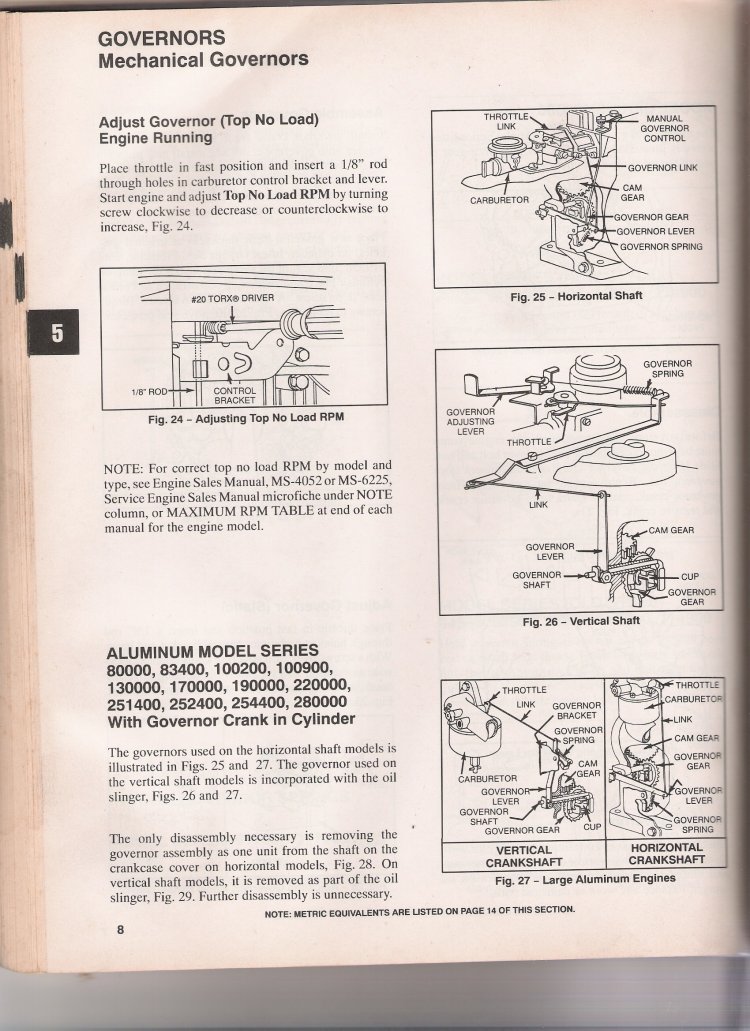

    Try this look at fig. # 25
    Attached Images
