    What is this capped pipe?
    Hi all,

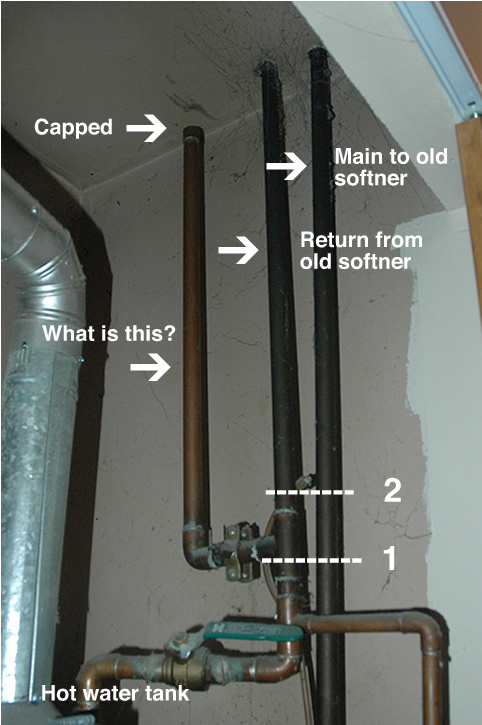

    I am removing old copper pipes from where I removed a water softener that stopped working. When I traced it back to the main water supply and the hot water tank-there was another capped pipe that I don't understand why it is there or used for.

    I am planning on cutting & joining the main and the hot water tank at either point 1 if I don't need the capped pipe or at point 2 if I do need it. The cold water to the rest of the house is just below the joint and to the right of where I plan on cutting.

    So, my question is - What is it used for and can it be removed?

    I am planning on replacing the copper throughout the house with PEX as we remodel our entire house.

    Thank you,

    MacWarrior
    Attached Images

    KISS's Avatar
    KISS Posts: 12,510, Reputation: 839
    Uber Member

    #2

    Jan 13, 2008, 05:18 PM
    It's a makeshift air column to eliminate water hammer. Used all the time.
    MacWarrior's Avatar
    MacWarrior Posts: 2, Reputation: 1
    New Member

    #3

    Jan 13, 2008, 05:26 PM
    That was 1 guess that I had. Well, it doesn't work. So I guess it's coming out. Thank you!

    MacWarrior
    iamgrowler's Avatar
    iamgrowler Posts: 1,421, Reputation: 110
    Ultra Member

    #4

    Jan 13, 2008, 05:27 PM
    Your guess is as good as mine -- It could be a air column as KISS suggests, or it could be a stub-out for a future addition.

    Regardless, cut it out and get on with the re-pipe.

    One suggestion, though; This being a gas fired H/W Tank, I would strongly urge you consider installing an expansion tank on the cold water side of the system to counteract the effects of thermal expansion.

    Just my two pence.
