    UP-Flush piping construction on a 90 bend please help
    Hello

    I have an upflush in basement the discharge pipe goig up and then 90 bend

    Heed help how to properly configure this set up Please tell me which is best way to set this up from pictures below

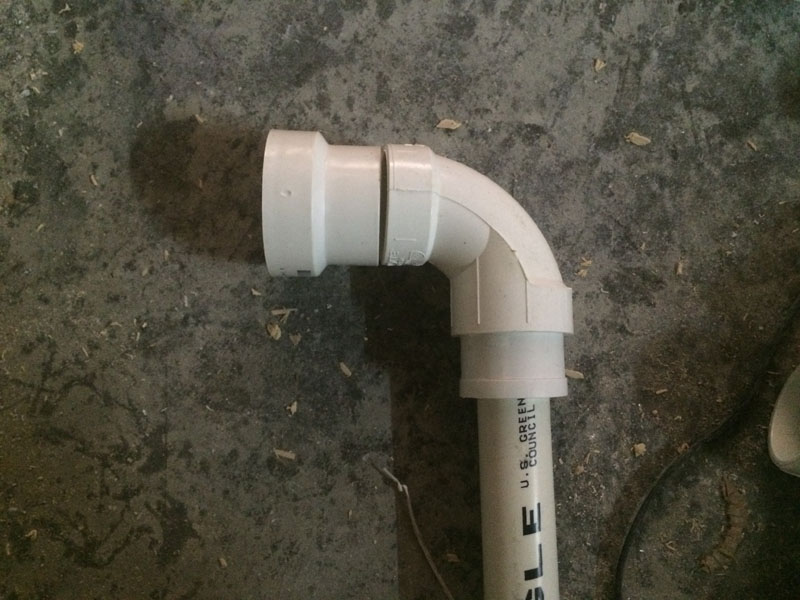

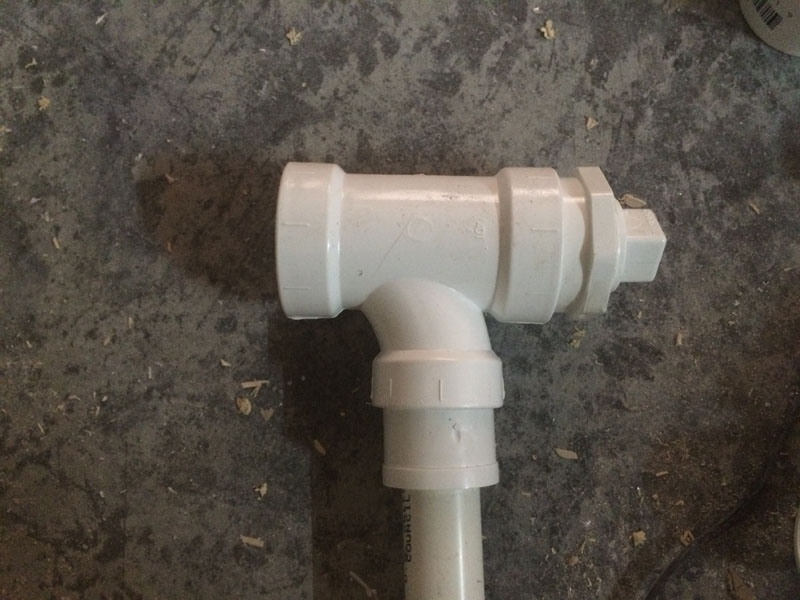

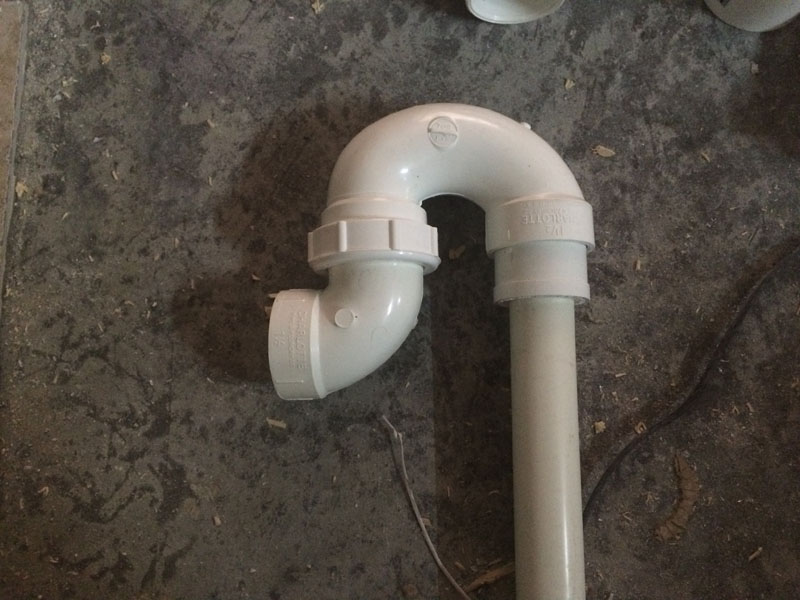

    Name:  3.jpg
Views: 62
Size:  117.3 KBName:  2.jpg
Views: 65
Size:  110.7 KBName:  1.jpg
Views: 51
Size:  111.8 KB
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Apr 6, 2015, 07:33 AM
    Please explained exactly what it is you wish to do. Back to you, Tom
    notlike7's Avatar
    notlike7 Posts: 2, Reputation: 1
    New Member

    #3

    Apr 6, 2015, 07:37 AM
    UP-FLUSH discharge going up than gravity drain

    Look at pictures let me know what is the best way to construct the 90 degree bend, from UP-flushing bending 90 to gravity drain
    massplumber2008's Avatar
    massplumber2008 Posts: 12,825, Reputation: 1211
    Senior Plumbing Expert

    #4

    Apr 6, 2015, 11:25 AM
    Use the long sweep 90 degree fitting at top... no need to use a trap or clean out here. Then, connect the drain pipe to a large drain pipe using a wye and a clean out.

    Mark
    Mike45plus's Avatar
    Mike45plus Posts: 230, Reputation: 27
    Full Member

    #5

    Apr 6, 2015, 12:09 PM
    I would also include an isolation valve, check valve, and union...
    massplumber2008's Avatar
    massplumber2008 Posts: 12,825, Reputation: 1211
    Senior Plumbing Expert

    #6

    Apr 6, 2015, 12:34 PM
    An isolation valve and a union are always a good idea (requirement) on these, but all macerator pumps I've ever installed have an internal check valve so that should not be needed here. Of course, if you check the installation manual you will see manufacturer recommendation for drain AND vent requirements!

    Good luck!

    Mark
