    Two toilets
    I'am planning to add 2 more toilets into my house, one on the ground floor and the other directly above it on the second floor. I will run a new vent/stack as the old one is not in the correct location.
    Is this plan acceptable to code.
    David
    ballengerb1's Avatar
    ballengerb1 Posts: 27,378, Reputation: 2280
    Home Repair & Remodeling Expert

    #2

    Feb 13, 2012, 12:43 PM
    Under which code do you fall? Where are you located?
    Forgeprojects's Avatar
    Forgeprojects Posts: 4, Reputation: 1
    New Member

    #3

    Feb 13, 2012, 12:48 PM
    Nova Scotia Canada
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Feb 13, 2012, 01:02 PM
    Are two toilets all you're adding? No sink? No bath/shower? Do you plan on venting the first floor toilet? Back to you, Ton
    Forgeprojects's Avatar
    Forgeprojects Posts: 4, Reputation: 1
    New Member

    #5

    Feb 13, 2012, 01:40 PM
    Thanks for the reply Speedball 1
    On the ground floor there will be a sink insde the washroom, this will be vented by an air valve.
    On the second floor there will be a shower and a wash basin, which will vent into the new stack above the toilet, and before the vent stack goes out through the roof.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #6

    Feb 14, 2012, 05:38 AM

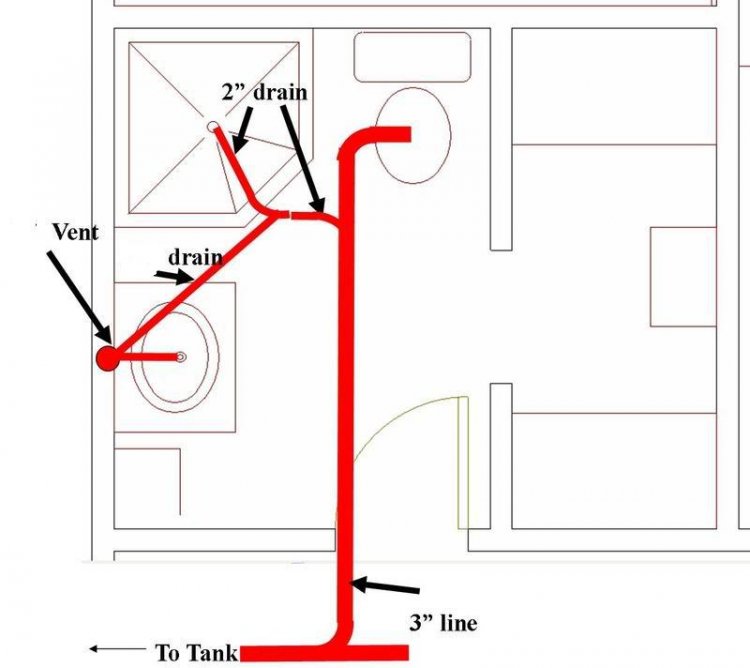

    The first floor will be a half bath vented by a AAV. If wet vents are allowed in your area here's how the second floor bath should rough in. Good luck, Tom
    Attached Images

    Forgeprojects's Avatar
    Forgeprojects Posts: 4, Reputation: 1
    New Member

    #7

    Feb 14, 2012, 07:08 AM
    Thank you Tom.
