    Replace a Delta 3 handle shower stem?

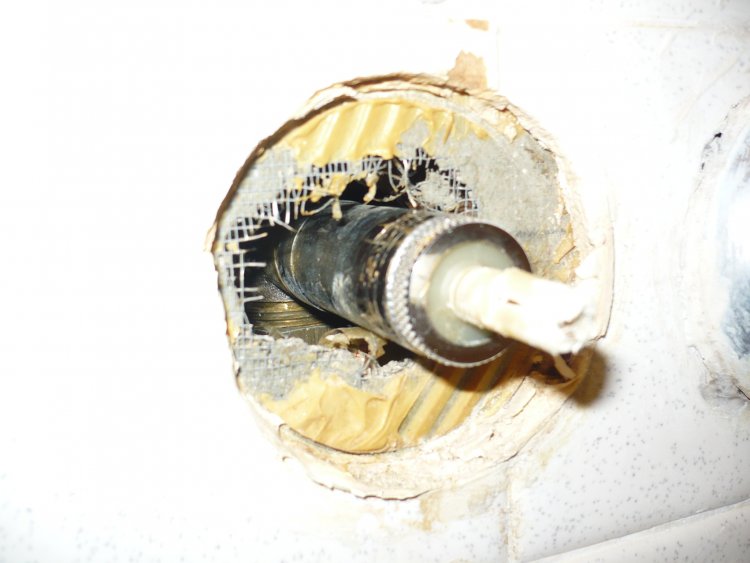

    I have an older 3-knob Delta shower system (hot, cold and diverter) and the hot water handle has broken. I removed the plastic knob and found that the plastic stem is shredded. I need to know how to remove the old piece and replace it.

    To make things more fun, the knob to control the local water flow to the shower on the hot water side has broken off. How can I replace the stem without turning off the main water to the house or turning off the water to shower?
    Attached Images

    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #2

    Mar 27, 2009, 08:24 PM

    You can nit replace the stem with out shut off the water, you have to shut off the water, open the link below I hope this will help you how to remove the stem, Thanks.

    John

    http://www.plumbingpartsdepot.com/dela23handtub.pdf
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Mar 28, 2009, 06:55 AM

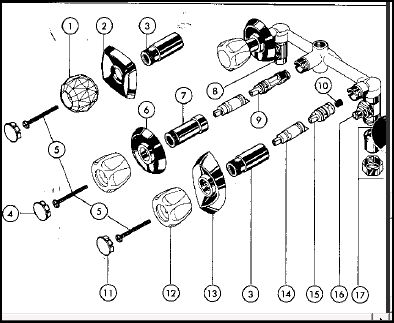

    Here's the mixing valve John is referring to,(see image). Good luck, Tom
    Attached Images

    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #4

    Mar 28, 2009, 09:34 AM

    Tom is correct if you open my link and go to page 4 will show you both 2 handles and 3 handles with the parts list, Thanks.

    John
    Flippo37's Avatar
    Flippo37 Posts: 8, Reputation: 1
    New Member

    #5

    Sep 4, 2010, 09:24 PM
    Delta 3 handle system - I found the diverter stem at Ace Hardware(way over priced. When I put it back in the assembly it was very difficult to get in also I'm not for sure if it matters which way it goes in (seal towards the top or bottom?)anyway I put it all back together and it didn't work, I read somewhere that I should use high temp grease, is that necessary? So I went to Home Depot to get some grease and the man said for me to save my money and just use WD40, so I did, still had to force it in. The Home Depot man also told me that if I brought the whole assembly in that they would replace it for free since Delta has a lifetime guarantee. Anyone have any suggestions?

    Thanks,
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #6

    Sep 5, 2010, 10:51 AM

    I would suggest to remove the stem and take it to the Home Depot if they can replace it for you with out any chrges and this is true that delta parts has a life time warrant, good luck.

    John
    joyjoi's Avatar
    joyjoi Posts: 1, Reputation: 1
    New Member

    #7

    Nov 14, 2012, 08:20 AM
    Hello, what is part #7 called? I need a new one because the old one on the diverter will not screw on.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #8

    Nov 14, 2012, 08:48 AM
    Call Delta at 800-345-3358 and order the part. Good luck, Tom
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #9

    Nov 14, 2012, 04:34 PM
    Hello Joyjoi,

    Call Delta as Tom says and tell them that you are original owner of the house they will send you the part for free, ggod luck.

    John
