    Remodling Bathroom, moving toilet and putting in Tub, not sure how to run drains

    Asked Jun 19, 2005, 07:15 AM 15 Answers

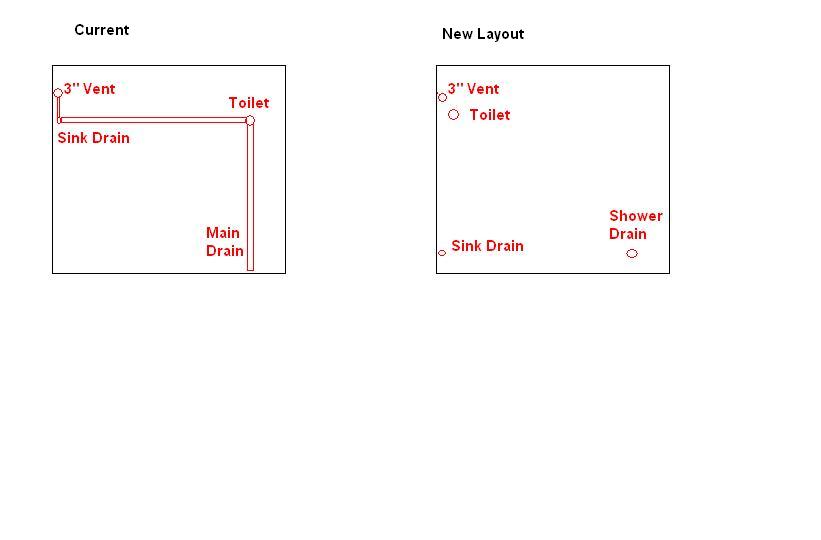

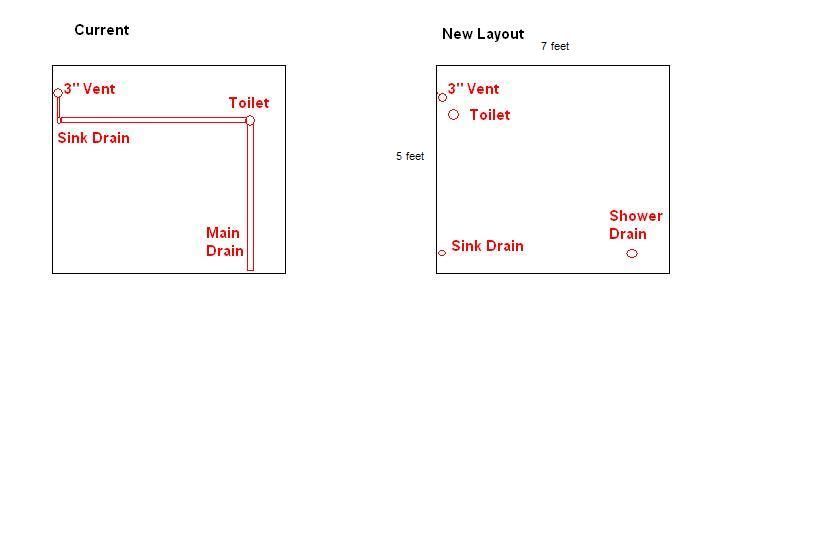

    The main question I have is how the flow should be on the shower because I do no see a way for it to be upstream from the toilet and vent. Can someone please offer some advice on how to run the pipes, I am pretty handy and usually do my own work, but I don't want to make any mistakes.

    Thanks,

    Attached Images Attached Images
    Search this Question
    Share |
    15 Answers
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #2

    Jun 19, 2005, 12:23 PM


    Before I can give you a answer I'll need some measures. How far will the new lavatory set from the vent? Give me the dimensions of the room. Does the shower drain set directly over the main as you have drawn it? Is this a basement installation or upstairs? Will this job be inspected? Give me more details, (like everything you have). I've pretty much laid out the venting but need the measurements to check them out. Regards, Tom
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #3

    Jun 19, 2005, 12:49 PM
    Thanks for the fast reply. I have not torn the walls away yet, but I figure that the vent will sit either directly behind the toilet or to the left or right of it within a foot. The room is 5' X 7' (very small). The tub drain will sit almost directly over the main and I am installing a corner sink. I am doing this job myself and there will be no inspection. This is the first floor 1/2 bath I am converting to a full.



    Thanks for any help you can give me!
    Attached Images

    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #4

    Jun 20, 2005, 07:56 AM
    This is a bathroom on the first floor of a ranch.
    Helpful
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #5

    Jun 20, 2005, 09:00 AM


    Quote Originally Posted by techboy
    Thanks for the fast reply. I have not torn the walls away yet, but I figure that the vent will sit either directly behind the toilet or to the left or right of it within a foot. The room is 5' X 7' (very small). The tub drain will sit almost directly over the main and I am installing a corner sink. I am doing this job myself and there will be no inspection. This is the first floor 1/2 bath I am converting to a full.



    Thanks for any help you can give me!!
    I don't know how to put attachments on in this site. However I can E-mail you a lay out if you will give me your E-mail addy. Cheers, Tom
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #6

    Jun 20, 2005, 09:44 AM
    Quote Originally Posted by speedball1
    I don't know how to put attachments on in this site. However I can E-mail you a lay out if you will give me your E-mail addy. Cheers, Tom

    Thanks Tom!

    My Address is techboy@adelphia.net
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #7

    Jun 20, 2005, 10:46 AM
    Tom,

    I Thought I might have trouble figuring this out but you have TOTALLY solved my problem in no time at all. Thank you very much for your help! My understanding is that I will connect the closet to the 4" main directly and then tap the Lavatory into the vent and feed the main. One other question, I will have to go through a few studs (load bearing) for my vent tap. What Dia. Pipe should I use for that?

    Also, my whole drain system is copper, should I do the new in PVC? If so, where should I do the conversion?

    Thanks Again..
    Helpful
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #8

    Jun 21, 2005, 05:08 AM


    Quote Originally Posted by techboy
    Tom,

    I Thought I might have trouble figuring this out but you have TOTALLY solved my problem in no time at all. Thank you very much for your help! My understanding is that I will connect the closet to the 4" main directly and then tap the Lavatory into the vent and feed the main. One other question, I will have to go through a few studs (load bearing) for my vent tap. What Dia. pipe should I use for that?

    Also, my whole drain system is copper, should I do the new in PVC? If so, where should I do the conversion?

    Thanks Again..
    I would convert to PVC at the 4 X 2" combo coming off the main. A short stub of 2" copper with a threaded adapter soldered on the end will make the conversion easy. From there simply thread in a PVC adapter and you can run the rest of the job in PVC. Good luck, Tom
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #9

    Jun 21, 2005, 06:29 AM
    Thanks Tom,

    How big should the vent tap be from the lav to the vent?
    Helpful
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #10

    Jun 21, 2005, 06:47 AM
    Vent
    Quote Originally Posted by techboy
    Thanks Tom,

    How big should the vent tap be from the lav to the vent?
    To vent the entire bathroom group make the vent 2".
    Cheers, Tom
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #11

    Jun 21, 2005, 12:53 PM
    Tom,

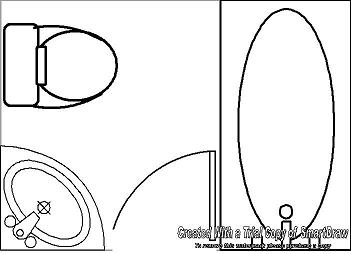

    I did some work to find exact location of vent, how does this drawing look?
    Attached Images

    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #12

    Jun 21, 2005, 12:55 PM
    Quote Originally Posted by speedball1
    To vent the entire bathroom group make the vent 2".
    Cheers, Tom

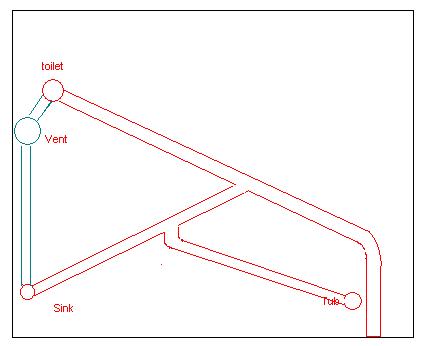

    How about this for a final?
    Attached Images

    Helpful
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #13

    Jun 21, 2005, 02:45 PM
    Quote Originally Posted by techboy
    How about this for a final?

    Looks good to me. Is the toilet vented by a heel inlet in the closet bend?
    Helpful
    techboy's Avatar
    techboy Posts: 16, Reputation: 1
    New Member

    #14

    Jun 21, 2005, 03:33 PM
    Quote Originally Posted by speedball1
    Looks good to me. Is the toilet vented by a heel inlet in the closet bend?

    I am not sure, any any suggestions about that connection are more than welcome, I figured I would "wing it" when I open up the walls. The toilet vent should connect above the sink correct? Or does it not matter.
    Helpful
    speedball1's Avatar
    speedball1 Posts: 29,302, Reputation: 1939
    Eternal Plumber

    #15

    Jun 21, 2005, 04:15 PM
    Quote Originally Posted by techboy
    I am not sure, any any suggestions about that connection are more than welcome, I figured I would "wing it" when I open up the walls. The toilet vent should connect above the sink correct? Or does it not matter.
    Are you quite sure the toilet needs a individual vent? In my area it would be wet vented by the lav vent. Some local codes require all fixtures by vented. Ours doesn't. Tom
