    Proper way to get water level back to normal in comode?
    Greetings. I had to replace the flush lever and few other small internal parts of our comode. The water level is well below normal and I cannot get it right! Help! I am afraid that with the minimal amount of water being used (not a high pressure comode) I will end up with a horrible back-up.
    Thank you.
    Melissa :confused:
    massplumber2008's Avatar
    massplumber2008 Posts: 12,832, Reputation: 1212
    Senior Plumbing Expert

    #2

    May 6, 2008, 04:25 PM
    Greetings to you Melissa:

    Sounds like you replaced some parts on an older style fill valve.. That sound right?

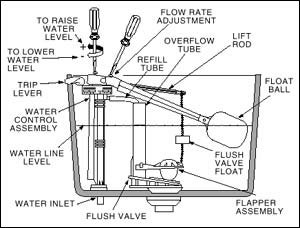

    Do the inner workings of toilet look like my picture below (or similar)..

    If so, you can see that most of these units have a screw that raises/lowers water level and some have a flow rate adjustment screw. You want to adjust so that the float ball on long arm DROPS lower so takes the tank longer to fill... try it... let me know.

    WATERLINE should be about 1/2" to 1" below the top of the overflow tube (picture is wrong on that).

    If my picture is not like your commode tank..let me know what you can about it...how old...that kinda stuff!!

    DON'T FORGET TO CHECK THE REFILL TUBE... MAKE SURE IT IS PLACED INTO OR AT LEAST CONNECTED TO THE OVERFLOW TUBE.

    Mark

    .
    Attached Images

    massplumber2008's Avatar
    massplumber2008 Posts: 12,832, Reputation: 1212
    Senior Plumbing Expert

    #3

    May 6, 2008, 04:36 PM

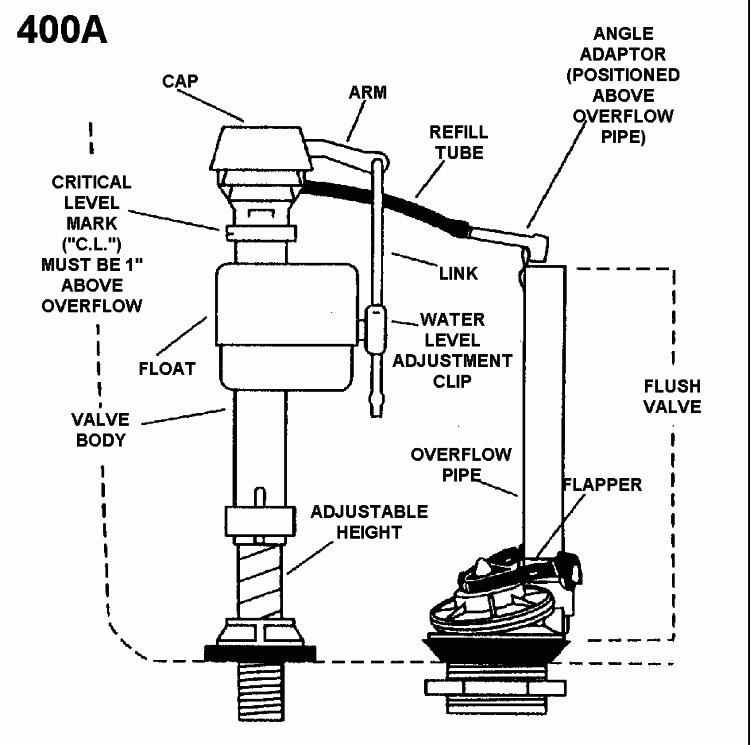

    If the picture above does not resemble your setup.. does this picture resemble it?

    I doubt it... but wanted to post this pic. To isolate as best we can... ;)

    Let me know... Mark
    Attached Images

    solomonmm's Avatar
    solomonmm Posts: 2, Reputation: 1
    New Member

    #4

    May 6, 2008, 04:47 PM
    Quote Originally Posted by solomonmm
    Greetings. I had to replace the flush lever and few other small internal parts of our comode. The water level is well below normal and I cannot get it right! Help! I am afraid that with the minimal amount of water being used (not a high pressure comode) I will end up with a horrible back-up.
    Thank you.
    Melissa :confused:
    Actually this commode has an anti-siphon system, not the old float-ball set-up. There is no adjustment at the top of the cap. I have looked, watched, looked again and could not figure it out until just now. The lever arm is impeding on the fill arm, a little adjustment to the valve assembly and it is now working like a charm. Thank you!
    Melissa
    massplumber2008's Avatar
    massplumber2008 Posts: 12,832, Reputation: 1212
    Senior Plumbing Expert

    #5

    May 6, 2008, 04:48 PM
    Glad it's fixed!
