    Plumbing diagram for a tub and shower combo, vanity and toilet
    Plumbing diagram for bathroom with tub and shower cobo, vanity and toilet
    joypulv's Avatar
    joypulv Posts: 21,591, Reputation: 2941
    current pert

    #2

    Jul 24, 2016, 06:53 AM
    Try again with a LOT more detail. It's easy to post a picture using the icon on top of the Answer box. And put it under the right category, not Gambling.
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #3

    Jul 24, 2016, 09:38 AM
    Bit too vague depending on room layout. Give us a rough sketch of the room and where you want the fixtures.
    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #4

    Jul 24, 2016, 10:42 AM

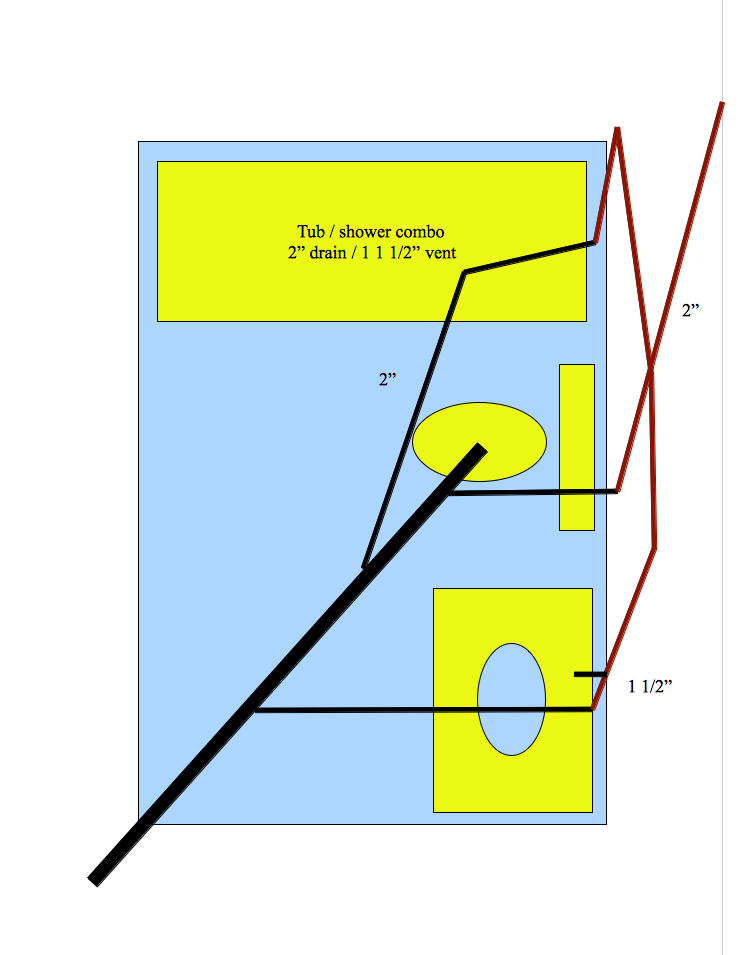

    Typical 3 unit bathroom installation by UPC.
    Minimum room / space requirement is about 5' x 8'

    Black lines are drains
    Red lines are vents


    Toilet: 3" drain / 2" vent pipe - all the way through the roof ( that's your main vent )
    Tub / Shower: 2" drain and trap, 1 1/2" vent, connect with toilet vent about 48" high from the floor
    Sink: 1 1/2" drain and vent, connect with toilet vent about 48" above the floor

    Run the common 2" vent pipe all the way through the roof, and terminate not less than 12" above the roof

    Hope that helps

    Milo
    Attached Images

    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #5

    Jul 25, 2016, 12:31 AM
    Milo,

    It is a great diagram it will not let me gave you a positive comment that you deserve.

    Thanks,
    John
