    Plumb a double sink with garbage disposal... a drawing would be helpful
    The drain pipe is low under the sink how do you place pipes
    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #2

    Jun 7, 2014, 03:53 PM

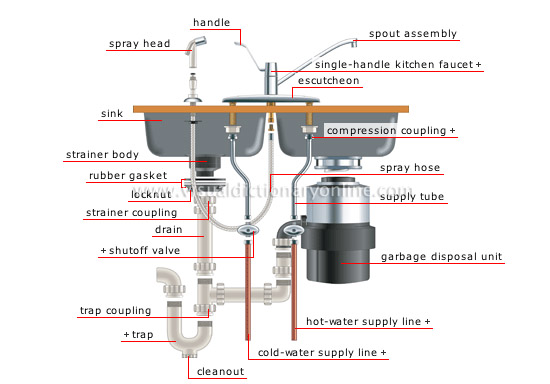

    There are several ways to install double waste sink drain assembly with garbage disposer.. Here is one of them. See if it fits your situation. Back to you. Milo
    Attached Images

    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #3

    Jun 7, 2014, 05:36 PM
    You refer to a "low pipe". If the P trap end is below the wall connection, because of a deep sink, and you cannot raise the connections by judicious cutting, the only solution is to open the wall and lower the connection. Otherwise, the Disposal will always be full of water.
    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #4

    Jun 7, 2014, 05:44 PM
    Ma0641: You are correct. I picked this drawing from the net, not noticing the low connection. Thanks for pointing it out to me.

    Unfortunately, the system won't let me edit the photo. So, let me look up and post another one...

    Thanks again

    Milo
    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #5

    Jun 7, 2014, 05:45 PM
    New photo...
    Attached Images

    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #6

    Jun 7, 2014, 06:36 PM
    Milo, I was referring to the OP stating "the drain pipe was low under the sink". I was not referring to your layout . However, the second picture does indeed raise the P Trap.
