    Installation of Water Softener Drain
    I want to install a drain for a water softener in my garage. Ideally, I would like to tie this into a permanent waste pipe to a nearby sink (or shower).

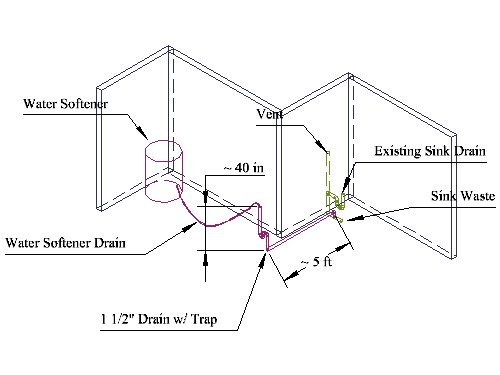

    I have outlined in the link below my proposed layout. Is there any issues with it? Specifically, will the vent for the existing fixture be adequate for this drain? I would like to install the tee above the existing waste line and install a trap in the line as shown.

    Is there anything I am missing?

    Thanks
    Mike

    Name: softener_070331.jpg Views: 7687 Size: 30.3 KB
    iamgrowler's Avatar
    iamgrowler Posts: 1,421, Reputation: 110
    Ultra Member

    #2

    Mar 31, 2007, 11:44 PM
    Replace the 90 with a San-Tee and put an AAV on top of the tee and you should be good to go.
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Apr 1, 2007, 06:13 AM
    You might want to check your local codes before connecting a water softener drain to a public sewer system. In my area it's against code to connect the outflow of, storm drains/rain water runoff, AC condensate lines, sump pumps, water softener discharge or anything else besides gray water or sewerage to a public sewer system. The reason being that it puts a load on the processing plant that's unacceptable and raises the cost of processing sewage. Good luck, Tom
    armycot's Avatar
    armycot Posts: 2, Reputation: 1
    New Member

    #4

    Apr 1, 2007, 08:54 AM
    Thanks for the input.
