    How to replace an exterior drain
    I have an exterior drain in a stairwell that has broken out of the cement. It had a stand pipe. All I can find about 7" below the cement is a cast iron p-trap. and remnants of clay tile in the excavation of the dirt. The ID of the trap is 5" so I will have to nestle a short length of pipe and join it to a new drain. Can I use PVC? How would I join it to the p-trap? I’ve just carefully excavated and cleaned out the trap to make sure it was running to the cistern in the back yard.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Jun 26, 2010, 07:40 PM

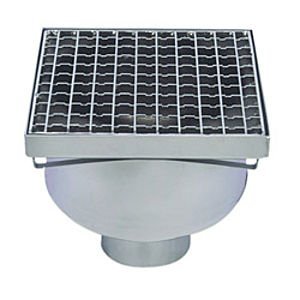

    Pleas give us more details, What size is the raiser coming out of the trap? Is it cast iron also? Since you already are trapped perhaps something like this would work. (see image). You will have to transition to PVC but if you give me enough information we'll work it out. Cheers. Tom
    Attached Images

    Stageman's Avatar
    Stageman Posts: 3, Reputation: 1
    New Member

    #3

    Jun 27, 2010, 07:21 AM
    From the P trap it used to be tile, but that has broken away Now there is nothing.

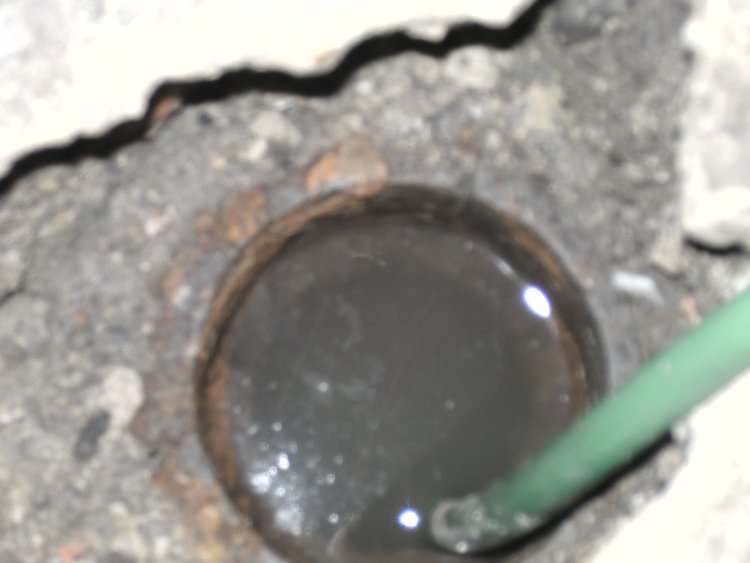

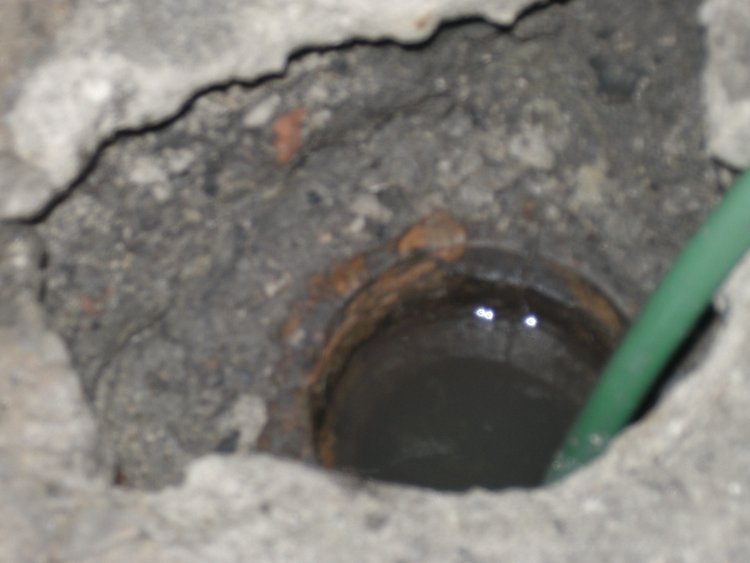

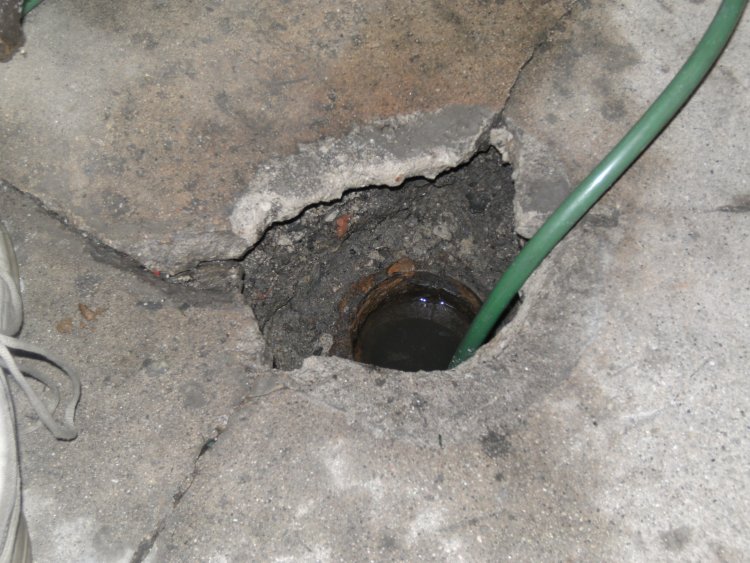

    See pictures
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Jun 27, 2010, 07:04 PM

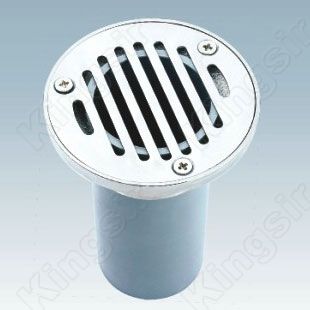

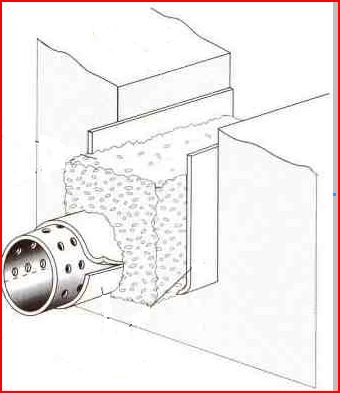

    Install a new bell trap and replace the old tile with perforated plastic drain pipe. (see image) good luck, Tom
    Attached Images

    Stageman's Avatar
    Stageman Posts: 3, Reputation: 1
    New Member

    #5

    Jun 28, 2010, 12:31 PM

    Sorry, I must not have been clear, I need to know how to come up to a drain from a cast iron ptrap.
    The piece of tile I mentioned was the riser. What should the riser be, to fit into a 5" ID collar of the P-trap?
    Do I need to get a gasket something like a 5" donut?
