    How do I Install A High Loop Air Gap?
    How do I install a "high loop" air gap?
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #2

    Sep 21, 2012, 02:48 PM
    There is no such thing as a "high loop air gap". It is EITHER a high loop or an air gap. See Afaroo's post with diagrams of a high loop system. Ultra simple to install and very efficient.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Sep 21, 2012, 02:48 PM
    Hi Greg and welcome to The Plumbing Page at AskMeHelpDesk.com You are responding to a 3 year old dead thread so I gave you one of your own. Please check the date before you post. Thanks,
    How do I install a "high loop" air gap?

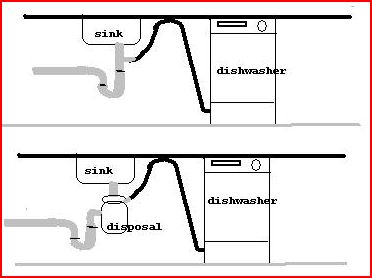

    Easy as falling off a log. Simply loop the hose as high as it will go (see image) secure it with an pipe strap or nail and wire and then connect back to a disposal or if you don't have a disposal purchase a branch tailpiece,(see image) and drain it into the sinks drain. Good luck, Tom
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Sep 22, 2012, 07:47 AM
    Quote Originally Posted by ma0641 View Post
    There is no such thing as a "high loop air gap". It is EITHER a high loop or an air gap. .
    It's not very often I disagree with Brian but this is one of those times.
    A high loop is a air gap. That's its only function. There are two types of air gaps
    1- A high loop air gap **or**
    2- A counter top air gap
    Since counter top air gaps can fail and high loops can't we only install high loop air gaps in our new installations. Regards, Tom
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #5

    Sep 22, 2012, 10:14 AM
    Quote Originally Posted by speedball1 View Post
    It's not very often I disagree with Brian but this is one of those times.
    A high loop is a air gap. That's its only function. There are two types of air gaps
    1- A high loop air gap **or**
    2- A counter top air gap
    Since counter top air gaps can fail and high loops can't we only install high loop air gaps in our new installations. Regards, Tom
    My bad, I have never referred to them as an air gap, but yes they are. Brian
