    Having trouble finding the correct kitchen sink sprayer nonthreaded replacement hose.
    The valve assembly under the sink is brass with a integral tee for the sprayer hose. The hose connector is unthreaded. Under the sink at the end of the stainless steel sprayer hose is a 3/4" long brass coupling, then a gray plastic piece inserted into the brass coupling that fits over the integral tee coming out of the valve assembly. No markings to indicate the faucet manufacturer. I'm not sure how to remove the sprayer hose but am considering either prying it off, which may break something critical, or just removing the entire faucet/sprayer assembly and replacing the whole enchilada.
    rainesbros555's Avatar
    rainesbros555 Posts: 4, Reputation: 1
    New Member

    #2

    Jan 20, 2010, 07:11 AM

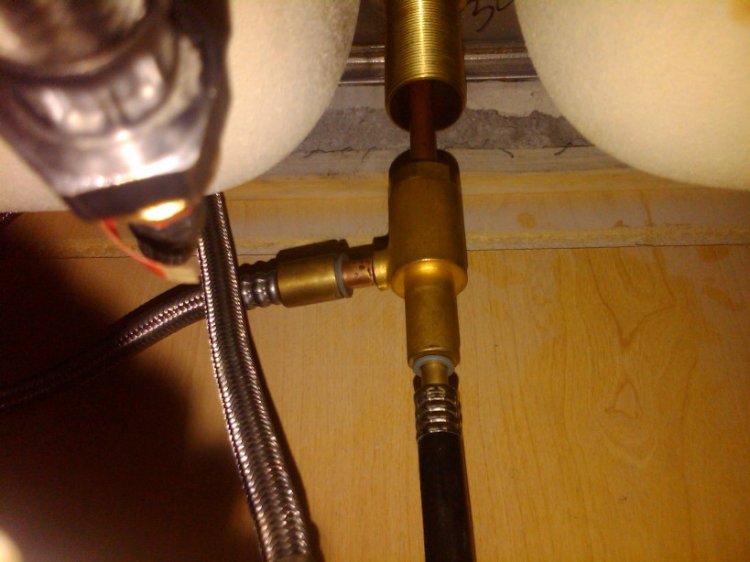

    Here is a picture of the where the sprayer hose connects. How do I remove the hose and where can I get a replacement?
    Attached Images

    afaroo's Avatar
    afaroo Posts: 4,003, Reputation: 251
    Ultra Member

    #3

    Jan 20, 2010, 01:26 PM

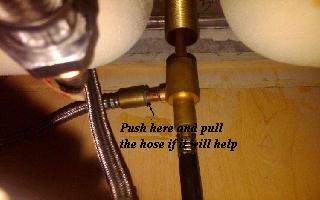

    See your Pic, try to push the grey and pull the hose see if it disconnect, if does once it is removed and take to plumbing supply if they can help you a replacement, Thanks.

    John
    Attached Images

    rainesbros555's Avatar
    rainesbros555 Posts: 4, Reputation: 1
    New Member

    #4

    Jan 20, 2010, 07:44 PM

    Thanks for the tip. Push the grey insert to the left and further into the coupling? Or push it to the right toward the valve assembly?
    massplumber2008's Avatar
    massplumber2008 Posts: 12,824, Reputation: 1211
    Senior Plumbing Expert

    #5

    Jan 20, 2010, 08:06 PM
    Hi Rainesbros555...

    John got you started real well... :) Use a pair of needlenose pliers to push on the gray ring while pushing on the brass coupler with your hand in the opposite direction and once the gray ring is compressed you will PULL on the brass coupler to release. Give it a shot...

    MARK
    Attached Images

    rainesbros555's Avatar
    rainesbros555 Posts: 4, Reputation: 1
    New Member

    #6

    Jan 20, 2010, 08:18 PM

    Hello massplumber2008,
    Thanks for the advise and photo! I'll give that a shot.
    cher1087's Avatar
    cher1087 Posts: 2, Reputation: 1
    New Member

    #7

    Aug 28, 2010, 08:13 PM
    Quote Originally Posted by massplumber2008 View Post
    Hi Rainesbros555...

    John got ya started real well...:) Use a pair of needlenose pliers to push on the gray ring while pushing on the brass coupler with your hand in the opposite direction and once the gray ring is compressed you will PULL on the brass coupler to release. Give it a shot...

    MARK
    What is the name of these parts or where can I find them this is what I need to fix my sprayer but I don't know where to find them I would like to order them on-line
    Thanks
    massplumber2008's Avatar
    massplumber2008 Posts: 12,824, Reputation: 1211
    Senior Plumbing Expert

    #8

    Aug 28, 2010, 08:15 PM

    Hi Cher

    That will depend on the manufacturer of your faucet. Can you post a picture of your faucet?

    Mark
    cher1087's Avatar
    cher1087 Posts: 2, Reputation: 1
    New Member

    #9

    Aug 28, 2010, 08:21 PM

    It looks just like the picture above of the under sink parts.
    massplumber2008's Avatar
    massplumber2008 Posts: 12,824, Reputation: 1211
    Senior Plumbing Expert

    #10

    Aug 29, 2010, 11:33 AM

    I think this is a moen faucet... what brand name is on your faucet? Let me know... OK?

    If you have a moen faucet you can get repair parts at no charge by calling 1800BUYMOEN.

    Back to you...

    Mark
