    Grohe faucet handle
    I have a Friedrich Grohe Bathroom faucet model 88-04-L. It is a single base unit with angled handles on each side. How do I take off the handles to check/replace the faucet washers? There does not appear to be any hex screw or phillips screw to loosen the handles from the top.
    SoundFX's Avatar
    SoundFX Posts: 6, Reputation: 1
    New Member

    #2

    Sep 4, 2013, 07:48 AM
    There appears to be a collar or sleeve at the base of the handle knob that separates from the knob. Is that a clue to taking off the handle knob?
    SoundFX's Avatar
    SoundFX Posts: 6, Reputation: 1
    New Member

    #3

    Sep 11, 2013, 05:07 PM
    Quote Originally Posted by SoundFX View Post
    There appears to be a collar or sleeve at the base of the handle knob that separates from the knob. Is that a clue to taking off the handle knob?

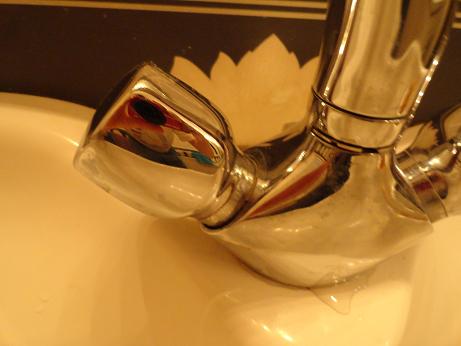

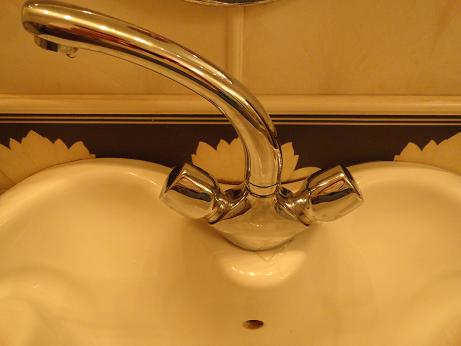

    Here is a picture of the Grohe bathroom faucet I am working on.
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #4

    Sep 12, 2013, 05:32 AM
    ..
    Attached Images

    SoundFX's Avatar
    SoundFX Posts: 6, Reputation: 1
    New Member

    #5

    Sep 12, 2013, 07:52 AM
    Quote Originally Posted by hkstroud View Post
    ..

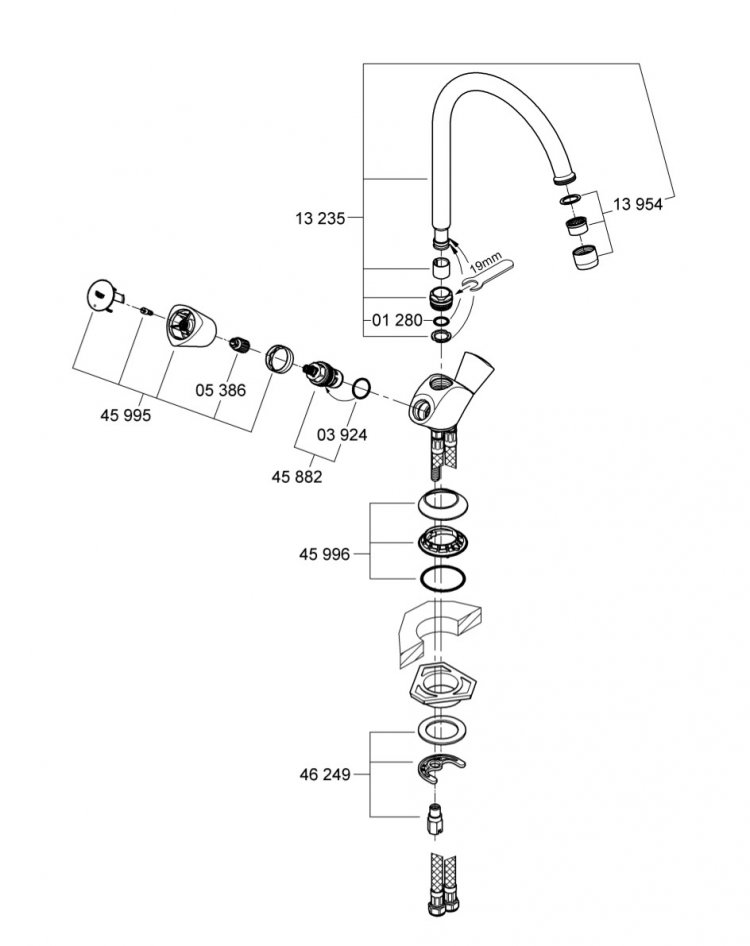

    The handle knob (45 995) is not the same as my knob. It has no cap on the end - it is a solid piece of chrome. There is a sleeve at the base of the handle knob that separates from the knob.
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #6

    Sep 12, 2013, 09:48 AM

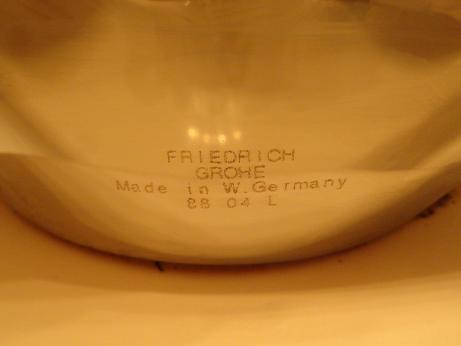

    Could find no model called Friedrich. The numbers are probably the manufacturing date. Show end of handle. If end of handle is solid metal, use a small mirror to look at back side of handle sleeve for set screw.
    SoundFX's Avatar
    SoundFX Posts: 6, Reputation: 1
    New Member

    #7

    Sep 12, 2013, 10:06 AM
    Quote Originally Posted by hkstroud View Post
    Could find no model called Friedrich. The numbers are probably the manufacturing date. Show end of handle. If end of handle is solid metal, use a small mirror to look at back side of handle sleeve for set screw.

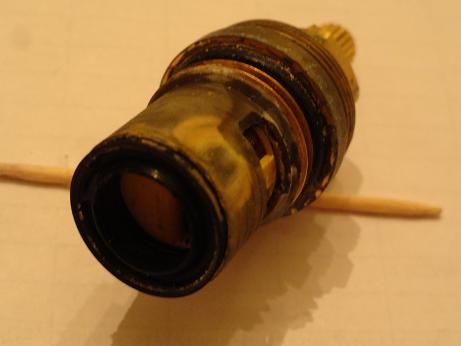

    Well, I got the handle off by separating that little sleeve from the knob and pulling hard. It came off after a little struggle, probably from all the calcium build up of many years. Now on to the hardware store to pickup the "specialized" faucet washers.
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #8

    Sep 12, 2013, 10:37 AM
    Interesting and congratulations. Now that you have the handle off why not post pic of handle, in case some one else has problem.
    Grohe technical help.

    GROHE - Contact Us
    SoundFX's Avatar
    SoundFX Posts: 6, Reputation: 1
    New Member

    #9

    Sep 12, 2013, 01:26 PM
    Quote Originally Posted by SoundFX View Post
    Well, I got the handle off by separating that little sleeve from the knob and pulling hard. It came off after a little struggle, probably from all the calcium build up of many years. Now on to the hardware store to pickup the "specialized" faucet washers.
    After searching at 3 hardware stores, 2 plumbing supply stores, and the 2 big box stores, I am unable to find parts for this faucet. I called Grohe directly, and they do not have parts for this faucet (model 88-04-L), claiming it is over 20-25 years old, and has been discontinued. Back then the company was called Friedrich Grohe, and has since changed its' name to just "Grohe". I have cleaned out the valves as best I can, but would like to replace the washers or the cartridges in each valve. My only problem is a small drip on the cold side when the faucet is turned off. Any suggestions?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #10

    Sep 12, 2013, 05:41 PM
    ..
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #11

    Sep 12, 2013, 05:50 PM

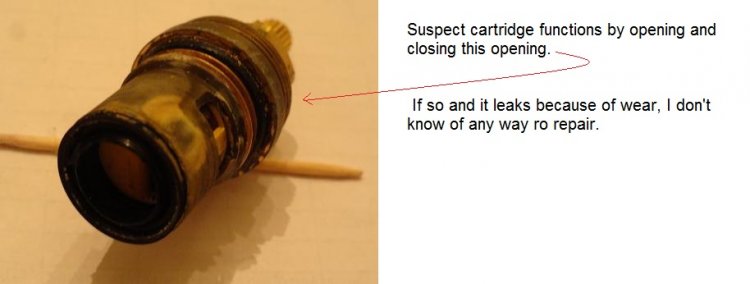

    Did Grohe give you a part number? How close does your cartridge look to 45.882?
    Replacement parts to repair your fabulous Grohe faucet and more
