cd7542 · Sep 28, 2012, 12:49 PM

My question is this a plumber on last installation put in one of the strangest routings for pipes I've seen from my disposal is straight to a trap and out my right side is aimed straight down to the bottom of the cabinet which made him put in a double trap in order to continue straight down to the connection. I want to know if both sides must have a trap inline or what is the best way I can route these pipes into two or even one trap

speedball1 · Sep 28, 2012, 01:26 PM

my disposal is straight to a trap and out

n And out to where? In the wall? Back through the floor? Where?

my right side is aimed straight down to the bottom of the cabinet which made him put in a double trap in order to continue straight down to the connection.

This bothers me. I keep looking for the word "vent" but all I can find is illegal "S" traps.

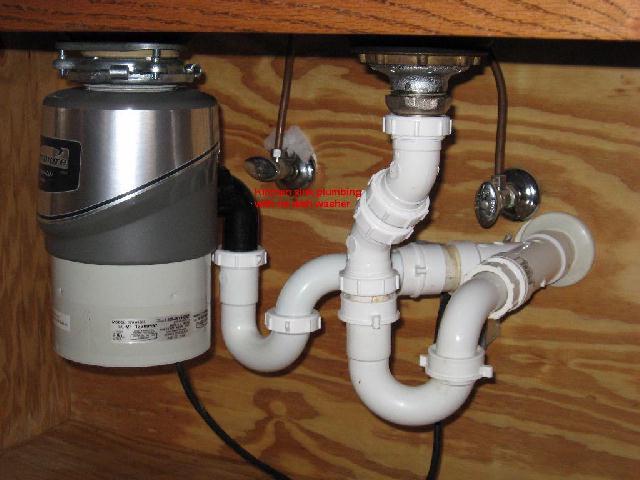

Are your traps vented? Here's a typical hookup. Notice the pipe goes into the wall and not the floor. Your thoughts> Tom
.

mygirlsdad77 · Sep 28, 2012, 03:08 PM

Can you post a pic of your current setup?

cd7542 · Sep 28, 2012, 04:08 PM

Out the floor

cd7542 · Sep 28, 2012, 04:09 PM

Originally Posted by mygirlsdad77

Can you post a pic of your current setup?

I can but won't be able to send it till after seven

mygirlsdad77 · Sep 28, 2012, 04:13 PM

Looking forward to the pics whenever you can get to it.

cd7542 · Sep 28, 2012, 04:14 PM

I'll try in an hour
