    Cutting into a half inch copper tube to install a compression shutoff valve
    I need to cut just enough 1/2 inch copper tubing to install a compression shut off valve for a shower supply line. The valve will be installed directly into this cut.
    massplumber2008's Avatar
    massplumber2008 Posts: 12,832, Reputation: 1212
    Senior Plumbing Expert

    #2

    Jan 31, 2010, 01:14 PM

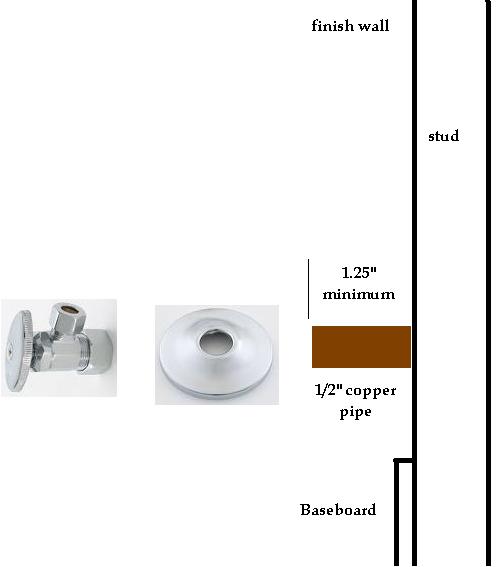

    To install a compression shutoff you will need a minimum of 1 inch of copper exposed. If you plan to install a chrome cover behind the shutoff you will need a minimum of 1.25" exposed copper pipe.

    MARK
    Attached Images
