    Bath Drain Waste and Vent For Bathroom
    Ok, here is my original project I was working on but while read plumbing books I came across something that made me address my other post about the sewer smell in the upstairs sink.

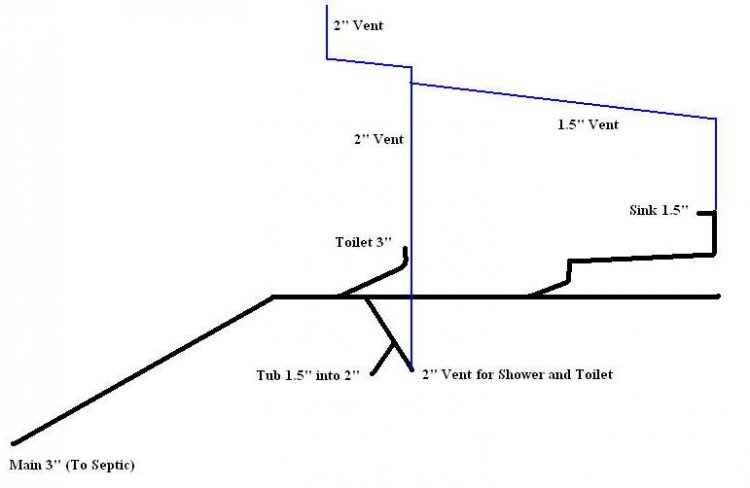

    Anyway, this is a master bath project on the first floor. Attached is a diagram based off what I was thinking and what was already in place before I started this project. How does it look?

    Being that the toilet is 3" line does the 6ft critical distance from the vent apply here?

    Probably a dumb question here but is the 6ft measure in a straight line from the toilet to the vertical vent or does it follow the route of the pipes?
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Oct 19, 2008, 03:12 PM
    [Attached is a diagram based off what I was thinking and what was already in place before I started this project. How does it look?/QUOTE]
    It looks fine to me. The toilet's wetvented by the shower and the lavatory revents back to the shower vent. Why the dog leg on the lavatory drain?
    Being that the toilet is 3" line does the 6ft critical distance from the vent apply here?
    It's 10 feet now. It shouldn't as the toilet's being vented by the shower.
    [QUOTEis the 6ft measure in a straight line from the toilet to the vertical vent or does it follow the route of the pipes?]
    It follows the route of the pipes. This is called "developed length". Good luck, Tom
    Jed77's Avatar
    Jed77 Posts: 8, Reputation: 1
    New Member

    #3

    Oct 19, 2008, 04:26 PM

    I can fix the dog leg. That's not an issue.

    Thanks for the help again!
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Oct 20, 2008, 06:57 AM
    No problem Jed,
    Your lay out works for me. Good luck, Tom
