    Basement Rough in Questions and Confusion.
    I want to finish my basement bath with a sink, stool and tub. I have a lot of pipes running around the area that has the 2 holes. I read some other posts and if I am rem correctly the square whole is for the shower and the round one is for the stool. I have no idea what the other pipes are and if I have the holes correct. I know that is the injector pump and all those pipes I can't figue out about 3.5 foot off the floor head that way. Can someone assist? Any info is appreciated.;)

    My questions are:
    1. What are all these pipes for?
    2. Which hole is for the tub, sink and stool?
    3. How do I get the waste for the sink hooked up?

    Thank you for looking.

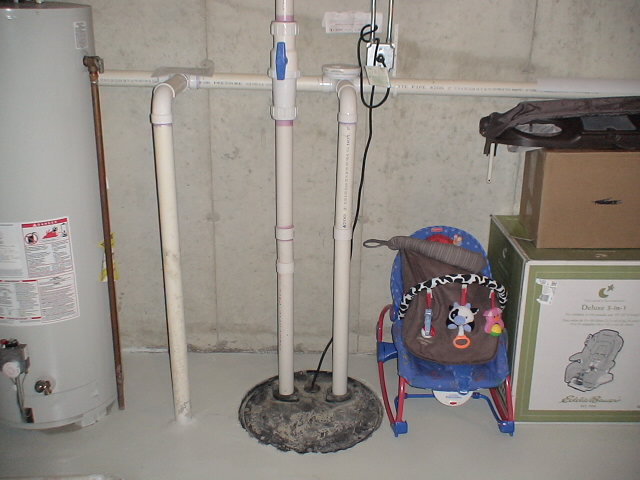

    Name: DSC02012.JPG Views: 567 Size: 56.6 KB

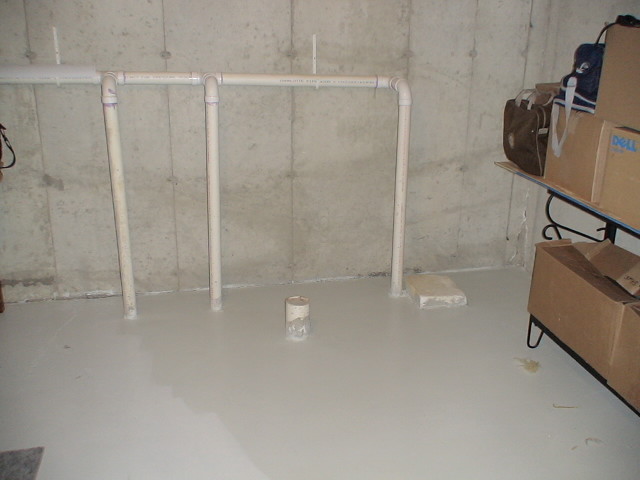

    Name: DSC02013.JPG Views: 638 Size: 57.0 KB

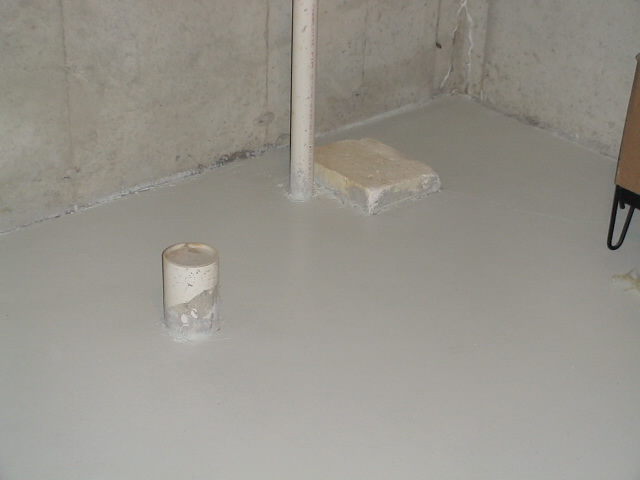

    Name: DSC02014.JPG Views: 498 Size: 59.9 KB
    dmaxscott's Avatar
    dmaxscott Posts: 2, Reputation: 1
    New Member

    #2

    Nov 21, 2006, 09:15 AM
    OK the s-foam on the floor is 12x10 in size. It is 13" on center off the back wall and 26" on center from the other wall.

    The white pipe next to it is 2" away from the s-foam.

    The other hole is 25" on center from the back wall and 57" on center from the other wall.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Nov 23, 2006, 08:04 AM
    I'm bumping you up on the list. I'll get back to it when I have more time. I apologize for the delay. Happy thanksgiving day, Tom
