    adding 2nd floor drain to existing vent pipe
    this question has been addressed before. But I would like to have more input on the subject for my own project.

    I am finishing my 2nd floor cape into a master suite.I want to put in a whirlpool bath, no toilette or sink will be installed.

    my question is can I just tie into the vent pipe with the drain. It is a 3 1/2 inch OD pvc pipe.
    as the joist are running front to back and the sub floor is in place I do not want to cut up the ply wood and drill holes through the joist to run the drain through
    I would like to run the drain above the floor. With maybe a cut out in the floor for the drain trap.I was thinking a 2x4 support structure with ply wood for supporting the bottom of the tub itself, rather than using morter. This will also 2nd for the drain to run through.

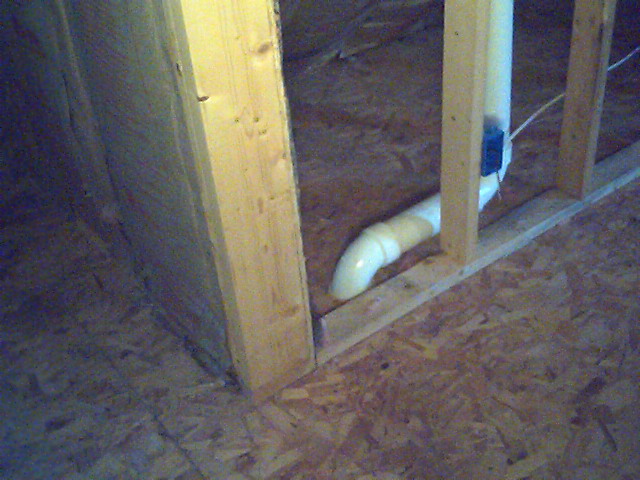

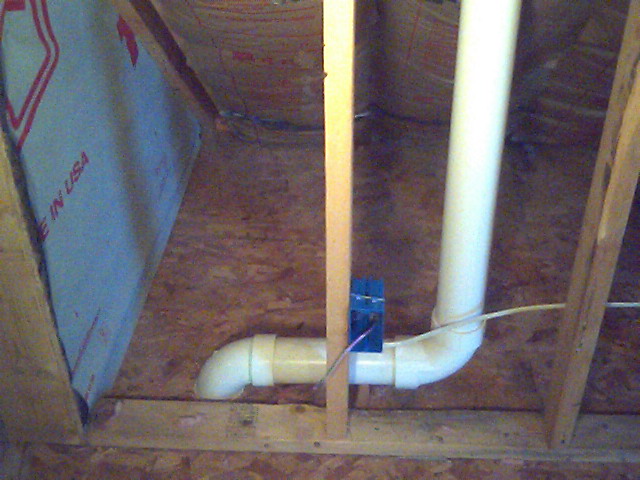

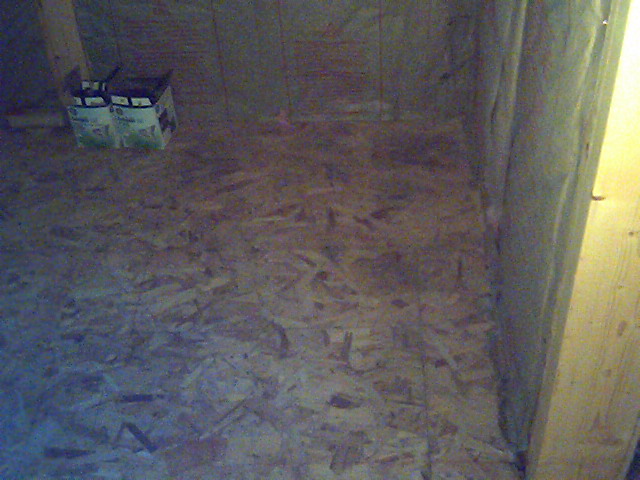

    Name: Random-pics 001.jpg Views: 5730 Size: 99.1 KB

    Name: Random-pics 002.jpg Views: 3622 Size: 101.2 KB

    Name: Random-pics 003.jpg Views: 2556 Size: 97.9 KB
    ballengerb1's Avatar
    ballengerb1 Posts: 27,378, Reputation: 2280
    Home Repair & Remodeling Expert

    #2

    Dec 18, 2009, 02:44 PM

    No toilet or sink and creating a wet vent, best to ask your building inspector if he'd approve any of this.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Dec 18, 2009, 05:24 PM

    If any fixtures are below that 3" vent pipe you can't use it without venting the fixtures that are below. Check with your local Building Department for code requirements. Because you're new I'll let it slide but from now on lose the advertisement. Good luck, Tom
    minx163's Avatar
    minx163 Posts: 6, Reputation: 1
    New Member

    #4

    Dec 18, 2009, 08:38 PM

    Not sure where the advertisement came from. It obviously came from this site.
    Thanks for the response. The vent comes from the basement where all the fixtures tie into the one pipe. I think that, the first floor bathroom sink may run directly into the vent pipe in the wall.

    If so, should I run a 2 inch drain pipe all the way down to the basment through the wall and leave the vent pipe alone?

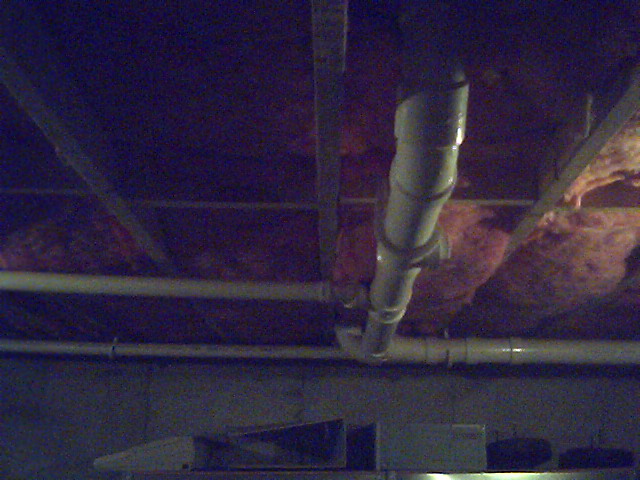

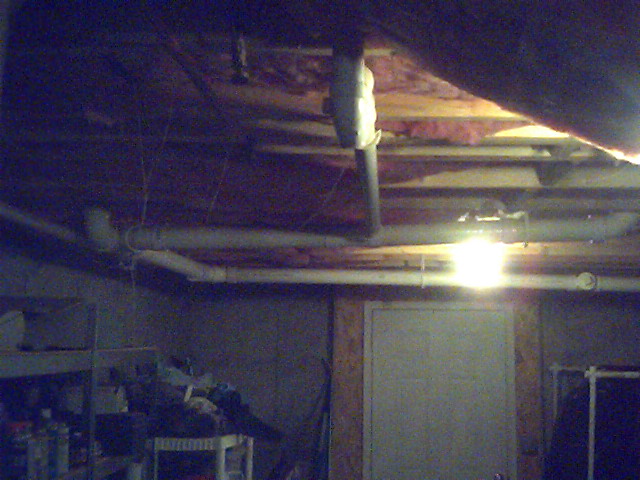

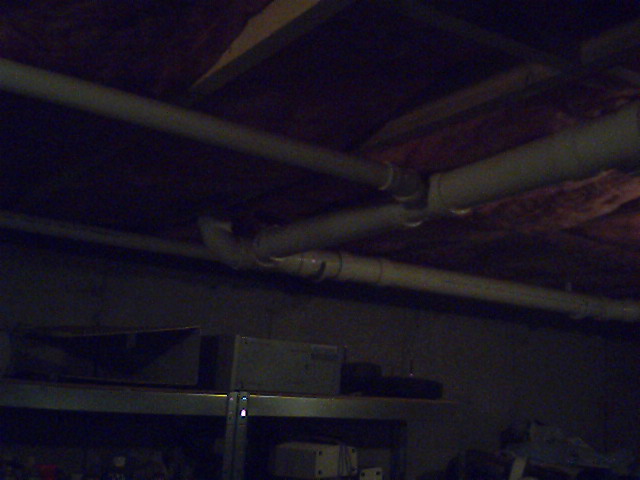

    Name: basment 001.jpg Views: 2704 Size: 62.7 KB

    Name: basment 002.jpg Views: 1931 Size: 98.2 KB

    Name: basment 003.jpg Views: 2303 Size: 101.3 KB
    minx163's Avatar
    minx163 Posts: 6, Reputation: 1
    New Member

    #5

    Dec 18, 2009, 08:41 PM
    Quote Originally Posted by ballengerb1 View Post
    No toilet or sink and creating a wet vent, best to ask your building inspector if he'd approve any of this.
    He didn't have a problem with the no sink and toilet.
    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #6

    Dec 18, 2009, 08:45 PM

    Yes, run dedicated 2" pipe all the way to the basement and connect to the 3" drain. As far as the vent to your new jacuzzi tub goes - you can connect it to that existing vent pipe upstairs.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #7

    Dec 19, 2009, 07:32 AM

    If so, should I run a 2 inch drain pipe all the way down to the basment through the wall and leave the vent pipe alone?
    Yes, As I've explained, backed up by Milo, you can not use the vent as your drain. However you may revent the tub back into it. Good luck, Tom
    minx163's Avatar
    minx163 Posts: 6, Reputation: 1
    New Member

    #8

    Dec 19, 2009, 10:36 AM

    With the new drain pipe tied into the master drain. And the vent pipe at the very end of the main drain pipe"see picture" is there a need to tie into the vent above the main drain
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #9

    Dec 19, 2009, 10:43 AM
    Quote Originally Posted by minx163 View Post
    with the new drain pipe tied into the master drain. and the vent pipe at the very end of the main drain pipe"see picture" is there a need to tie into the vent above the main drain
    Your pictures were too dark to make out.
    Are you asking if it's necessary to vent the tub or where to connect the vent to? Let me know, Tom
    minx163's Avatar
    minx163 Posts: 6, Reputation: 1
    New Member

    #10

    Dec 20, 2009, 01:56 PM
    Quote Originally Posted by speedball1 View Post
    Your pictures were too dark to make out.
    Are you asking if it's necessary to vent the tub or where to connect the vent to? Let me know, Tom
    My question is : With the vent at the end of the run on the main drain pipe in the basment. Is there a need to connect the vent pipe in the 2nd floor. The new 2 " drain pipe will be connected to the main drain pipe which is already vented

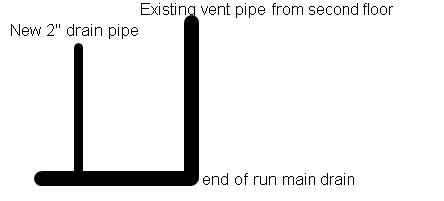

    Name: sketch.jpg Views: 2595 Size: 20.3 KB
    minx163's Avatar
    minx163 Posts: 6, Reputation: 1
    New Member

    #11

    Dec 20, 2009, 02:14 PM
    [QUOTE=minx163;2138135]My question is : With the vent at the end of the run on the main drain pipe in the basment. Is there a need to connect the vent pipe in the 2nd floor. The new 2 " drain pipe will be connected to the main drain pipe which is already vented

    [QUOTE]

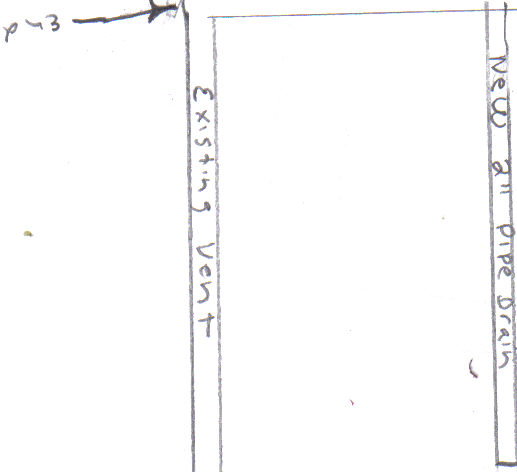

    Here is a better sketch

    Name: sketch 3.jpg Views: 1276 Size: 8.8 KB

    Quote Originally Posted by speedball1 View Post
    Your pictures were too dark to make out.
    Are you asking if it's necessary to vent the tub or where to connect the vent to? Let me know, Tom
    My question is : With the vent at the end of the run on the main drain pipe in the basment. Is there a need to connect the vent pipe in the 2nd floor. The new 2 " drain pipe will be connected to the main drain pipe which is already vented

    Sorry: here's a better sketch

    Name: sketch 3.jpg Views: 1013 Size: 8.8 KB
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #12

    Dec 20, 2009, 02:35 PM

    My question is : With the vent at the end of the run on the main drain pipe in the basment. Is there a need to connect the vent pipe in the 2nd floor. The new 2 " drain pipe will be connected to the main drain pipe which is already vented
    If there are fixtures draining into the drain line that you're connecting the sink to you will either have to install a AAV,(see image) just downstream from the trap or run a vent up 6" over the flood rm of the uppermost fixture on that vent. Good luck, Tom
