    How to draw acceleration versus velocity graph when an object is falling?
    Do you guys know what would be the curve looks like in the acceleration versus velocity graph? (including the air resistance when an object is falling)
    Thank you!
    Capuchin's Avatar
    Capuchin Posts: 5,255, Reputation: 656
    Uber Member

    #2

    Mar 23, 2007, 03:45 AM

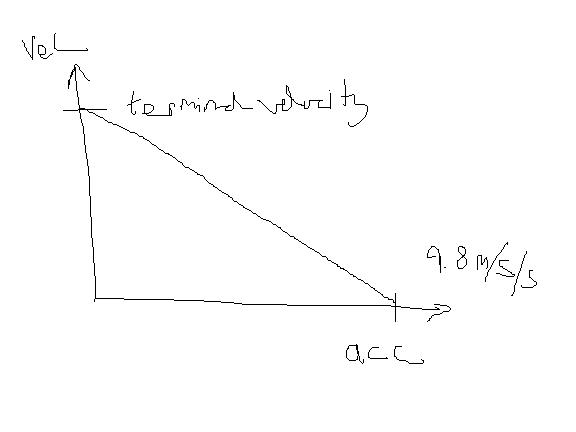

    That's a bit of a weird graph to draw, but here you go:

    This is assuming that the force due to air resistance is proportional to speed, but it might actually be the square of speed or something.
    Attached Images

    kitty123000's Avatar
    kitty123000 Posts: 4, Reputation: 1
    New Member

    #3

    Mar 23, 2007, 03:49 AM
    thank you for showing.
    but doesn't it look like a straight line or a curve? And also I am wondering a vs v, which is acceleration as y-axis and velocity in x-axis.
    thanks
    Capuchin's Avatar
    Capuchin Posts: 5,255, Reputation: 656
    Uber Member

    #4

    Mar 23, 2007, 03:50 AM
    Hmm, it would be a curve because it is proportional to the speed squared. You can flip the axes around easily.
    Capuchin's Avatar
    Capuchin Posts: 5,255, Reputation: 656
    Uber Member

    #5

    Mar 23, 2007, 03:56 AM
    There are some useful specifics on this page:

    Drag (physics) - Wikipedia, the free encyclopedia

    That DO answer your question :)
    DivyaMaharaj's Avatar
    DivyaMaharaj Posts: 1, Reputation: 1
    New Member

    #6

    Apr 22, 2012, 11:40 AM
    Acceleration vs velocity... but what is the units for the gradient of that graph?
    physic's Avatar
    physic Posts: 42, Reputation: 0
    Junior Member

    #7

    Apr 24, 2012, 11:03 AM
    $s=ut+\frac {1}{2}at^2$ this is displacement of an accelerated objects
