    Need a diagram on installing shallow well pump
    Shallow well pump advice and a diagram on the piping
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Jun 4, 2008, 06:01 PM
    Piping can be galvanized (wouldn't do it), PVC (cheapest), or flexible well piping (expensive but easiest to do and convenient if you have to pull the pump in the future.

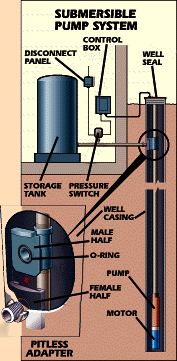

    How It Works: Water Well Pump - Popular Mechanics
    Attached Images
