pattyg2 · May 31, 2008, 08:07 AM

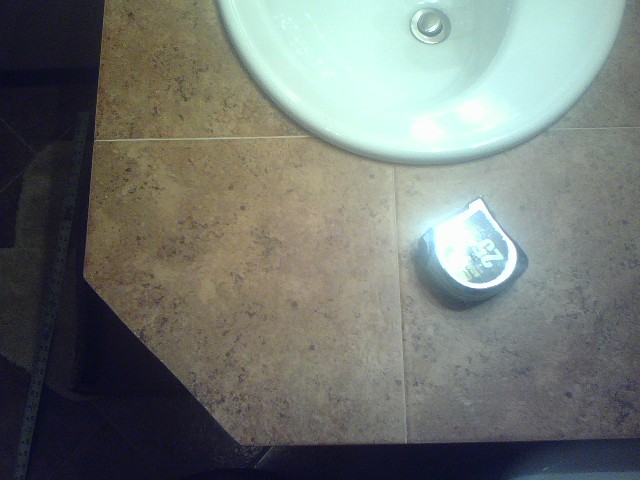

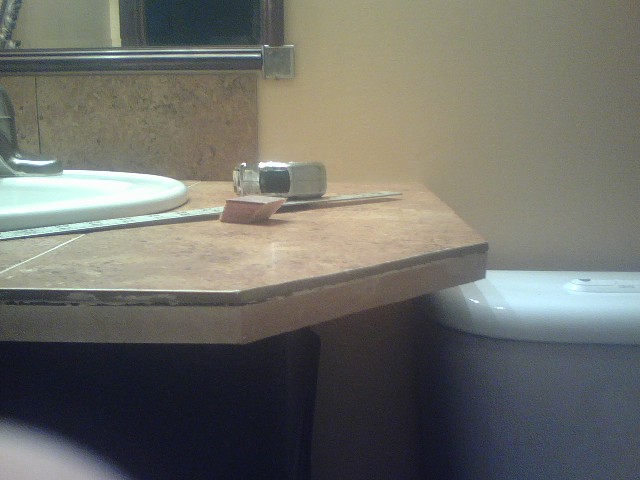

I have a rectagular counter top which has one front edge cut on an even diagonal. I need to know how to miter these so the trim can wrap around the outside edge. Would it be 22.5 cuts? Name: 0531080951.jpg
Views: 3892
Size: 67.3 KB

Name: 0531080951.jpg
Views: 3892
Size: 67.3 KB

Name: 0531080949.jpg
Views: 5845
Size: 60.4 KB

Scleros · May 31, 2008, 05:35 PM

Originally Posted by pattyg2

Would it be 22.5

Short answer is yes for miter saw setting (90 - 67.5 = 22.5).

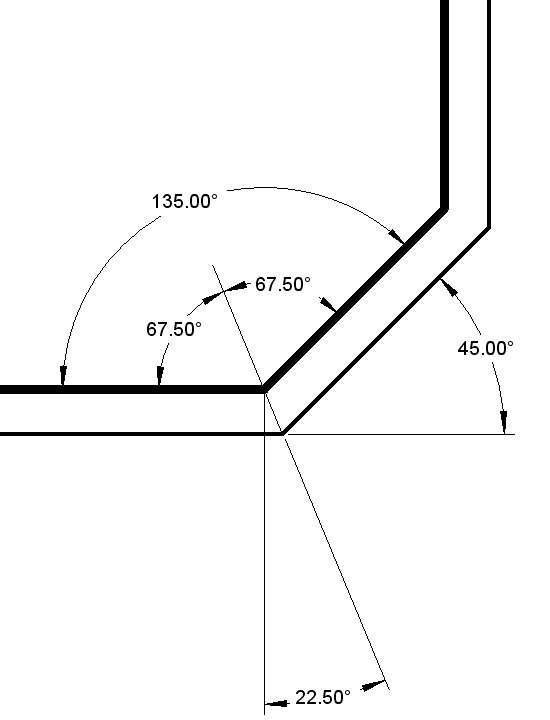

For a perfect 45 degree diagonal countertop corner, the interior angle is 135 degrees. The trim pieces can be cut on any two angles that add up to 135 degrees. You could do 90/45, 67.5/67.5, 45/90, or any combination adding up to 135 degrees depending on how you want the seam to look. I doubt the corner cut is perfect, you'll probably need to start with the diagonal piece and then fit the side trim.

Scleros · Jun 3, 2008, 12:10 AM

FYI: Diagram was done with a very old free copy of TurboCAD 4. I also like ProgeCAD's free version: ProgeCAD LT/Smart/Whatever-the-heck-they-are-calling-it-today.

Please, post a pic of finished countertop.

pattyg2 · Jun 6, 2008, 11:14 AM

Originally Posted by Scleros

FYI: Diagram was done with a very old free copy of TurboCAD 4. I also like ProgeCAD's free version: ProgeCAD LT/Smart/Whatever-the-heck-they-are-calling-it-today.

Please, post a pic of finished countertop.

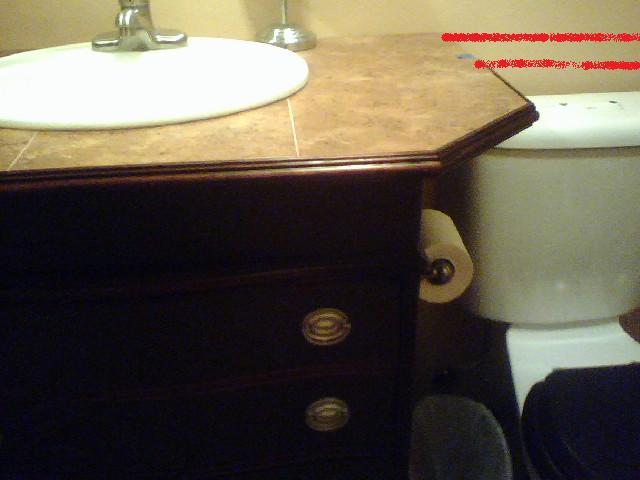

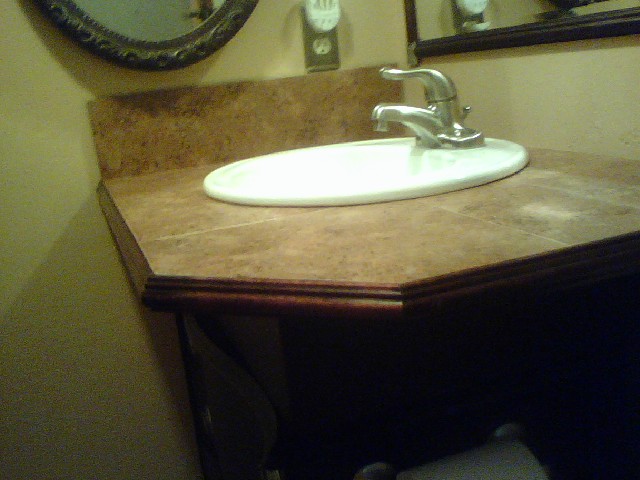

Here are a couple of pictures. Still working on the backsplash design and piece for over the toilet tank. Name: vanity with trim and extension over toilet.jpg
Views: 4020
Size: 28.3 KB

Name: vanity with trim and extension over toilet.jpg
Views: 4020
Size: 28.3 KB

Name: vanity with trim2.jpg
Views: 3114
Size: 74.0 KB
