    Split unit, compresson working but fan doesn't
    I would like to say this website was very helpful, I learned a lot. Now for my question, I installed a split unit everything works, except the fan. All the wiring to the unit is correct, I had the assumption that the fan turned on after the unit got hot, but after running it for a while I found out that I was wrong.

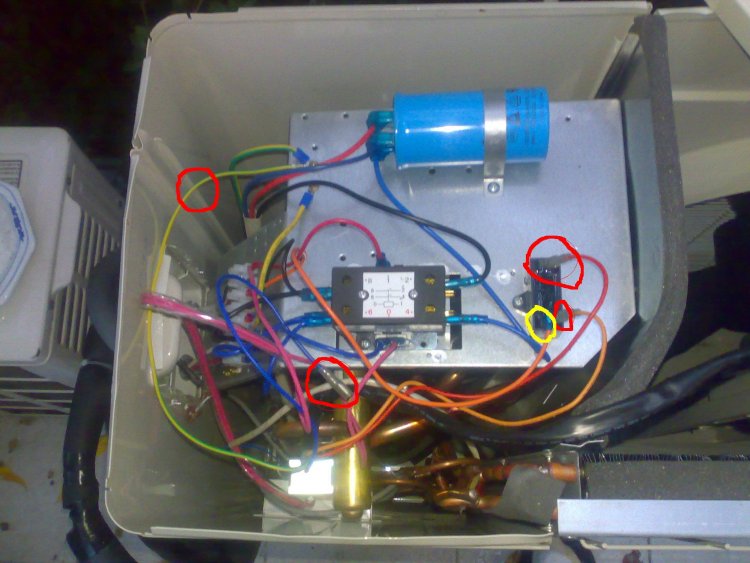

    The fan has four wires coming (they have a red circle so its easy to see) one is red, orange, blue and yellow with green stripes. The blue one is not connected. Can someone tell me where to connect this wire. The orange wire with a yellow circle is from the inside unit it reads 120volts when the unit is on. The whole unit is 240.

    Thanks for your help, I really appreciate it.
    Attached Images

    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #2

    Jun 13, 2009, 06:11 PM
    I can do much better with a wiring diagram from the unit. If you have one please post it.
    letmetellu's Avatar
    letmetellu Posts: 3,151, Reputation: 317
    Ultra Member

    #3

    Jun 13, 2009, 06:28 PM

    You say the wiring is correct, so what makes you think so since the one wire is not connected.

    It would be helpful is you could send the information that is on the wiring diagram, just take a picture if you can.
    matthewlam88's Avatar
    matthewlam88 Posts: 6, Reputation: 1
    New Member

    #4

    Jun 13, 2009, 06:34 PM

    The blue wire was connected to the relay. I read up on fan motors and it mentioned that some motor fans are connected with dual capacitors, a start cap and run cap. I was going to plug it into the start cap, but decided to ask the question first.
    letmetellu's Avatar
    letmetellu Posts: 3,151, Reputation: 317
    Ultra Member

    #5

    Jun 13, 2009, 06:37 PM

    Don't plug it anywhere until you know for sure where it goes, you could damage the motor.
    letmetellu's Avatar
    letmetellu Posts: 3,151, Reputation: 317
    Ultra Member

    #6

    Jun 13, 2009, 06:38 PM
    If you can't send the wiring diagram then look at the diagram and tell us what it says.
    matthewlam88's Avatar
    matthewlam88 Posts: 6, Reputation: 1
    New Member

    #7

    Jun 13, 2009, 06:45 PM

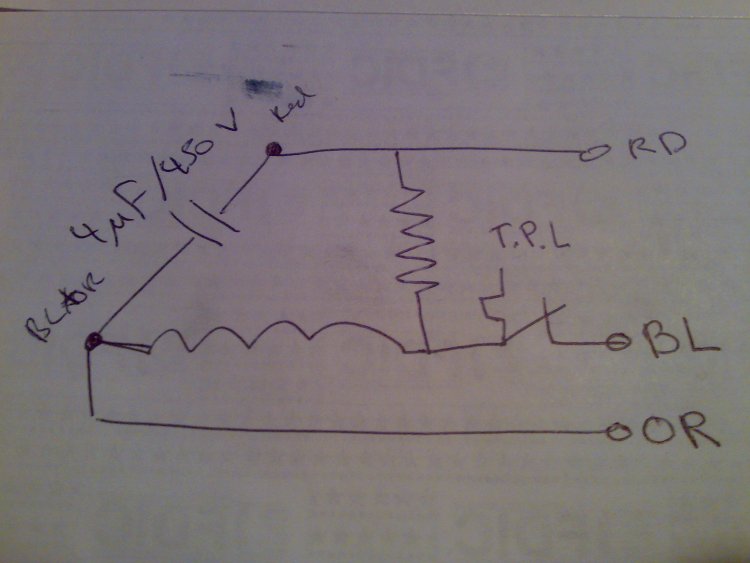

    I couldn't take the picture directly so I drew it by hand. The BL stands for blue not black. Can someone please tell me what TPL stands for, thanks
    Attached Images

    matthewlam88's Avatar
    matthewlam88 Posts: 6, Reputation: 1
    New Member

    #8

    Jun 13, 2009, 07:18 PM

    Sorry I forgot to mention that this diagram was on the fan, that's the only diagram I found.
    Joshdta's Avatar
    Joshdta Posts: 2,549, Reputation: 45
    Ultra Member

    #9

    Jun 13, 2009, 07:22 PM

    Looks like blue goes to the contactor
    matthewlam88's Avatar
    matthewlam88 Posts: 6, Reputation: 1
    New Member

    #10

    Jun 19, 2009, 02:53 PM

    I tried that this week, but it didn't work. Is there a way I can test if the fan works? Thanks
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #11

    Jun 19, 2009, 05:59 PM
    Exact brand?
    Exact model number?
    matthewlam88's Avatar
    matthewlam88 Posts: 6, Reputation: 1
    New Member

    #12

    Jun 28, 2009, 04:47 PM

    Sorry for the long delay,

    Brand:Haier

    Model number: HSUC18VHC-W
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #13

    Jun 28, 2009, 04:56 PM
    I am not for sure but I believe that is a China unit. Contact these folks since I have no info for that brand or units. Sorry

    135-23 Northern Blvd.
    Flushing, NY 11354
    Tel: (718) 888-9944
    Fax: (718) 359-0460
    Email:[email protected]
