    Pilot light on intertherm furnace model g
    How do we light the pilot light on an older model intertherm furnace ?
    hvacservicetech_07's Avatar
    hvacservicetech_07 Posts: 1,083, Reputation: 75
    Ultra Member

    #2

    Oct 11, 2009, 03:18 PM

    Are you able to see the pilot assembly where the pilot light should be?
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #3

    Oct 11, 2009, 03:25 PM

    No I can not see the pilot light - and I don't know if the ignitor is working thanks
    hvacservicetech_07's Avatar
    hvacservicetech_07 Posts: 1,083, Reputation: 75
    Ultra Member

    #4

    Oct 11, 2009, 03:29 PM

    What's the model number of the furnace? This furnace may not have a pilot light.
    hvacservicetech_07's Avatar
    hvacservicetech_07 Posts: 1,083, Reputation: 75
    Ultra Member

    #5

    Oct 11, 2009, 03:31 PM
    This is a mobil home furnace so everything is sealed,if it is new enough it may be hot surface ignition. Does it have a little round hinged door that you can open to see the pilot light?
    mygirlsdad77's Avatar
    mygirlsdad77 Posts: 5,713, Reputation: 339
    Plumbing Expert

    #6

    Oct 11, 2009, 04:34 PM

    Can you post a pic of your furnace with covers off. This will let us know if you have a glow plug(hot surface igniter) or standing pilot. Then we will be able to give further advice. Thanks. Lee.
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #7

    Oct 11, 2009, 06:58 PM

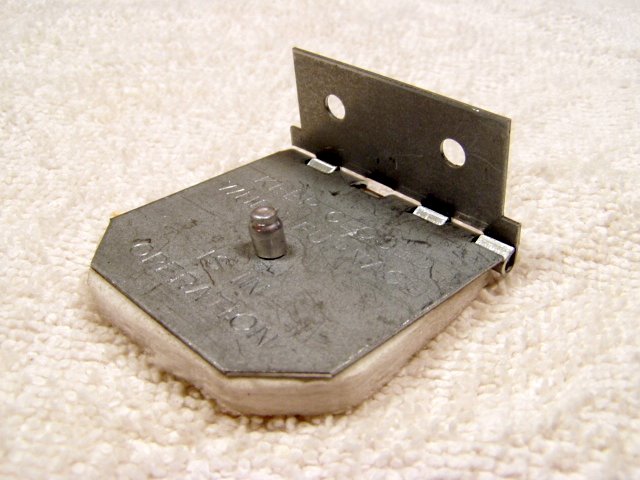

    If you have a peep hole cover like the one poster here you will need a long butane lighter or a long match extender to get to the pilot lite inside. The earlier G model you mentioned is one that uses this system for lighting a pilot lite. They are a pain to do and that is why I have a long butane lighter as posted here.
    Attached Images

    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #8

    Oct 12, 2009, 08:52 AM
    Hi lee - I have a picture of the intertherm furnace that we can not light - how do I attach it and send it to you? [img]s6300699[/img]
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #9

    Oct 12, 2009, 09:12 AM
    Name: INTERTHERM FURNACE BURNER MODELG 005.jpg Views: 19032 Size: 66.7 KB here is a picture if our intertherm furnace - burner model g that won't ignite - please help thanku
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #10

    Oct 12, 2009, 09:19 AM
    Name: INTERTHERM FURNACE BURNER MODELG 005.jpg Views: 3291 Size: 66.7 KB
    Quote Originally Posted by mygirlsdad77 View Post
    can you post a pic of your furnace with covers off. This will let us know if you have a glow plug(hot surface igniter) or standing pilot. Then we will be able to give further advice. Thanks. Lee.
    I hope you received this photo - please let me know - we need help to get this furnace going - thanku colleen
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #11

    Oct 12, 2009, 09:32 AM

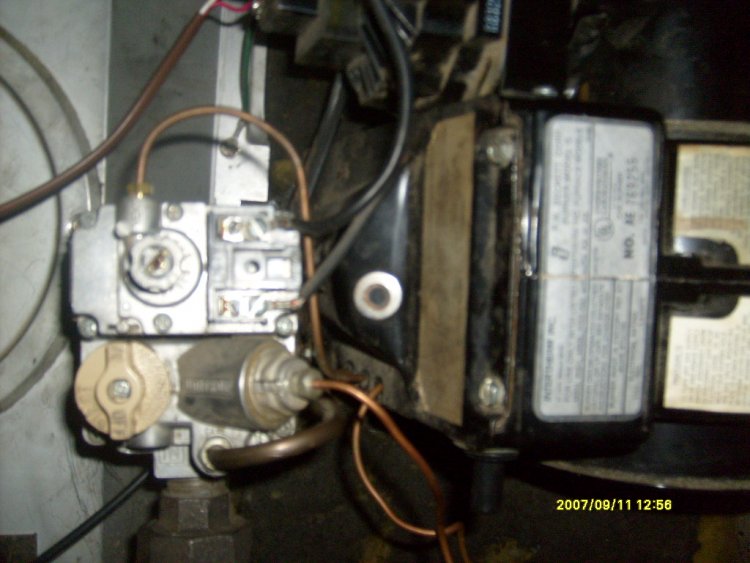

    You have a standing pilot furnace since it has a thermocouple safety. If you can move the camera over to the left and take another picture we can at least locate the peep hole you have to look into to light the pilot.
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #12

    Oct 12, 2009, 09:45 AM
    [attach]Name: INTERTHERM FURNACE BURNER MODELG 005.jpg Views: 2083 Size: 66.7 KB[/attach] hi did you get both pictures ? Let us know thank you colleen
    Attached Images

    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #13

    Oct 12, 2009, 09:48 AM
    [attach]Name: INTERTHERM FURNACE BURNER MODELG 001.jpg Views: 2351 Size: 56.9 KB[/attach]
    Quote Originally Posted by hvac1000 View Post
    you have a standing pilot furnace since it has a thermocouple safety. If you can move the camera over to the left and take another picture we can at least locate the peep hole you have to look into to light the pilot.
    Hopefully you got the pictures - let us know - thank you colleen
    Attached Images

    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #14

    Oct 12, 2009, 09:53 AM
    I am not for sure but I think you posted a picture of your wood stove. LOL Try again please.
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #15

    Oct 12, 2009, 09:57 AM
    Sorry I resent - did you get them lol
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #16

    Oct 12, 2009, 10:06 AM
    The pictures you are sending are showing up here on the board but the one I am looking for has not been posted yet. I need a picture farther to the left of the gas valve so I can try and see where the access door is for lighting the pilot. I will soon be leaving this computer going back to finish teaching the HVAC class at the university so someone else may pick up this thread and help you. Be back in a hour or so.
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #17

    Oct 12, 2009, 10:45 AM
    Can I have your email address and I can send the pictures that way - I am getting frustrated trying to send you the new pictures - thankyu colleen
    Attached Images

    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #18

    Oct 13, 2009, 09:45 AM
    [attach][attach]Name: pic#5 001.jpg Views: 2111 Size: 54.4 KB

    Name: colleen's camera 003.jpg Views: 2014 Size: 52.4 KB

    Name: colleen's camera 002.jpg Views: 1961 Size: 54.4 KB[/attach][/attach]Name: pic#5 001.jpg Views: 2111 Size: 54.4 KB good morning - hope these are the right pictures - please let me know - thanku
    Colleen
    collken's Avatar
    collken Posts: 13, Reputation: 1
    New Member

    #19

    Oct 13, 2009, 02:09 PM
    [ATTACH] [ATTACH] Name: pic#5 002.jpg Views: 4729 Size: 52.4 KB[/ATTACH][/ATTACH] please could you let us know if you got these pictures and advise us how to start this furnace thanks - 2nd request
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #20

    Oct 13, 2009, 02:15 PM

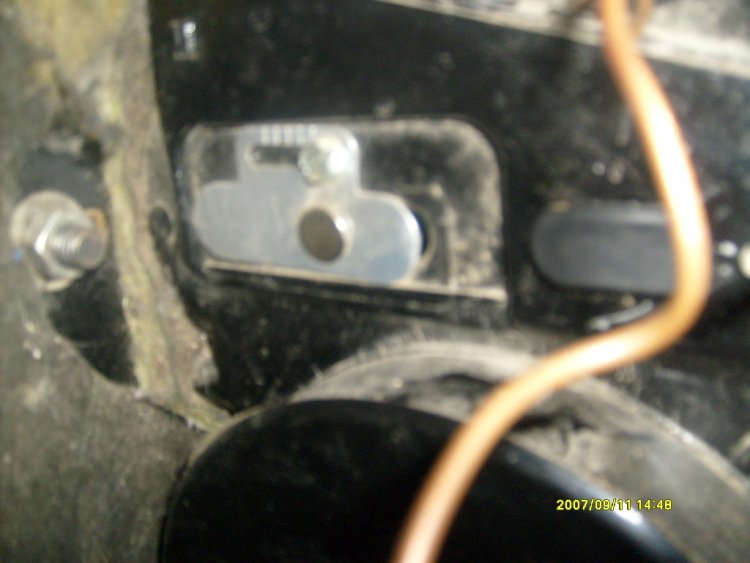

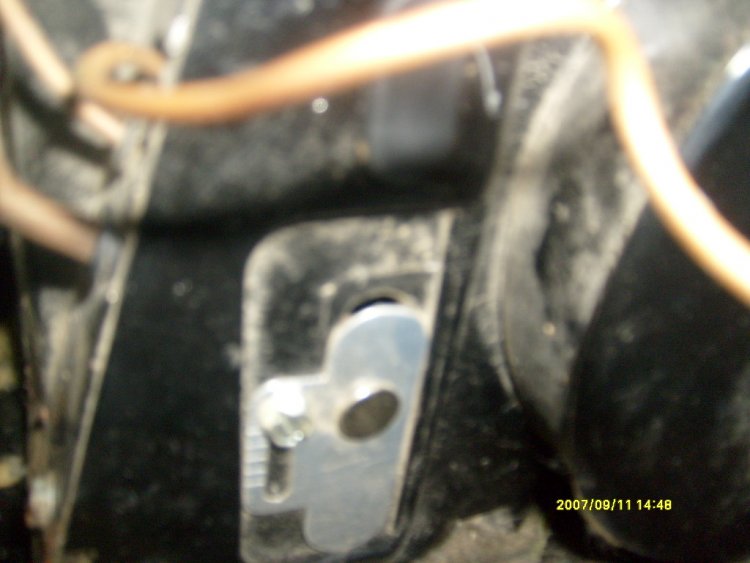

    I saw the pictures a bit ago but they are taken to close to the unit. Back off a few feet so I can see the entire burner setup. I can see the thermocouple in the other pics but I cannot see exactly where it goes.
