I just purchased a Beacon Morris garage heater. It is a BRU-75. I was wondering if anyone could tell me where I could purchase a thermostat for this particular model. I want to have a switch on the thermostat that will let me shut off the unit when I don't want it to run. I don't want to heat the garage all the time. It will not run an AC unit so I need a heat only thermostat. I checked at Menards and I don't think that they had one.
The second question is, how do you hook up the thermostat? The unit comes with directions but they certainly are not intended for layman such as myself. Any help would be greatly appreciated.
On the back of the unit it has terminals labeled R G W1 W2. Which two would I use? Since I want a thermostat with a switch on it, do I somehow hook it up so if the switch should get turned off while heating, the fan will stay running until the unit cools?
You really should check and or adjust gas pressure to be safe,especially if you are L.P gas. You will need a manometer to do so. If your gas pressure is too high you risk ruining your heat exchanger. Good luck!

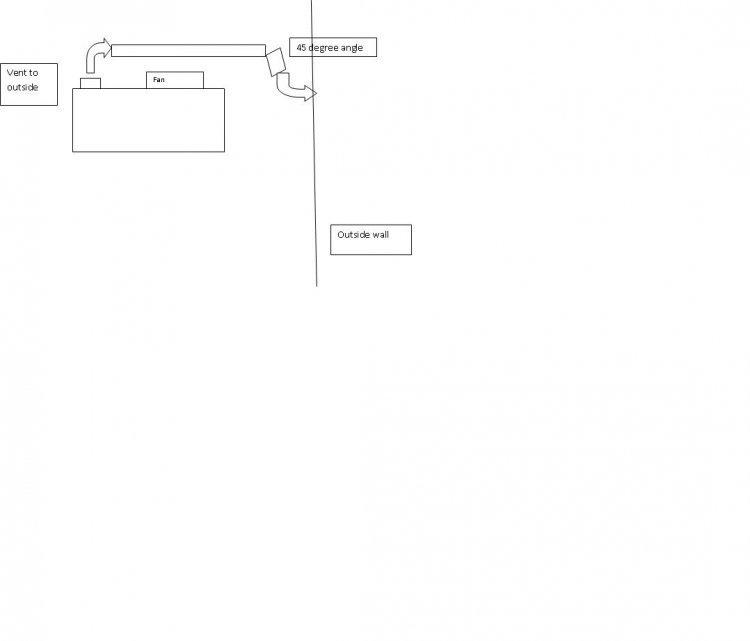

Thanks for all the great help so far everyone. I hung the heater this weekend. I ran into a problem with venting to the outside. When I run the class be vent tubing, I need to run horiztonally with a slight pitch. Can I run the vent with a 90 degree elbow directly off the back of the unit, across the width of the unit, and then add a 45 degree angle just before it goes through the outside wall? I will attach a very rough sketch if I can figure out how to add attachment.
Sorry hvacservicetech_07 I meant so say agrees. I don't know why It says disagrees. I don't know how to change it.
I think your right. So now the question is how hard would it be to vent out of the roof. I am afraid to cut a hole in the roof because I am not sure how to make it water tight. Hmmm, I am going to have to think about this one.
