    Gas Fireplace Pilot Light Circuit Issue/Question
    I have a gas fireplace which the pilot won't stay lit. It lights but shuts down when I turn the valve to "on."
    The gas valve is a Robertshaw.

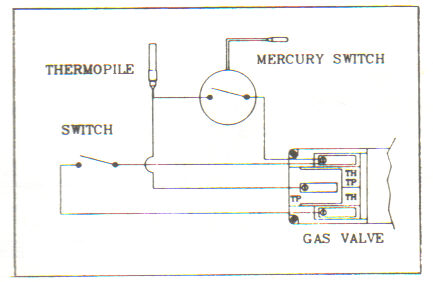

    The thermocouple puts out 0.5 volts. What I don't understand, the pilot light circuit includes a Robertshaw mercury switch in series with the thermocouple. I've attached a schematic. It appears this mercury switch is bad. If I short across the mercury switch terminals the pilot light stays on and the fireplace lights and works fine. Why is this switch there? Seems like it isn't necessary. Is it really needed? The switch probe is next to the thermocouple probe at the pilot light. Mercury switches are hard to get. From what I can find, Robertshaw does not make them anymore. The other switch in the schematic is just an on/off switch to light the burner.
    Thanks for the help!
    Attached Images


Check out some similar questions!

Pilot light goes out on gas fireplace about every 10 minutes [ 2 Answers ]

Our pilot light keeps going out on our gas fireplace. It lights fine and we have a full tank of gas. It was working fine and then it started to do this. It could be dirty. How would I clean it. We have had very low tempetures in the past few days. It has never done this in the past. O'Neilmom

Gas fireplace pilot light goes out on own [ 1 Answers ]

We had our fireplace checked up by a service tech. he had the fireplace working with the pilot light visible to the eye that showed it was on. However, we just tried to turn on the electric ignition gas fireplace and discovered tha the pilot light is off. What could be causing the flame to blow...

Does gas emit in the house when pilot light of gas fireplace goes out? [ 2 Answers ]

I have a gas fireplace and on a windy day the pilot light actually went out. My dad said that even though the pilot light isn't on it's emitting gas into the house- which is a health hazard, but I thought that as long as the switch that turns on the light is off there is no risk. Can anyone tell me...

Pilot light on gas fireplace [ 1 Answers ]

The pilot light on my gas fireplace is too high I think. How do you adjust the pilot light?
