    Carrier Heater blowing cold air
    Hello,

    Everything was working fine and then today my heater is blowing cold air.
    I have Carrier Model: 48SX-036080321AA and not sure yet, if there is any error lights on the electronic board, as my unit is in top of my 2 story home and the roof is little ice as is around 28'f this morning here.

    So any advice on this matter? What could be the problem?

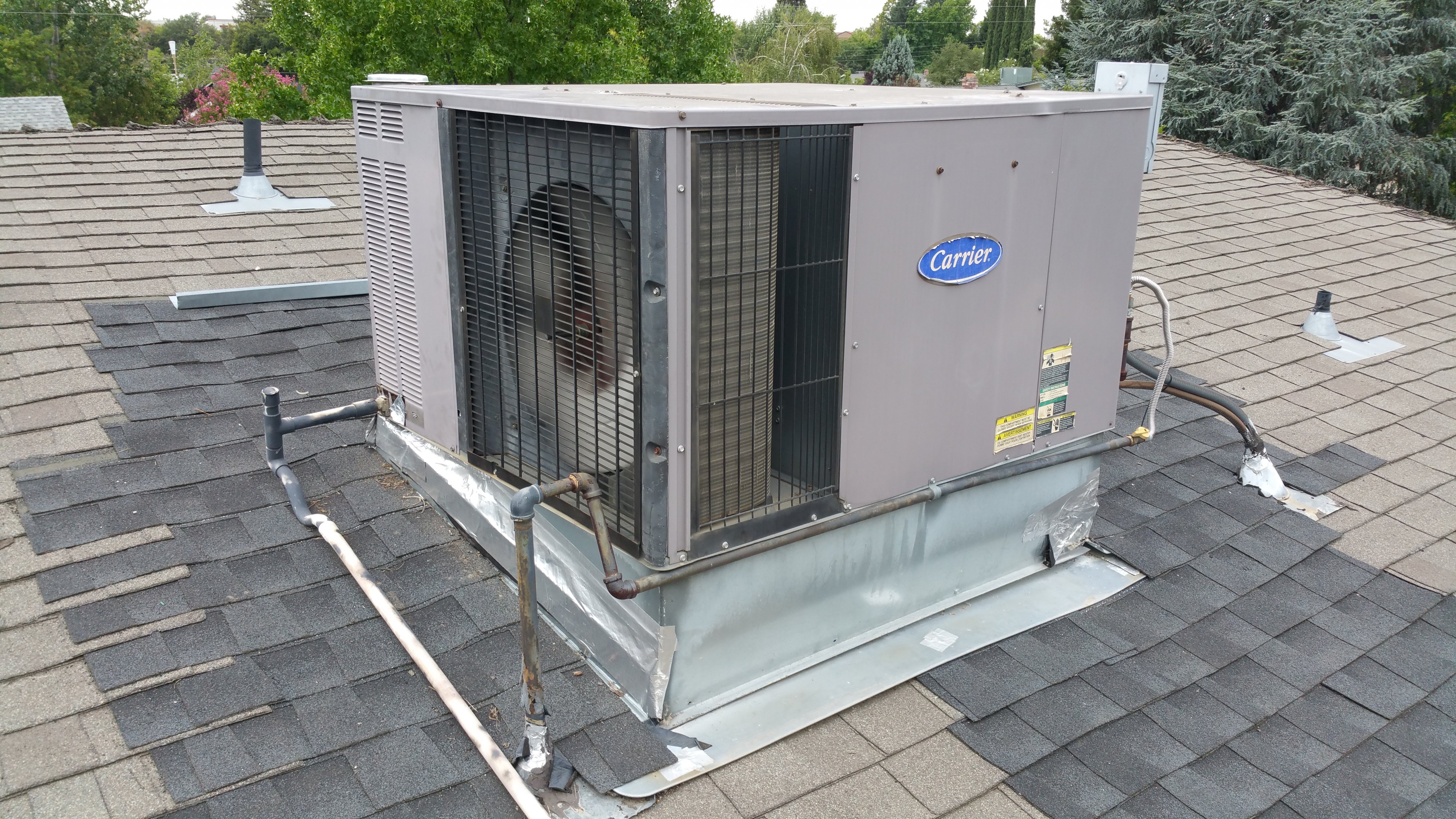

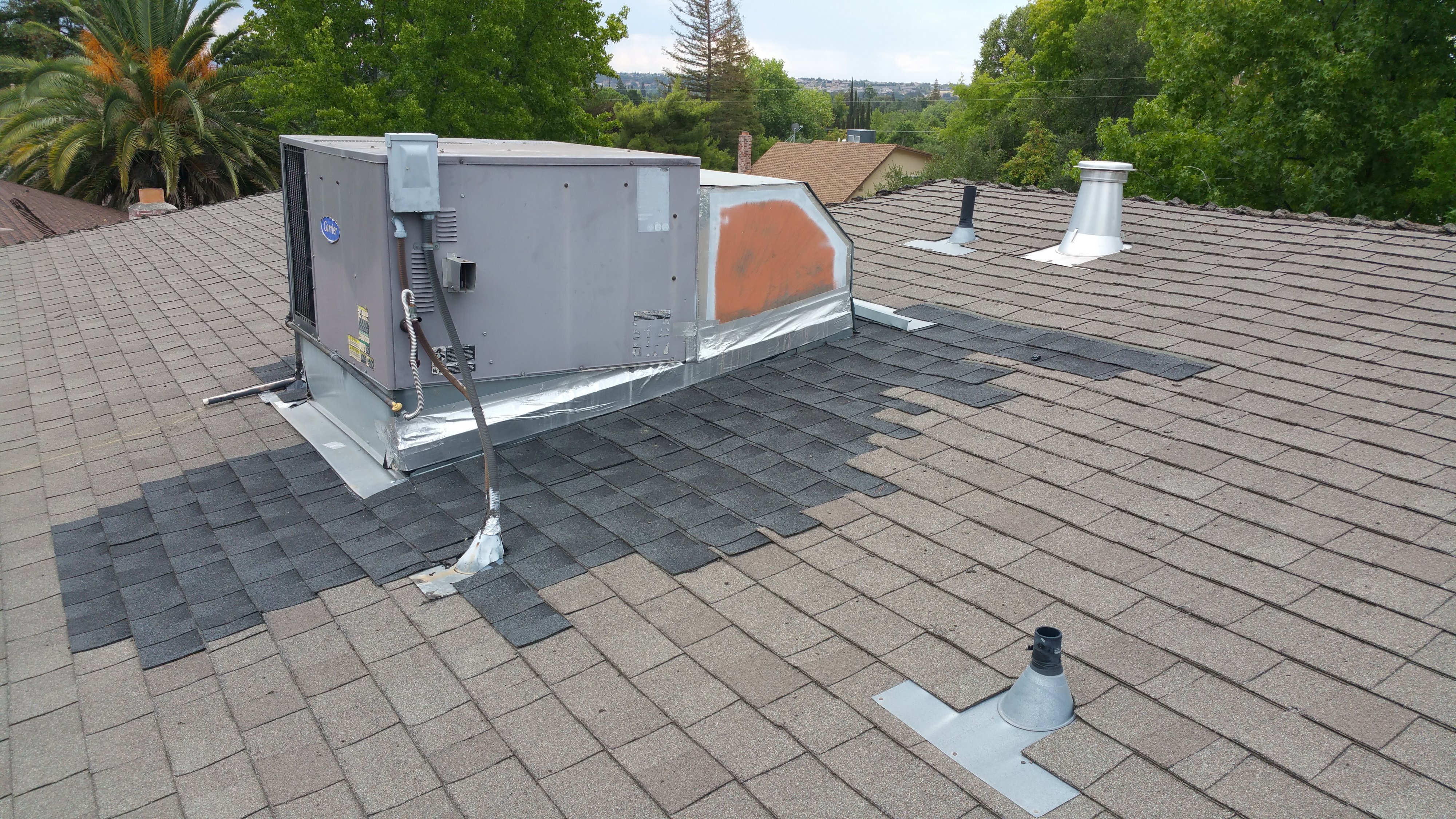

    Few pictures of my unit see bellow.

    Thanks for any advice!Name: 20150731_084016.jpg Views: 840 Size: 2.08 MBName: 20150731_084039.jpg Views: 946 Size: 2.34 MBName: ac heating (1).jpg Views: 1062 Size: 1.27 MBName: ac heating (2).jpg Views: 1297 Size: 1.24 MBName: ac heating (3).jpg Views: 854 Size: 1.04 MB
    nemtulea's Avatar
    nemtulea Posts: 3, Reputation: 1
    New Member

    #2

    Nov 28, 2015, 11:58 AM
    Hmm, I see no error light codes, and now it works. Not sure what happen! Maybe is related to the heater boiler ? Or is there a filter to replace at a/c heating unit?
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #3

    Nov 28, 2015, 12:52 PM
    Boiler? Looks like forced air to me. Filter is probably in the central return .
    cdad's Avatar
    cdad Posts: 12,700, Reputation: 1438
    Internet Research Expert

    #4

    Nov 28, 2015, 01:09 PM

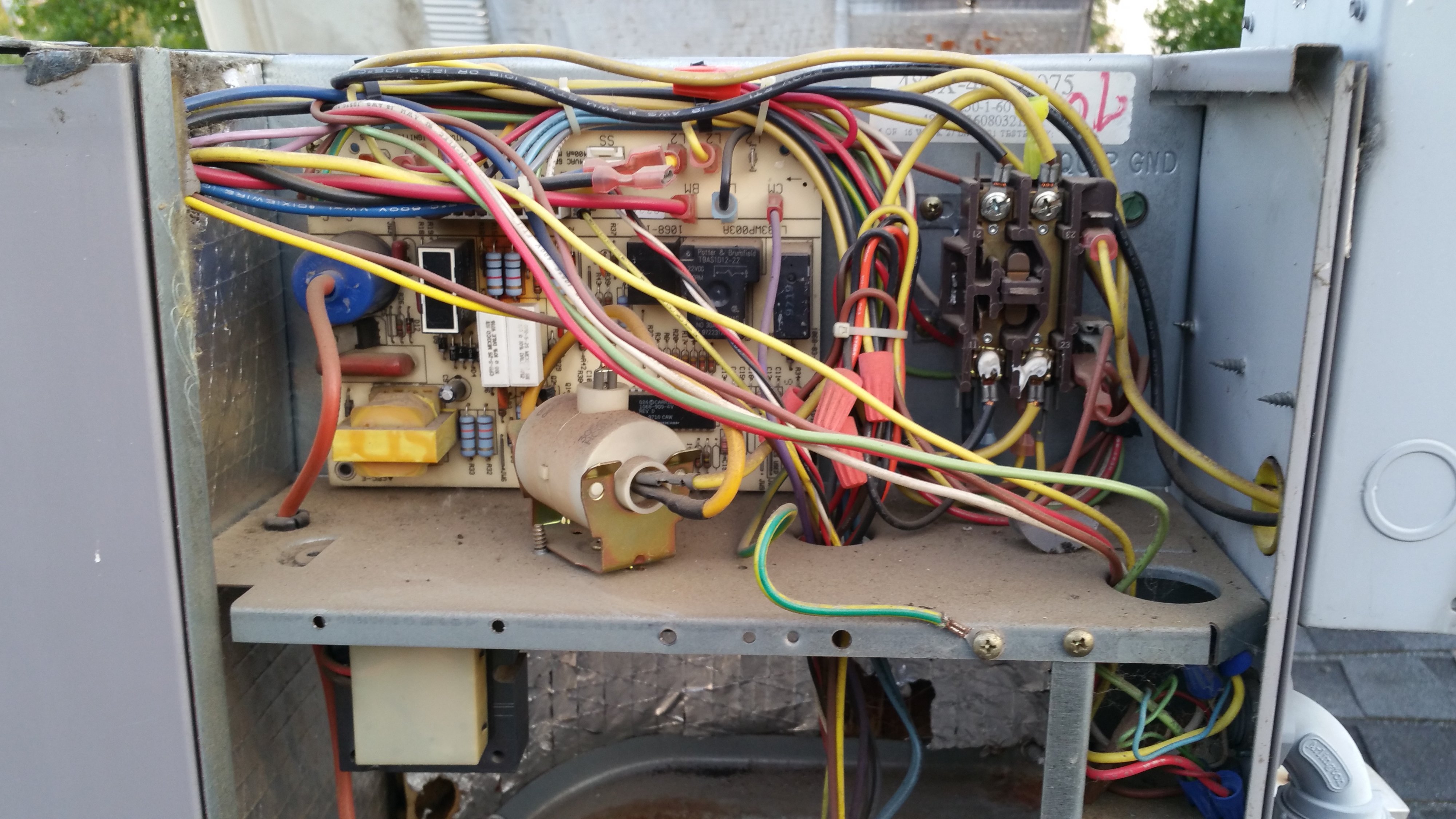

    Also from your picture the contact tips look burned. You might want to clean them if enough tip is left or just replace them. Also is your ignitor clean?

    When you had the problem was there any sound coming from the unit like a clicking sound while it was running ?
    nemtulea's Avatar
    nemtulea Posts: 3, Reputation: 1
    New Member

    #5

    Nov 28, 2015, 03:57 PM
    Quote Originally Posted by ma0641 View Post
    Boiler? Looks like forced air to me. Filter is probably in the central return .
    Hello,

    I mean water heater in the garage.
    And first picture with that condenser fan running is not from today! Forgot to mention.So that fan was off,when this happen.
    The filters I have one on second level and one filter down stairs.

    Thank you.

    Quote Originally Posted by cdad View Post
    Also from your picture the contact tips look burned. You might want to clean them if enough tip is left or just replace them. Also is your ignitor clean?

    When you had the problem was there any sound coming from the unit like a clicking sound while it was running ?
    Hello, and thank you for advice.

    Can you point me what tips look burned?

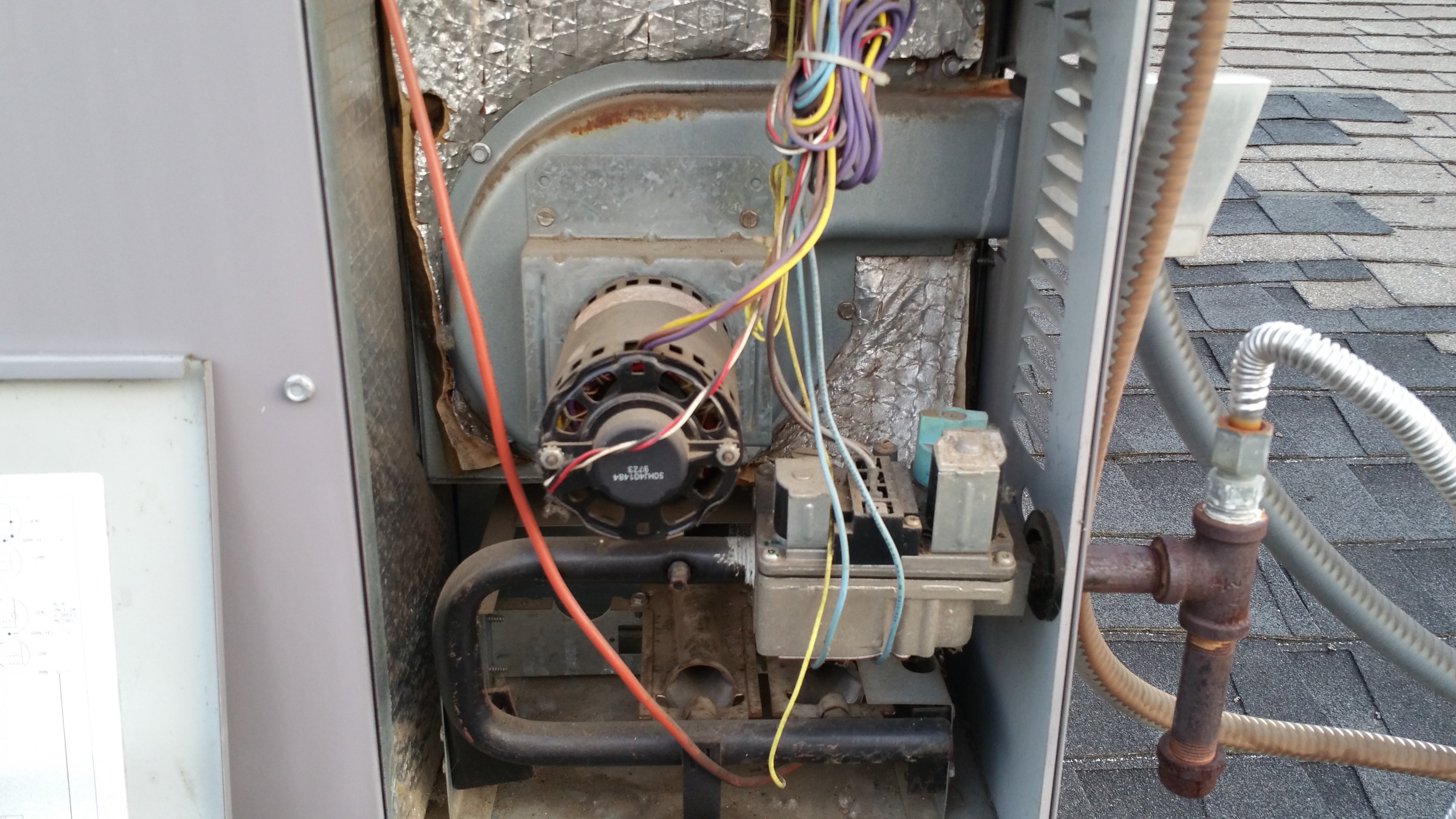

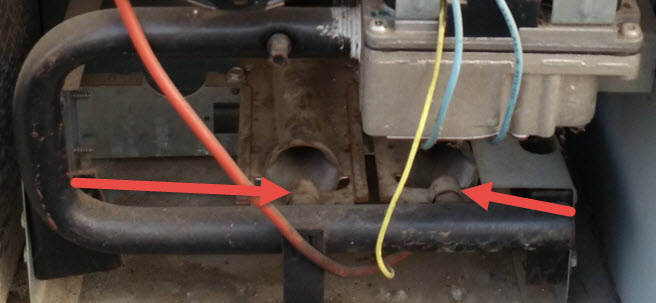

    See attached picture.

    Not sure exactly witch one is the igniter... And no clicking heard.

    Thank you,
    Attached Images

    cdad's Avatar
    cdad Posts: 12,700, Reputation: 1438
    Internet Research Expert

    #6

    Dec 1, 2015, 06:55 PM
    The tips are on the contactor. They are seen in the picture with a yellow and a black wire connected to them.

    rh upper corner.
