    Wiring two recessed lights with an end run switch
    I was wondering how to wire two recessed can lights using a 20 amp breaker. I plan to run 12/2 wire(my power) to the first can then connect the second can then run 12/2 wire from the last can down to a single pole switch. Can I do all of this with 12/2 or do I need to use 12/3 between the cans. If I need 12/3 how do I wire this. Thanks.
    ballengerb1's Avatar
    ballengerb1 Posts: 27,379, Reputation: 2280
    Home Repair & Remodeling Expert

    #2

    Dec 6, 2009, 05:52 PM

    Seems like your wire and your breaker are over kill for 2 recessed light s but it can be done. You are only running a hot to the single pole switch, the other wire becomes hot once you throw the switch and that wire along with a white neutral are all that runs to the light fixtures. We do recommend that you also ground fixtures with bare or green ground, usually already in a 12/2
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #3

    Dec 6, 2009, 06:00 PM

    ..

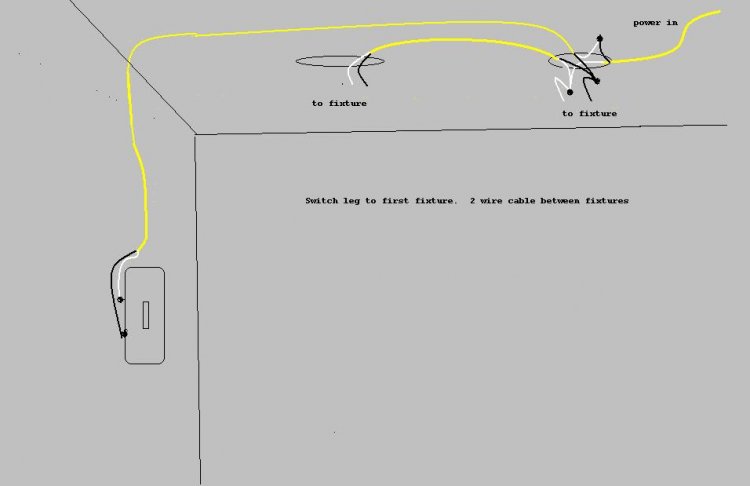

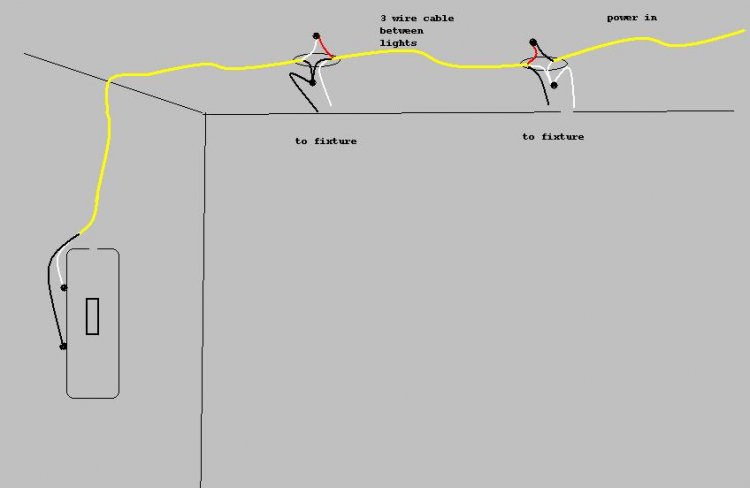

    Attached Images

    smitty1039's Avatar
    smitty1039 Posts: 5, Reputation: 1
    New Member

    #4

    Dec 7, 2009, 06:55 AM

    Thank you both for your replies, they will greatly help
