    Wiring in multiple light switches
    I need a wiring diagram for wiring in three switches in the same box all switches are for different lights.
    tkrussell's Avatar
    tkrussell Posts: 9,655, Reputation: 724
    Uber Member

    #2

    Nov 28, 2008, 08:36 AM

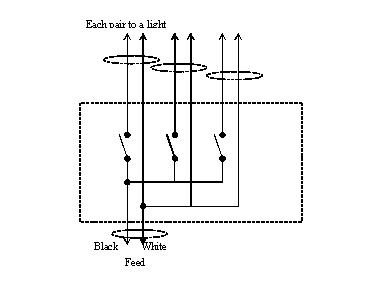

    Here you go...
    Attached Images

    Stratmando's Avatar
    Stratmando Posts: 11,188, Reputation: 508
    Uber Member

    #3

    Nov 28, 2008, 04:24 PM

    Just to add to above excellent diagram, all grounds need to be connected and intact.
