    Wiring 3 switches for 3 lights
    Hi,need a digram on wiring 3 switches in a gang box to 3 diff lights,I took power from a receptacle,I got one light to work,but need to know how to wire the other 2 lights and switches,also I am using 3 dimmer switches,the lighting is for a lionel train platform.thanks for your help,rich
    Stratmando's Avatar
    Stratmando Posts: 11,188, Reputation: 508
    Uber Member

    #2

    Nov 24, 2007, 06:40 PM
    With power Off, Connect the hot wire to all three dimmers, the 3 wires from the 3 dimmers go to the 3 lights.
    tkrussell's Avatar
    tkrussell Posts: 9,659, Reputation: 725
    Uber Member

    #3

    Nov 25, 2007, 07:44 AM

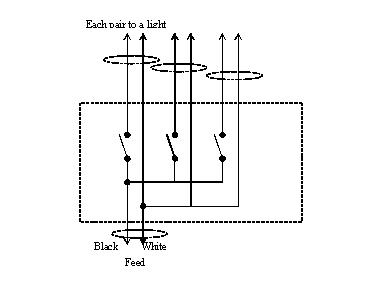

    Will this diagram help?
    richb's Avatar
    richb Posts: 3, Reputation: 1
    New Member

    #4

    Nov 25, 2007, 07:49 AM
    Comment on Stratmando's post
    What I had in mind ,was nt sure ,great ,thanks
    richb's Avatar
    richb Posts: 3, Reputation: 1
    New Member

    #5

    Nov 25, 2007, 07:50 AM
    Comment on tkrussell's post
    Super ,what I had in mind ,was nt sure,diagram ,perfect ,thanks ,rich
    aaronlongo's Avatar
    aaronlongo Posts: 7, Reputation: 1
    New Member

    #6

    Jan 1, 2011, 04:35 PM
    Comment on tkrussell's post
    Where is your diagram?
    tkrussell's Avatar
    tkrussell Posts: 9,659, Reputation: 725
    Uber Member

    #7

    Jan 2, 2011, 05:40 AM
    See below.

    Quote Originally Posted by aaronlongo View Post
    where is your diagram?
    Attached Images

    Missouri Bound's Avatar
    Missouri Bound Posts: 1,532, Reputation: 94
    Ultra Member

    #8

    Jan 3, 2011, 07:50 AM
    TK, is that hand drawn or do you use a program?
    tkrussell's Avatar
    tkrussell Posts: 9,659, Reputation: 725
    Uber Member

    #9

    Jan 3, 2011, 08:19 AM

    I use Microsoft Word and use the Draw tool.

    A bit clunky, but works. I wish I had something better.
