    emp1953's Avatar
    emp1953 Posts: 5, Reputation: 1
    New Member

    #1

    Feb 26, 2015, 08:14 AM
    Upgrading main CB panel
    NEC code specifies that my 200amp main will only be allowed to handle a 40amp backfeed from a PV solar array. I need more than 40amps. I want to upgrade my main panel to 400amp and derate the main breaker to 200amps. Is this an acceptable approach? Are all 400amp panels 3phase. I believe my current service is 2phase, this is residential.
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #2

    Feb 26, 2015, 09:17 AM
    Residential is single phase. A 400amp panel is still single phase.
    hfcarson's Avatar
    hfcarson Posts: 1,003, Reputation: 49
    Ultra Member

    #3

    Feb 26, 2015, 10:37 AM
    The code section is NEC 705.12(D)(2)...
    You are limited to 120% of bus rating of the panel. Check the label on your panel, some are rated at 225 amperes...
    You could install a 200 ampere main circuit breaker panel with 225 ampere rated bus that would allow a PV input of 70 amperes...

    Single phase panels are available in many different sizes and ratings from different manufacturers.
    emp1953's Avatar
    emp1953 Posts: 5, Reputation: 1
    New Member

    #4

    Feb 26, 2015, 02:54 PM
    I have a picture of the label, There is no way to put that into a reply. How can I get the label picture to you? I think it is stuck at 200amps but I would like a trained eye to verify it.
    Thanks
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #5

    Feb 26, 2015, 03:54 PM
    Post a picture. Click on the "Go Advanced" button.
    emp1953's Avatar
    emp1953 Posts: 5, Reputation: 1
    New Member

    #6

    Feb 27, 2015, 08:40 AM

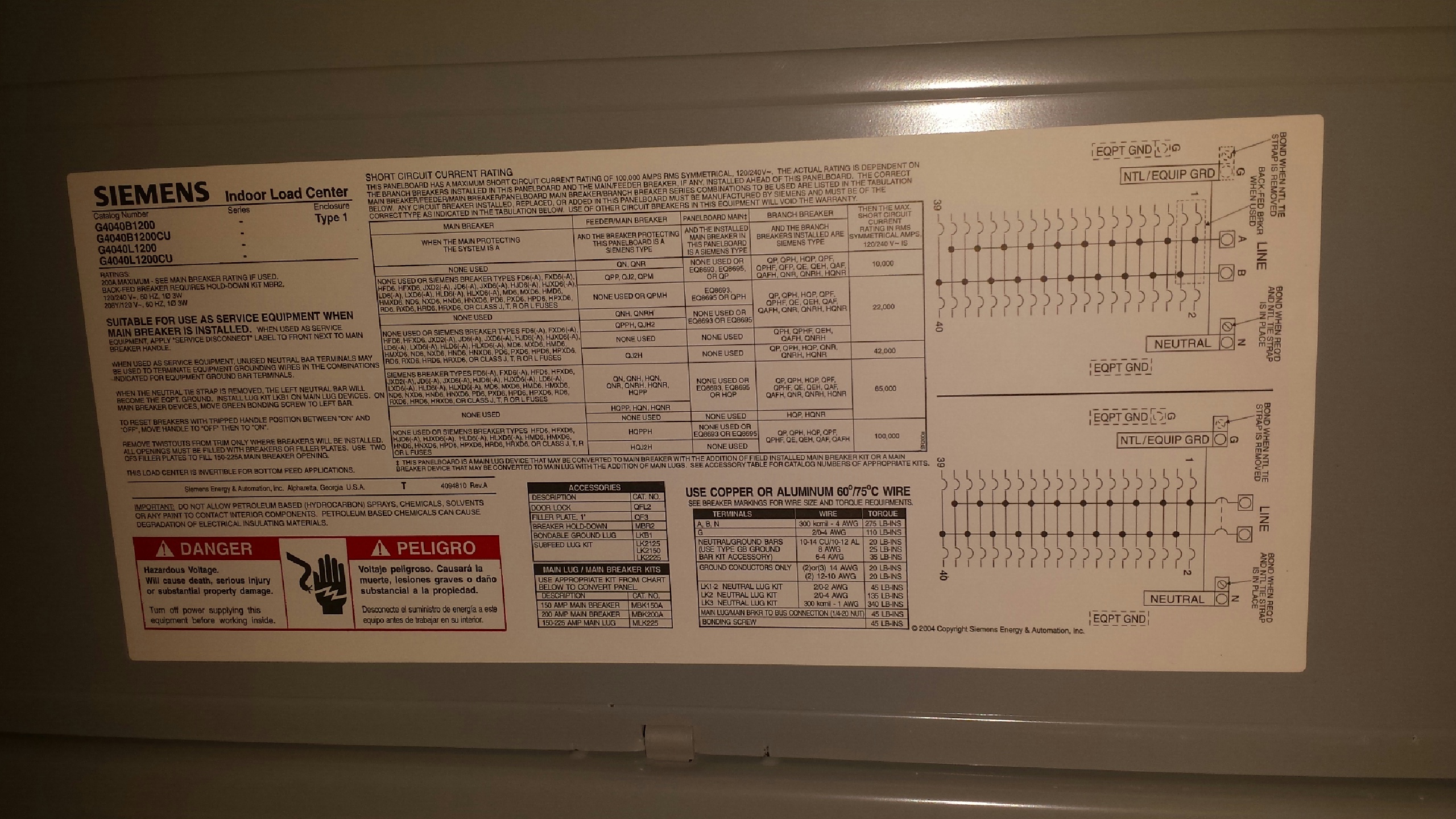

    Label attached
    Name: 20150226_162834.jpeg Views: 108 Size: 1.08 MB
    hfcarson's Avatar
    hfcarson Posts: 1,003, Reputation: 49
    Ultra Member

    #7

    Feb 27, 2015, 08:51 AM
    See the top left corner... "200 amperes maximum"
    How much do you want to connect to the panel?
    emp1953's Avatar
    emp1953 Posts: 5, Reputation: 1
    New Member

    #8

    Feb 27, 2015, 12:18 PM
    Quote Originally Posted by hfcarson View Post
    See the top left corner... "200 amperes maximum"
    How much do you want to connect to the panel?
    80 amps from a PV solar array.
    hfcarson's Avatar
    hfcarson Posts: 1,003, Reputation: 49
    Ultra Member

    #9

    Feb 27, 2015, 01:21 PM
    Have you read the electrical code to consider any of the alternatives?
    by the way...if my math is close, do you have around 100 solar panels?
    emp1953's Avatar
    emp1953 Posts: 5, Reputation: 1
    New Member

    #10

    Mar 3, 2015, 09:15 AM
    Quote Originally Posted by hfcarson View Post
    Have you read the electrical code to consider any of the alternatives?
    by the way...if my math is close, do you have around 100 solar panels?
    No, they are 315watt panels, there are 60 panels.

    I could degrade the main breaker to 175amps. I cannot find a 175amp main breaker for a Siemens panel. Does anyone know where to get one? Or does a 175amp even exist?
