    Separate Fan light switch, fan switch and switch for can lights to one location
    I have A circuit that has 6 can lights and a fan light.
    The power is at the switch box
    I need to know how to wire the separate switches for the cans,and the light on the fan, and fan (That would be in a three gang switch box.) to one location.
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Mar 4, 2010, 06:27 AM

    ..

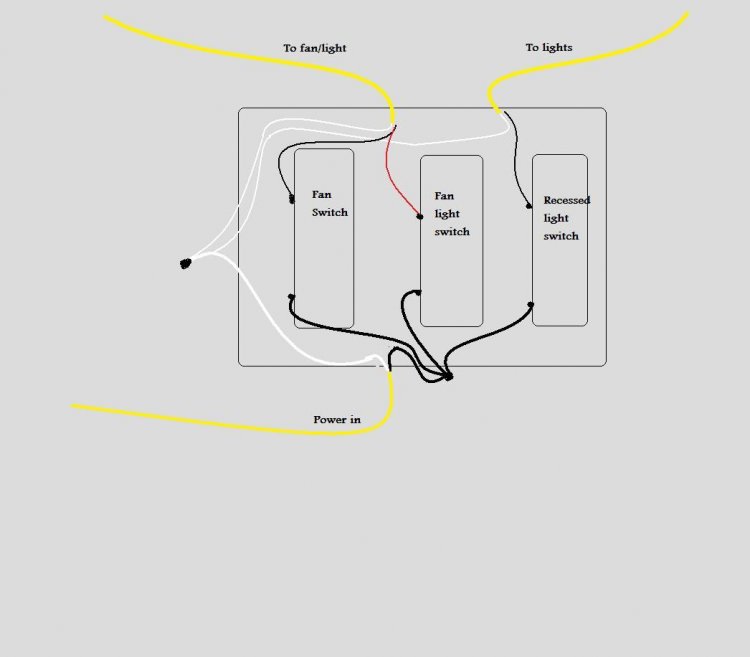

    Attached Images

    dfacer's Avatar
    dfacer Posts: 5, Reputation: 1
    New Member

    #3

    Mar 4, 2010, 12:55 PM

    Thanks Harold, That helped a lot.
