    Powering a set of 3 way switches
    Hi All,

    I will be doing a kitchen remodel soon and I'm preparing my lighting diagram.

    I will have (2) 3-way switches side by side, each controlling a set of lights with respective 3-way switches at the end of each run.

    I will need to have power come into the 3-way switches but I'm not sure how to wire up the switches with the incoming power. My guess is that I would use pigtails off the main power wire to each of the switches but since I'm not an electrician I don't want to assume anything.

    If I'm correct, once I have power to the first two switches, wiring the lights should be easy and there are lots of diagrams out there that show 3-way switch to the lights to the end of run 3-way switch.

    Any advice will be greatly appreciated!!

    Tracie
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Oct 28, 2009, 06:43 PM

    ..

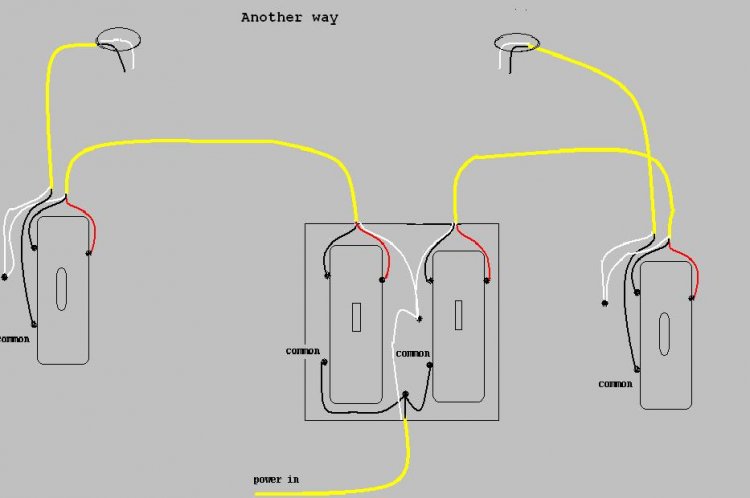

    Attached Images

    tesleen2025's Avatar
    tesleen2025 Posts: 2, Reputation: 1
    New Member

    #3

    Oct 31, 2009, 02:26 PM

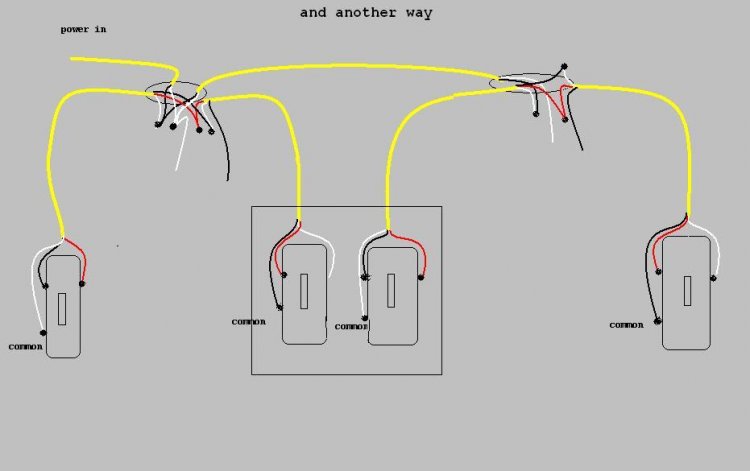

    Wow! That was exactly what I needed. Second diagram fits perfectly. Glad I asked since it's not quite what I pictured it being.

    Thank you!
    Tracie
