    Is it possible to pigtail from power source at fixture to wire two switches
    I have a light fixture in my mud room that is currently fed from a switch on the outside of the room. Is it possible to pigtail from the power at the fixture to install a second switch to control that fixture, as well as wire a new switch to control a new second fixture.

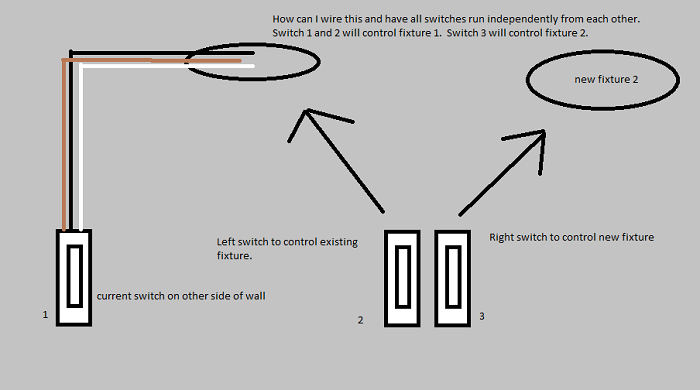

    I've attached a diagram of what I have going on.

    Thanks.
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Aug 26, 2013, 02:39 PM

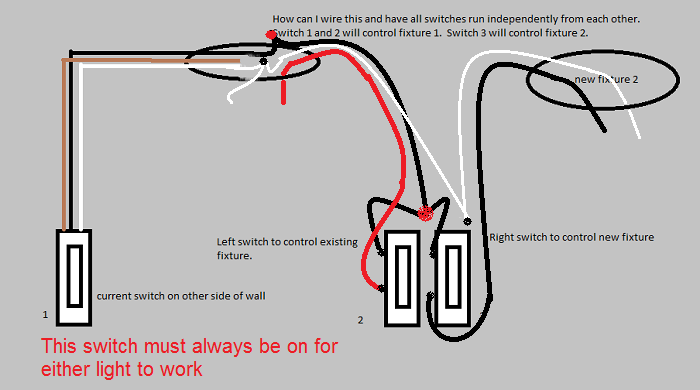

    This is assuming power is being fed to the existing switch and not to the light fixture.
    Attached Images

    alpine944's Avatar
    alpine944 Posts: 3, Reputation: 1
    New Member

    #3

    Aug 26, 2013, 03:27 PM
    Yes, power is being fed to the existing switch. If the switch must always be on, then how do I turn off the fixture? Thank you for the response...
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #4

    Aug 26, 2013, 03:53 PM
    Quote Originally Posted by ;
    how do I turn off the fixture?
    With the new switch you are installing.
    If you want the existing switch and the new switch you are installing to turn the first light on and off you must replace them with 3-way switches and run 4-wire cable from the existing switch to the light and 4-wire cable from the light to the new switch.
    alpine944's Avatar
    alpine944 Posts: 3, Reputation: 1
    New Member

    #5

    Aug 27, 2013, 11:26 AM
    Yes, that's exactly what I'm looking to do. Control the first fixture with the existing and one new switch, as well as power the second new switch and fixture independently. Thanks for the info
