    One switch
    How to wire 2 or more lights to one switch
    Perito's Avatar
    Perito Posts: 3,139, Reputation: 150
    Ultra Member

    #2

    Jun 27, 2009, 07:29 PM
    You wire the two lights "in parallel". The "line" (live wire) goes through the switch (black wire, usually) and then to the dark terminal on one lamp and then to the dark terminal on the second lamp. The "neutral" (white wire) goes directly to the light terminal of one lamp and then to the light terminal of the second lamp.
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #3

    Jun 27, 2009, 07:56 PM

    ..

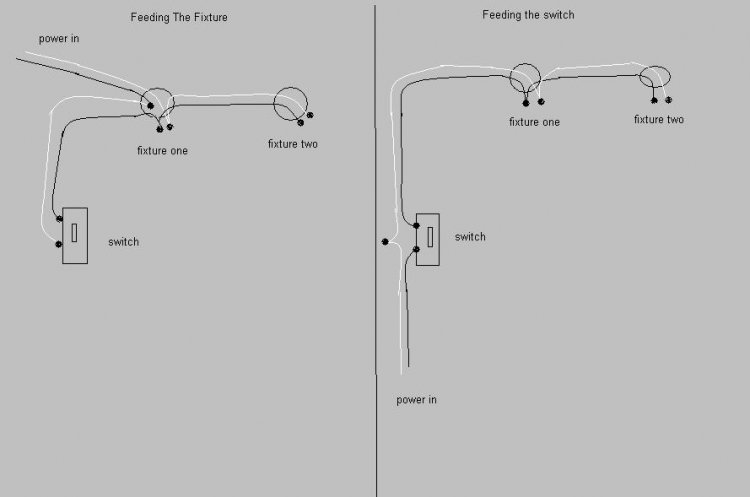

    Attached Images
