    How to wire three switches in a line off one power source?
    I have built a new 2 piece bathroom and I have 3 separate switches all right beside each other and I want to power all 3 from one feed. (one is for the bathroom light, one is for the fan and the other is the hall light) How do I wire them so that they all work independently?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Apr 1, 2011, 05:07 PM

    ..

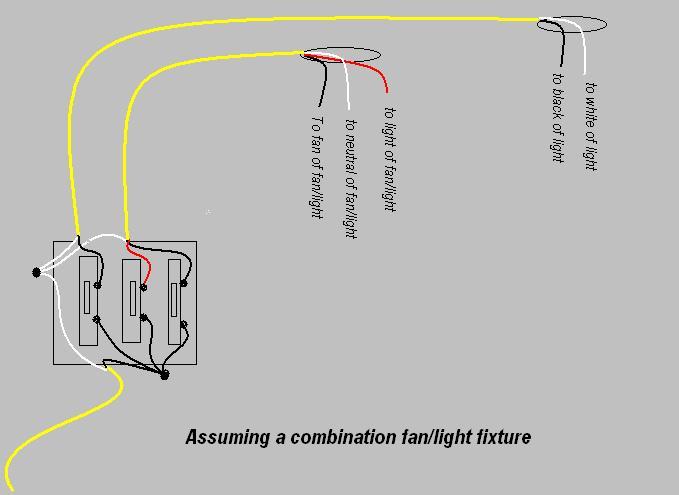

    Attached Images
