    How do you get the wires pushed into a p&s rocker switch
    I am trying to replace 2 rocker switches at my front door. How do I push the wires back into the new switch? Is there a special tool or something?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Jan 3, 2013, 12:23 PM
    You strip back the insulation. Most switches have a strip gauge embossed on the switch. Then push the wire into the hole. This assumes solid, not stranded wire.
    This type of connection is known to develop bad connections over time. Better to put wires under screw terminals.
    orange3369's Avatar
    orange3369 Posts: 10, Reputation: 1
    New Member

    #3

    Jan 3, 2013, 01:36 PM
    Quote Originally Posted by hkstroud View Post
    You strip back the insulation. Most switches have a strip gauge embossed on the switch. Then push the wire into the hole. This assumes solid, not stranded wire.
    This type of connection is known to develop bad connections over time. Better to put wires under screw terminals.
    The old wires were not stripped, does that matter? This rs does nt have a hole. It has fins that cut into the insulation!
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #4

    Jan 3, 2013, 01:58 PM
    Show pic of new switch or give model number.
    orange3369's Avatar
    orange3369 Posts: 10, Reputation: 1
    New Member

    #5

    Jan 3, 2013, 07:08 PM
    Quote Originally Posted by hkstroud View Post
    Show pic of new switch or give model number.
    Pass and seymoreCAT NO.SCO-70
    Kyle_in_rure's Avatar
    Kyle_in_rure Posts: 341, Reputation: 10
    Full Member

    #6

    Jan 3, 2013, 07:38 PM
    I can't answer your question, but I think you meant Pass and Seymour. not Seymore.

    Just to help people who might answer your question.
    orange3369's Avatar
    orange3369 Posts: 10, Reputation: 1
    New Member

    #7

    Jan 3, 2013, 08:27 PM
    Quote Originally Posted by kyle_in_rure View Post
    i can't answer your question, but i think you meant pass and seymour., not seymore.

    Just to help people who might answer your question.
    Thanks! Guess I need to spell check! Lol
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #8

    Jan 4, 2013, 08:11 AM

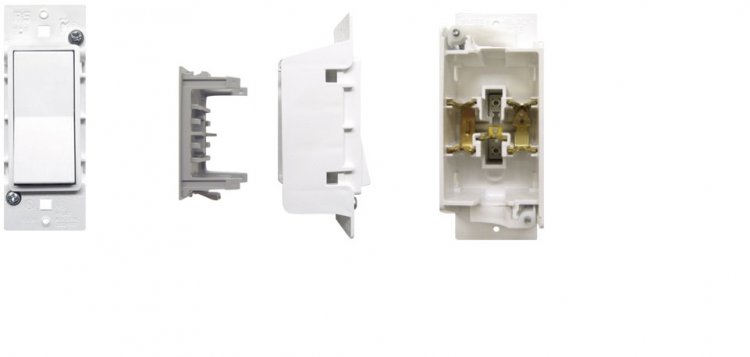

    It appears that that switch is designed for mobile homes and does not require installation be in a fire rated box. It appears that the switch is disassembled and the wiring connections are made inside. Apparently the wires are forced into the connection slots when the back is reinstalled. I'm only guessing, can only tell so much from pictures.
    Attached Images

    orange3369's Avatar
    orange3369 Posts: 10, Reputation: 1
    New Member

    #9

    Jan 4, 2013, 01:41 PM
    Quote Originally Posted by hkstroud View Post
    It appears that that switch is designed for mobile homes and does not require installation be in a fire rated box. It appears that the switch is disassembled and the wiring connections are made inside. Apparently the the wires are forced into the connection slots when the back is reinstalled. I'm only guessing, can only tell so much from pictures.
    So, maybe the back is what pushes the wires snug? Tried using plyers but no luck with those! Guess I'll try old switch with some old wire to see if that will work. Thanks
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #10

    Jan 4, 2013, 02:49 PM
    They are like the connectors you use on trailers, the wires are forced through a slot and it cuts into the wire. I would get a regular old work box and a new Decora switch and eliminate the entire setup.
    orange3369's Avatar
    orange3369 Posts: 10, Reputation: 1
    New Member

    #11

    Jan 4, 2013, 09:27 PM
    Thanks guys! Neighbor fixed it and next I will be replacing all switches!
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #12

    Jan 4, 2013, 09:32 PM
    Well, you could tell us what he did.
