jenm107 · Feb 8, 2013, 11:28 PM

I can't rember how to wire my fan swich and capacitor back up to fan. I have a light dimmer swich for the lights and fan runs only by the chain. The fan swich has a yellow wire from the middle of the swich 1 to top #3 red wire from middle Lto capacitor, black wire from middle 3 and yellow wire from middle 2 to capacitor and the capacitor has red white yellow on on side with white open and other side blue free. The celiling fan wires are at the swich on the left side toop is white middle purple and bottom is blue the other side is top blue middle blue and bottom white coming down from celiling is purple white 2 blue black and red

jenm107 · Feb 9, 2013, 01:04 AM

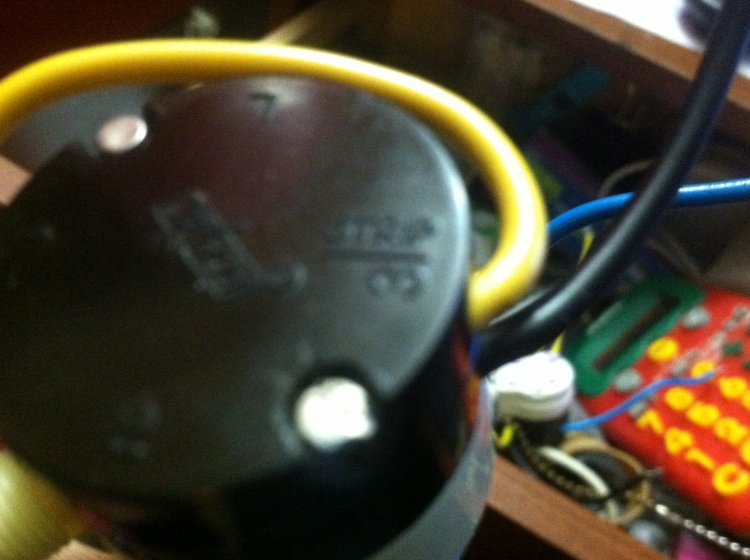

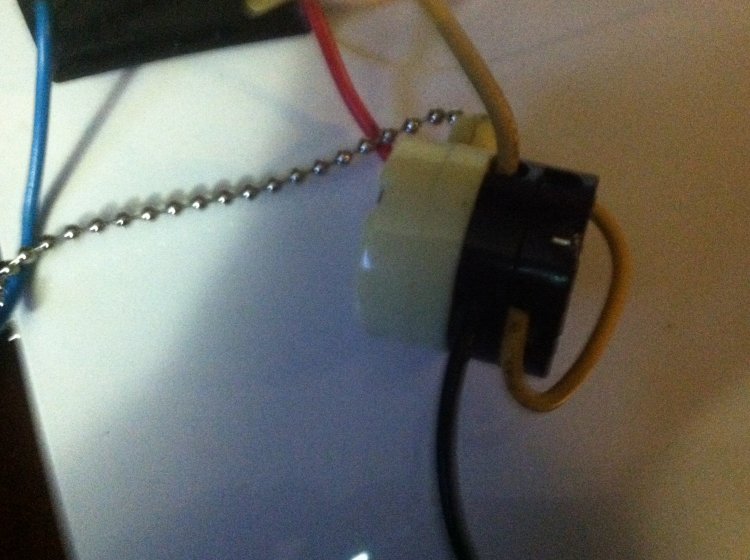

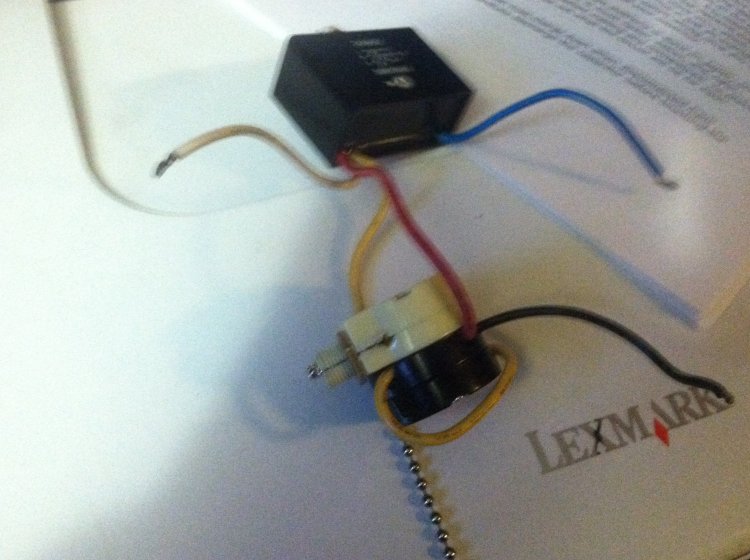

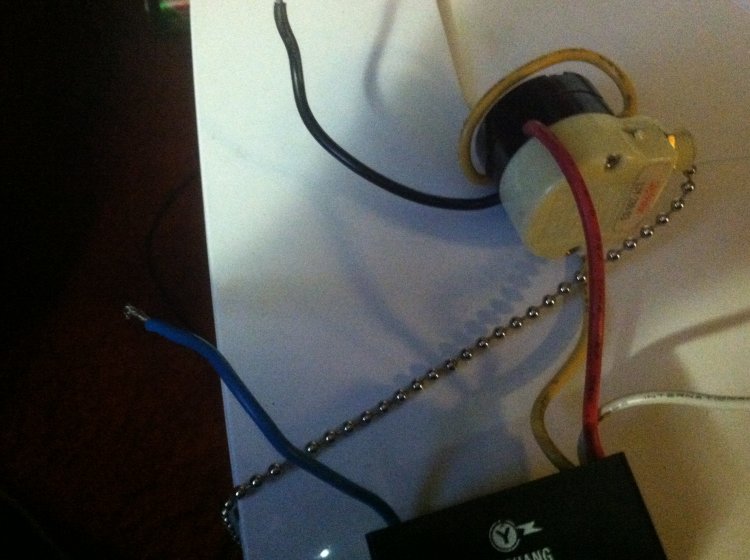

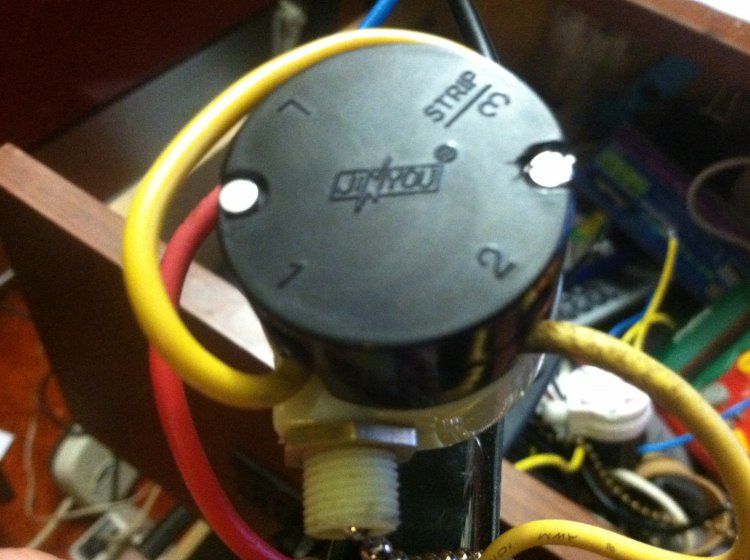

Here are some pics I have to may be help you so you can help me better the last pic kind shows what I mean when I say middle the balck wire is in the middle and there are the openings L,1, and 2 on tp have no wires
