Please help wiring 3 wire ac fasco motor
Dear All.

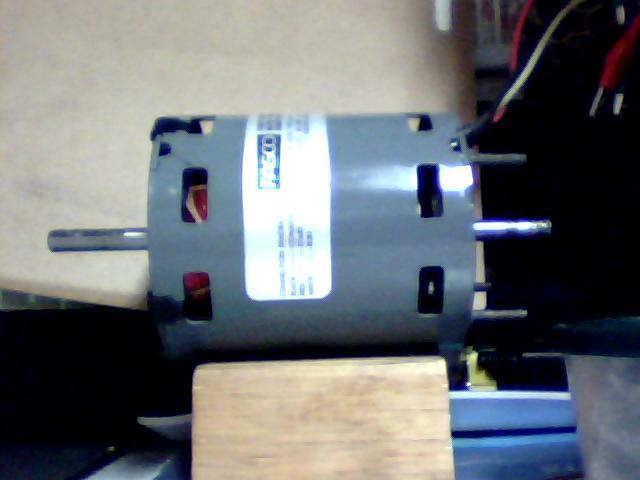

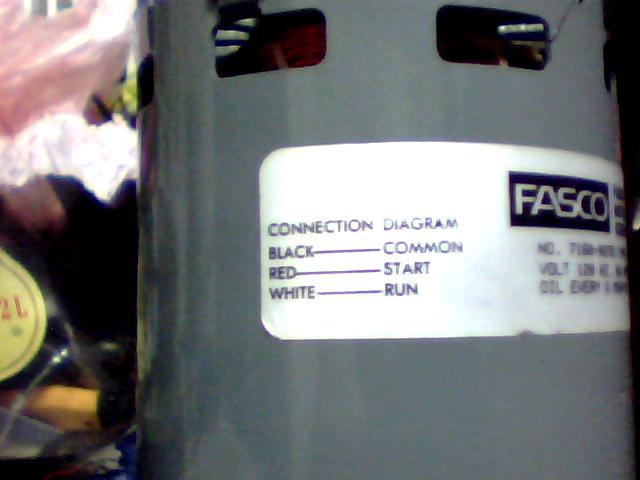

I have this motor from the blower( too old but never used).and not find this model on internet. Please see the picture Thank you. red + black = appr. 12 mhenry white + black = appr. 15 mhenry Please could you help me to wiring this motor with schema diagram(for easy to understand) and if must to use with capacitor please tell me the value of capacitor.Thank you so much. |
||||
