    Ceiling fan/ light switch from 2 locations
    HELP! I am trying to install a ceiling fan with light that can be switched from 2 different locations. Currently we have our power source (14-2) running to a Harbor Breeze split switch. From there we have 14-3 wire running to the fixture and then another 14-3 wire running to the 3 way switch. Not sure what our wiring connections should be at each location to make everything work properly.
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Jul 18, 2009, 10:23 PM

    Is the Harbor Breeze switch a 3 way switch?
    HelpinHere's Avatar
    HelpinHere Posts: 1,062, Reputation: 144
    Ultra Member

    #3

    Jul 18, 2009, 10:32 PM

    Hmm...

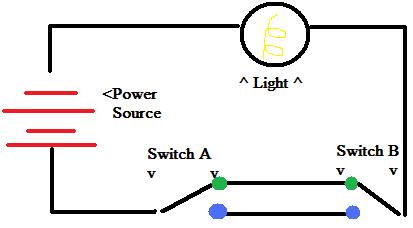

    Here is a basic, and I mean REALLY basic, circuit diagram on how to wire a two switch light.

    Name: CircuitDiagram.jpg Views: 11795 Size: 11.7 KB

    Basically, when both switches are "up" (indicated by green) then it makes a complete circuit on the first connector. When both switches are "down" (indicated by blue) they make a complete circuit with the second connector. When one is up and one is down, the circuit is incomplete, cutting off power to the fan/light.
    This is just a basic guide to start you off.

    PS: YAY for do-it-yourself-ers!
    EDIT: Re-uploaded "fixed" image.
    lissa7780's Avatar
    lissa7780 Posts: 3, Reputation: 1
    New Member

    #4

    Jul 19, 2009, 07:18 AM
    Good question... I'm not sure if it is or not (honestly, I guess I didn't even think that the HB switch also had to be a 3 way). We moved the location of our ceiling fan, so I don't have the box for the switch. It was originally set to switch in one location now it's placed to switch in 2 locations. We get the concept of what NEEDS to happen, just can't figure out how to MAKE IT happen.
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #5

    Jul 19, 2009, 07:29 AM

    The HB switch must be 3-way. If 3 way it will have 3 terminals (or wire leads). That's 3 terminals for the light side and 3 for the fan side. You can set this up with regular 3 way switches if you would like. Two 3 ways for light and 2 for fan. You would need two 3 wire cables between switches. You can use single pole switch for fan and 3 way switches for light with existing cables.
    lissa7780's Avatar
    lissa7780 Posts: 3, Reputation: 1
    New Member

    #6

    Jul 19, 2009, 07:37 AM
    We wanted to be able to operate the fan and light independently with dimmers. The current switch is a split dimmer. Do they make 3 way split dimmer switches or do we now need to buy 2 separate 3 way dimmers?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #7

    Jul 19, 2009, 07:41 AM

    Don't know. Fan should not be on dimmer unless switch is designed for fan. Regular 3 way dimmers for light is available. I can show you wiring diagram if you can find switch.
    ceilingfanrepair's Avatar
    ceilingfanrepair Posts: 5,733, Reputation: 109
    Uber Member

    #8

    Jul 21, 2009, 12:30 AM

    They don't have 3 way fan switches, that I know of. Just 3 way light dimmers.
