    3-Way Switch
    Replaced two old (1964) 3-way switches that never worked right with two new 3-way lighted rocker switches. The light is a outdoor spot light.

    Downstairs switch has a pair of black and white wires wired together in a cap. Then 1 white and 1 red travelers (I assume) to the brass screws and 1 black wire to the black screw.

    Upstairs has only 1 red, 1white and 1black wires coming into the box. I set them up the same way as downstairs 1white 1 red for travelers to the brass screws and the black wire to the black screw.

    Now here is the problem.

    Top switch on = Control of on and off at the downstairs switch.

    Top switch off = No control of downstairs switch

    Bottom switch on = Control of on and off at the upstairs switch.

    Bottom switch off = No control of upstairs switch.

    Thanks for any help, Bob
    hfcarson's Avatar
    hfcarson Posts: 1,003, Reputation: 49
    Ultra Member

    #2

    Dec 17, 2013, 06:07 AM
    You're close... try swapping the white and black wires on each switch...
    Work on only one switch at a time and then test...
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #3

    Dec 17, 2013, 06:37 AM
    3-way switches that never worked right
    Probably the error of the person who installed the old switches.

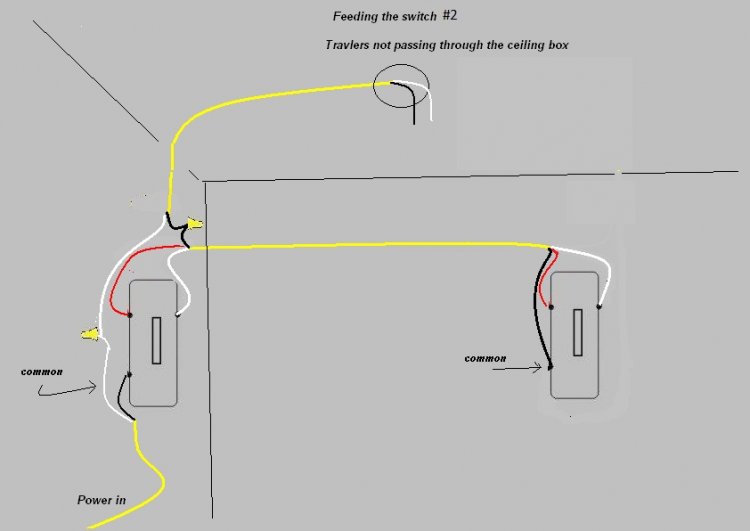

    Black of 2-wire cable bringing power to the downstairs switch should be connected to common of switch. White of 2-wire cable bringing power to downstairs switch should be connected to white of 2-wire cable going to light. Check to insure that those connections are correct.

    If you get those connections correct, after that you can't go wrong..
    Attached Images

    hfcarson's Avatar
    hfcarson Posts: 1,003, Reputation: 49
    Ultra Member

    #4

    Dec 17, 2013, 07:44 AM
    Hk... nice!
