    Threaded Screw
    Is there a fitting where you can drive it into wood. But about 1/2
    Of thread is protruding so you can put a nut on it or wing nut.
    Opposite to a female tee nut that you tap into wood?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Oct 10, 2011, 03:49 PM
    Exactly what are you trying to do?
    pastor1189's Avatar
    pastor1189 Posts: 1,538, Reputation: 3
    Ultra Member

    #3

    Oct 11, 2011, 03:16 AM
    To attach a metal plate that has pre-drilled holes. That way
    I could attach and detach it with simplicity
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #4

    Oct 11, 2011, 05:03 AM

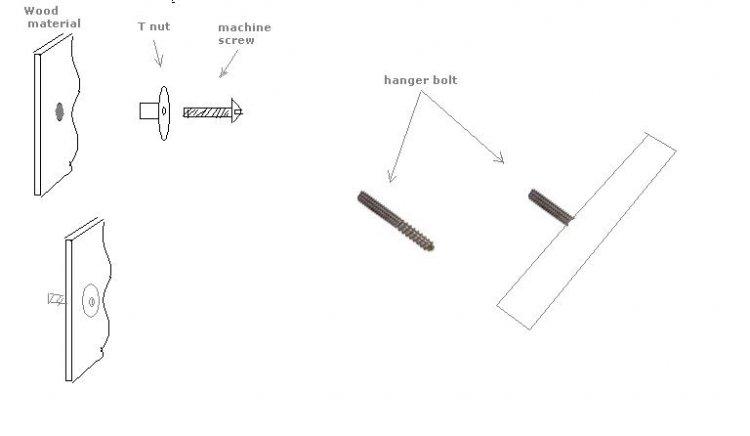

    Best approach will depend on thickness of wood material you are using. If the wood is fairly thin, such as 1/2 or 3/4", install T nut through the opposite side, run in a screw with head on the T nut side.
    Use an adhesive, such a CA glue (Super glue or Crazy glue) to lock threads in place. If T nut needs to be flush, you can counter bore for T nut and screw head or grind away the screw head.
    If the wood material is thick enough, drill a pilot hole and install a hanger bolt. A hanger bolt is a fastener that has a wood thread on one end and a machine thread on the other.
    Attached Images

    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #5

    Oct 11, 2011, 12:16 PM
    A hanger bolt should work but you need to be careful with the weight loading. It has a screw thread on one end and a machine thread on the other. Use a drill to make a pilot hole, slip a washer over the end and run a machine thread nut down. The nut will bottom out and run the screw thread in. As an alternate, you can start the screw end and then use a pair of channel locks but be careful to not mess up the threads.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #6

    Oct 12, 2011, 06:22 AM
    Quote Originally Posted by ;
    --------------------------------------------------------------------------------

    Is there a fitting where you can drive it into wood. But about 1/2
    Of thread is protruding so you can put a nut on it or wing nut.
    opposite to a female tee nut that you tap into wood?
    Yes there is. Go into any plumbing store and ask for wood screw closet bolts.(see image) Good luck, Tom
    Attached Images
